Overview

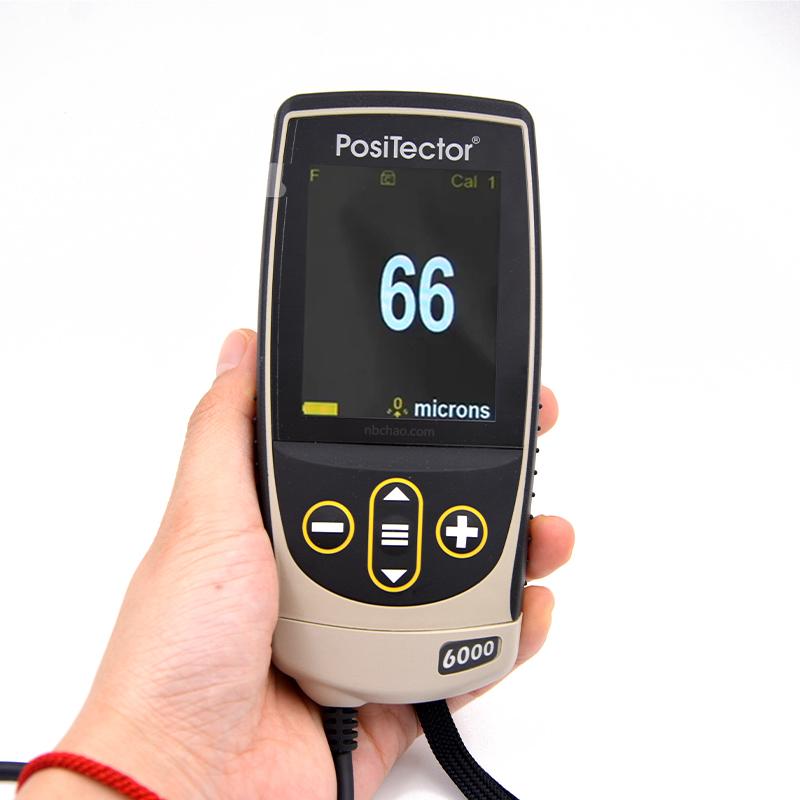

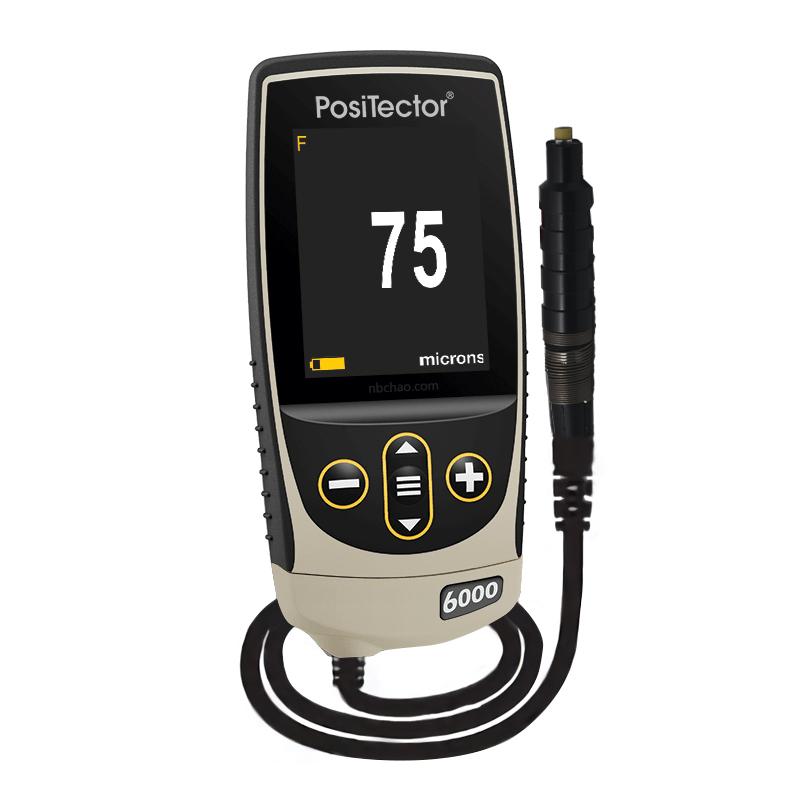

The Defelsko PosiTector 6000 F0S1 Eletroplating thickness measurement instrument is a professional platings thickness measuring instrument designed according to ISO and ASTM standards. It uses a 0 ° miniature Probe to perform Coating thickness measurement on small workpieces or small measurement areas. It is a magnetic Eletroplating thickness measurement instrument. It is used for the measurement of Coating thickness on ferrous metal substrates through an external F Probe. It is accurate, reliable and powerful. It supports data transfer storage and free replacement of Probe.
Features
1. With 0 ° Micro Probe, suitable for small workpieces or small measurement areas
2. Measurement principle of magnetic for nonmagnetic coatings on ferrous metal substrates
3. High Accuracy measurement, error range +/- 3%, resolution 0.1μm

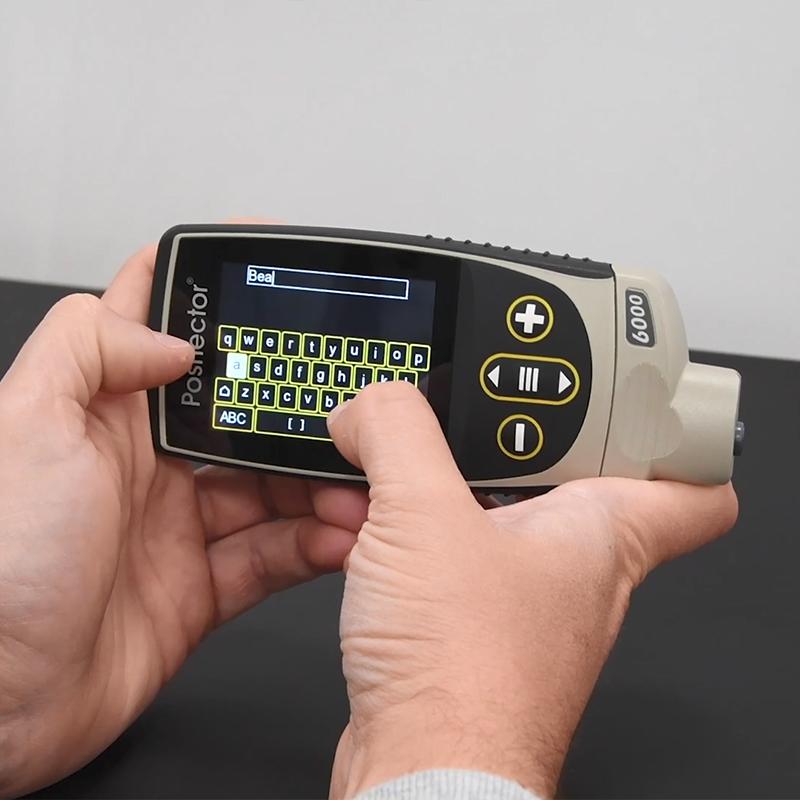

4. Equipped with 2.8-inch color Touchscreen, intuitive operation
5. Data storage and USB interface transfer
6. Protection Rating IP65, adaptable to various environments
7. Measurement speed up to 60 + readings per minute

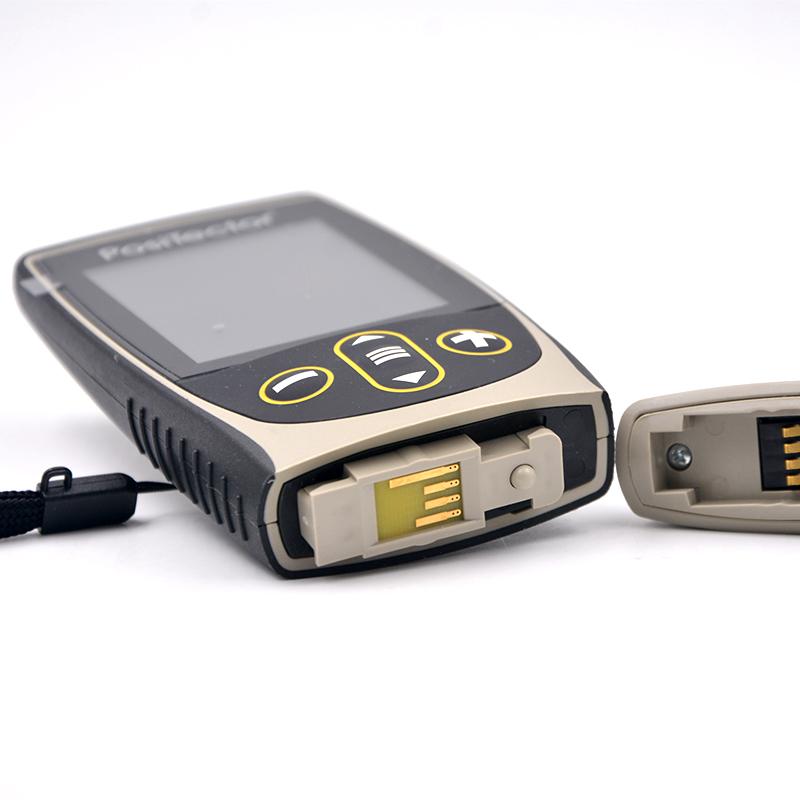

8. Probes can be replaced freely to expand application flexibility
Principle
The PosiTector 6000 F0S1 uses the principle of magnetic Induction for Coating thickness measurement. Through external F Probe, the thickness of nonmagnetic coatings on ferrous metal substrates is detected, and the magnetic field change is used to accurately calculate the Coating thickness value.
Applications
Coating thickness measurement on ferrous metal substrates
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Connect the F Probe to the instrument
3. Power on and select the system language (Chinese or English).
4. Perform measurements on nonmagnetic coatings on ferrous metal substrates
5. View measurement data through Touchscreen
6. Use the USB interface to transfer data to the computer
7. Data analysis with PosiSoft software suite
Notice
• Only for nonmagnetic coating measurements on ferrous metal substrates
Probe in good contact with the measurement surface
• Periodically calibrated for Measurement accuracy
• Avoid use in extreme temperatures or Humidity environments
• Clean Probe After Use and Store Properly
