Overview

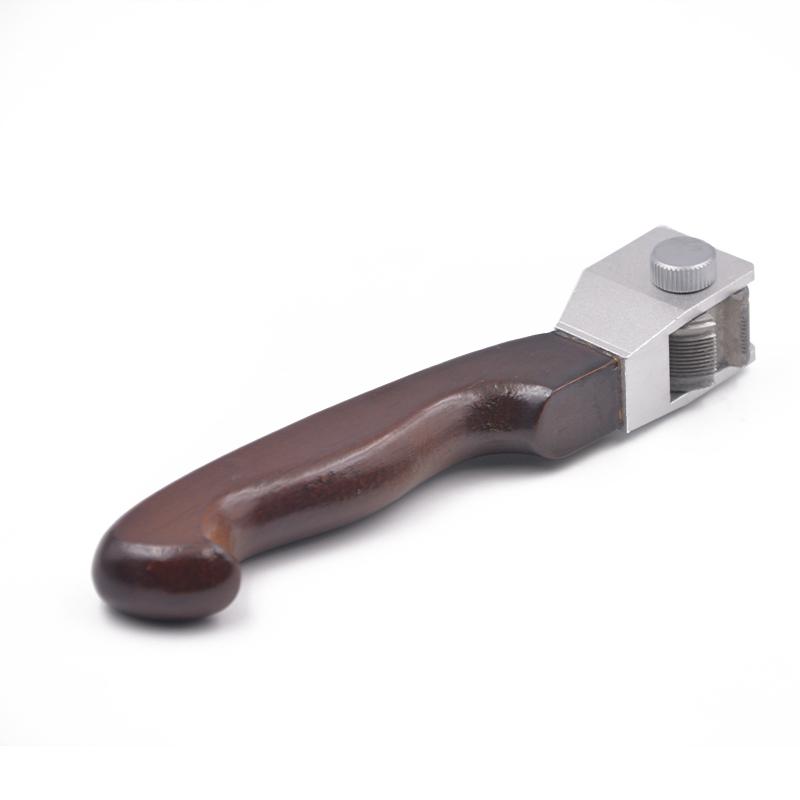

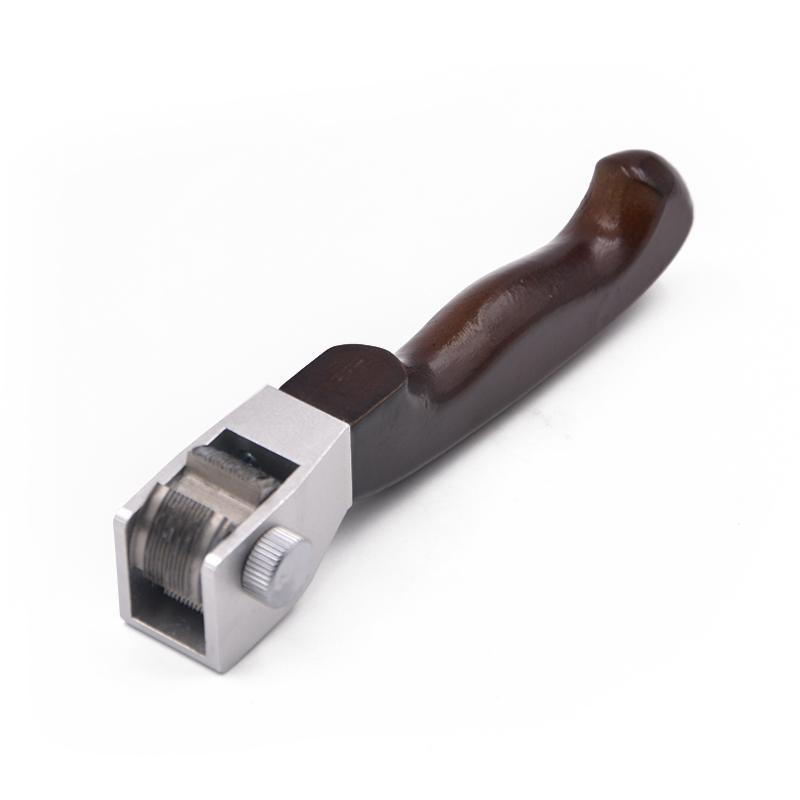

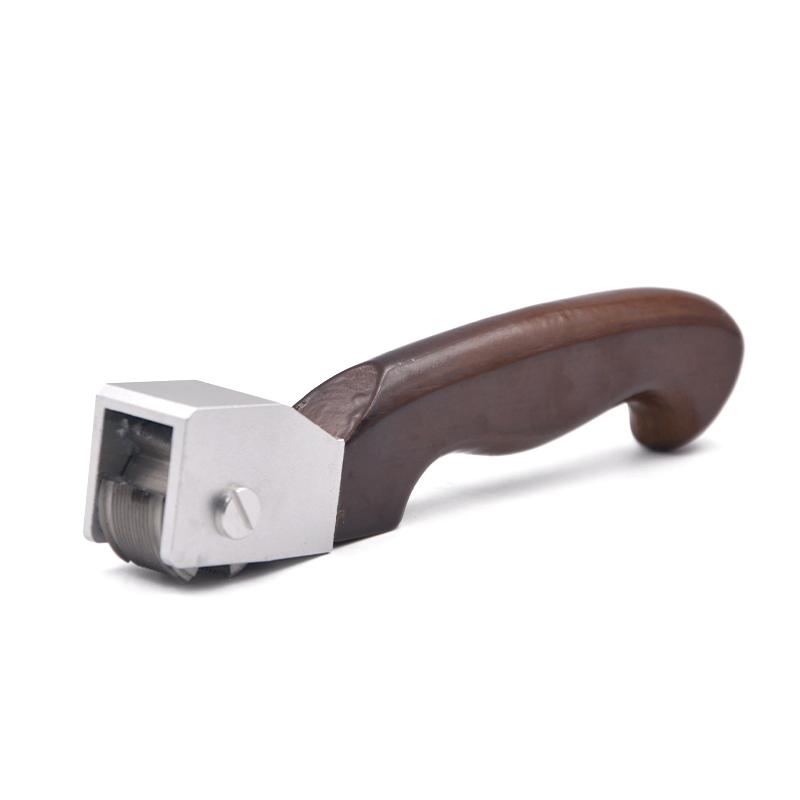

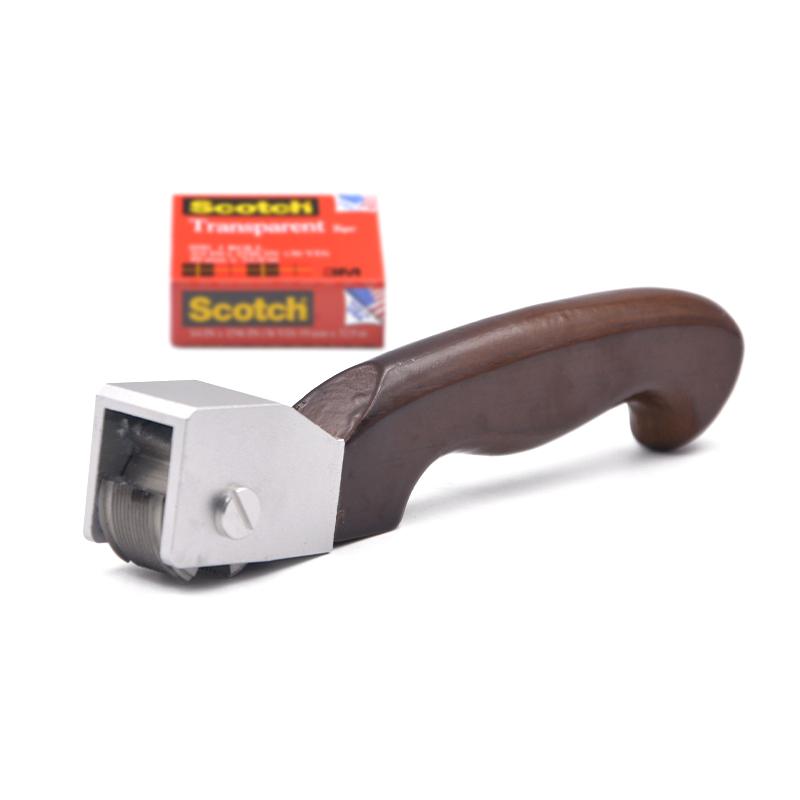

PUSHEN HGQ 1 * 10 full multi-blade Cross Hatch Cutter is a paint film Cross Hatch Cutter with 11 teeth and 1mm tooth spacing. The product is designed with 6 cutter faces circumferential and multi-faceted teeth, which is suitable for hard substrates less than 60μm.
Features
1. The number of teeth is 11 teeth, the spacing is 1mm, and the accuracy is high.
2. The cutter tooth adopts 6 cutter face circumference multi-face design, Abrasion Resistance is strong, long service life.
3. Suitable for hard substrate specimens, film thickness range 0~ 60µm.
Principle
Cross Hatch Cutter measures the film adhesion to the substrate by uniformly drawing a grid of certain Dimensions and evaluating the integrity of the film in the grid. It is mainly used for the determination of adhesion by the Coating cross-cut method, which is not only suitable for laboratories, but also for construction sites under various conditions.
Applications
Coating cross-cut adhesion determination, laboratory testing, construction site testing
Standards
GB/T 9286、ISO 2409、ASTM D 3359
Steps
1. Prepare the hard substrate to ensure that the film thickness is in the range of 0 to 60 µm.
2. Use Cross Hatch Cutter to evenly draw a grid pattern on the surface of the test piece.
3. Observe and evaluate the integrity of the film in the grid.
4. Determine the adhesion of the film to the substrate according to the evaluation results.
Notice
• For hard substrate specimens only, film thickness must not exceed 60 µm.
• Check whether the cutter teeth are in good condition before use to ensure cutting accuracy.

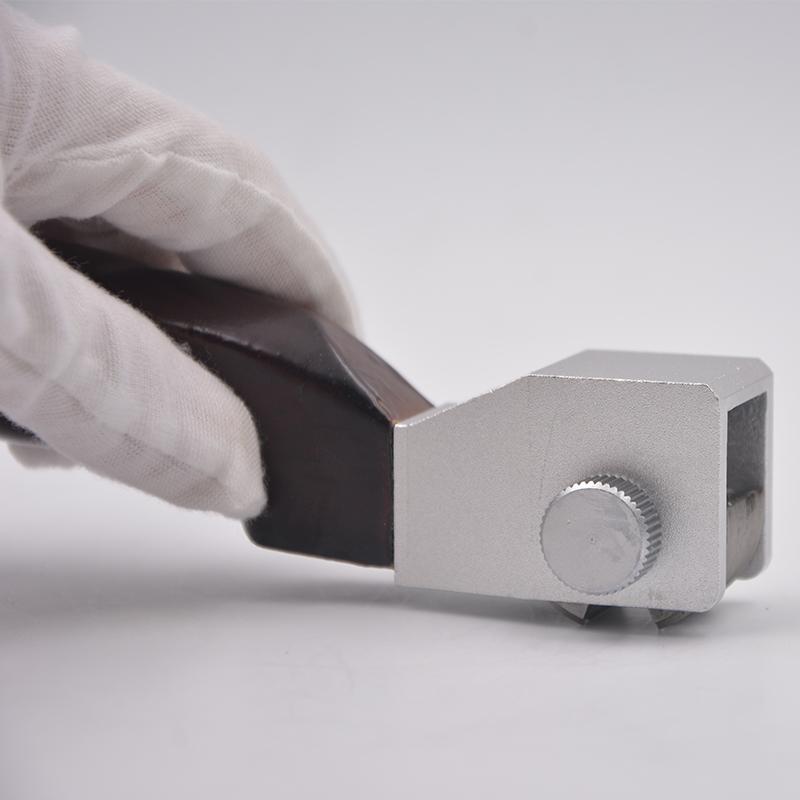

• Maintain uniform force during operation to avoid uneven scratches affecting the evaluation results.
• Suitable for laboratories and construction sites, but the operation needs to be adjusted according to environmental conditions.
