PUSHEN HGQ 2 * 10 Full Set of Multi-Blade Cross Hatch Cutter 11 Teeth 2mm Pitch Paint Film adhesion testing

Name: PUSHEN HGQ 2 * 10 Full Set of Multi-Blade Cross Hatch Cutter 11 Teeth 2mm Pitch Paint Film adhesion testing
Brand: Pushen
SKU: NB005478
Price: 184.0 USD
Availability: InStock

$ 184.00Ex works

Adopting 6 cutter face circumference multi-face cutter tooth design, the service life is significantly extended; the number of cutter teeth is 11, and the spacing is 2mm, which is suitable for hard substrate testing in the range of 60-120μm film thickness.

Model

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : Pushen

SKU : NB005478

Service :The delivery and service By NBCLab.Com

Overview

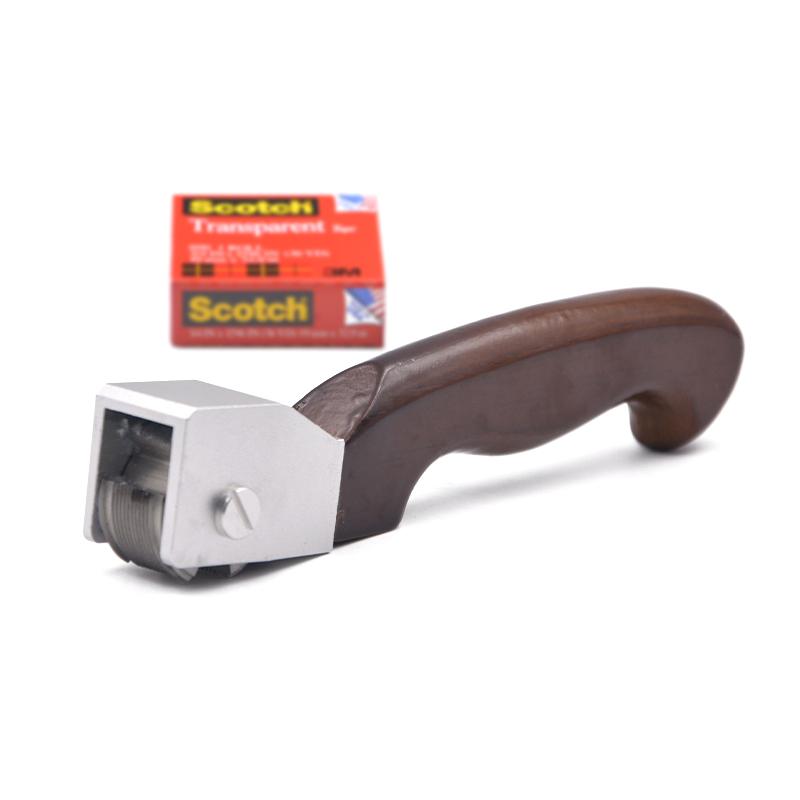

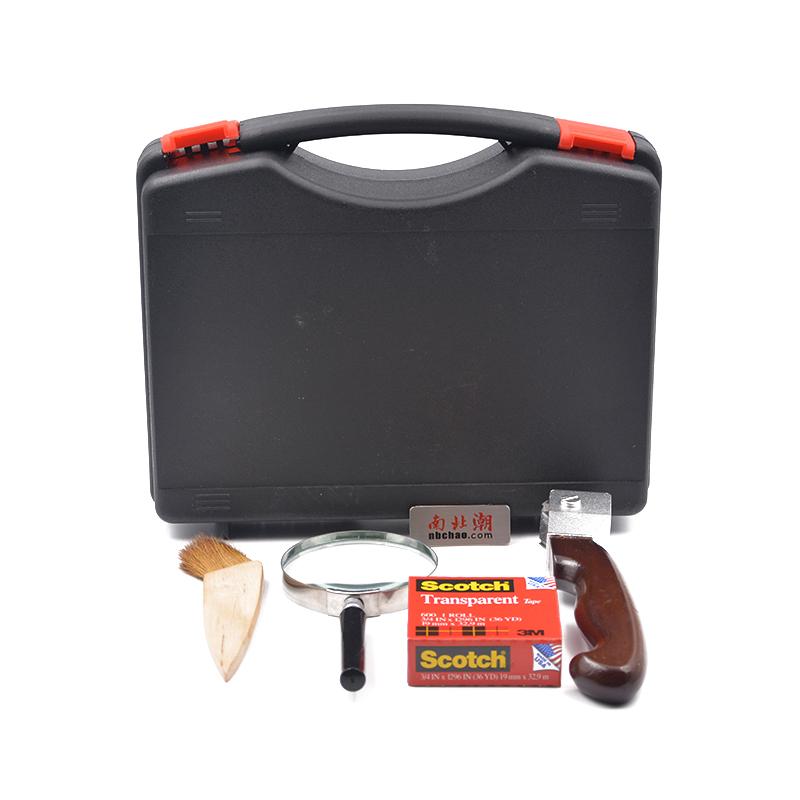

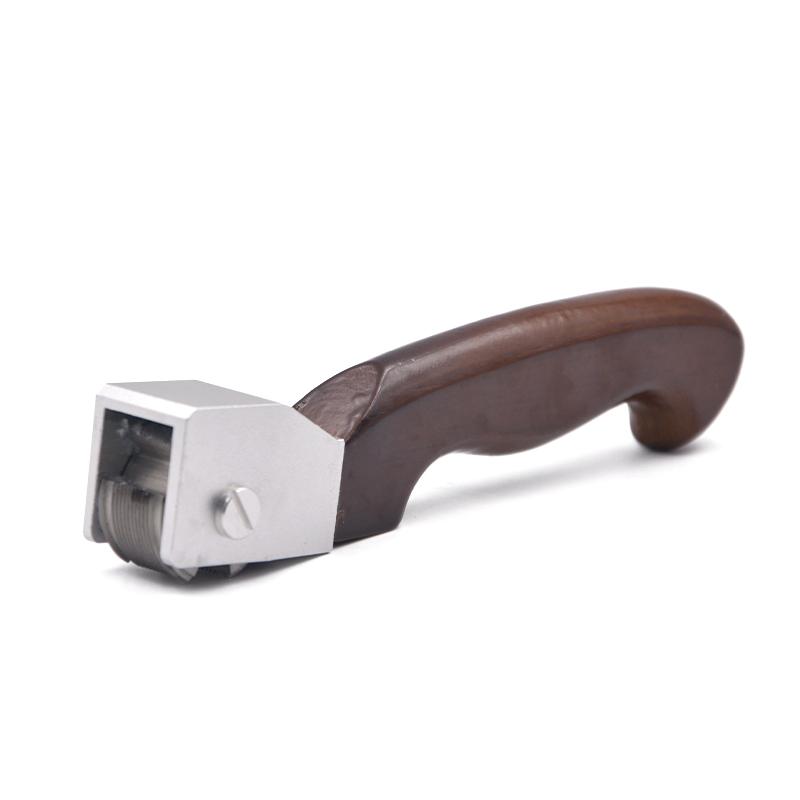

The PUSHEN HGQ 2 * 10 full multi-blade Cross Hatch Cutter is a dedicated test instrument for the determination of paint film coating adhesion. The product has 11 teeth with a 2mm pitch and is suitable for hard substrate specimens from 60 to 120 μm.

Features

1. The cutter teeth are designed with 6 cutter faces circumferential and multi-faceted 2. Long service life 3. For hard substrate specimens from 60 to 120 μm

Principle

Cross Hatch Cutter by uniformly drawing a grid of certain Dimensions, evaluating the integrity of the film in the grid to evaluate the degree of adhesion of the film to the substrate.

Applications

Coating cross-cut method - Determination of adhesion, laboratory, construction site

Standards

GB/T 9286、ISO 2409、ASTM D 3359

Number of teeth
11 teeth
Tooth spacing
2mm
application standard
GB/T 9286、ISO 2409、ASTM D 3359
Applicable film thickness environment
60~ 120μm (solid substrate)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
