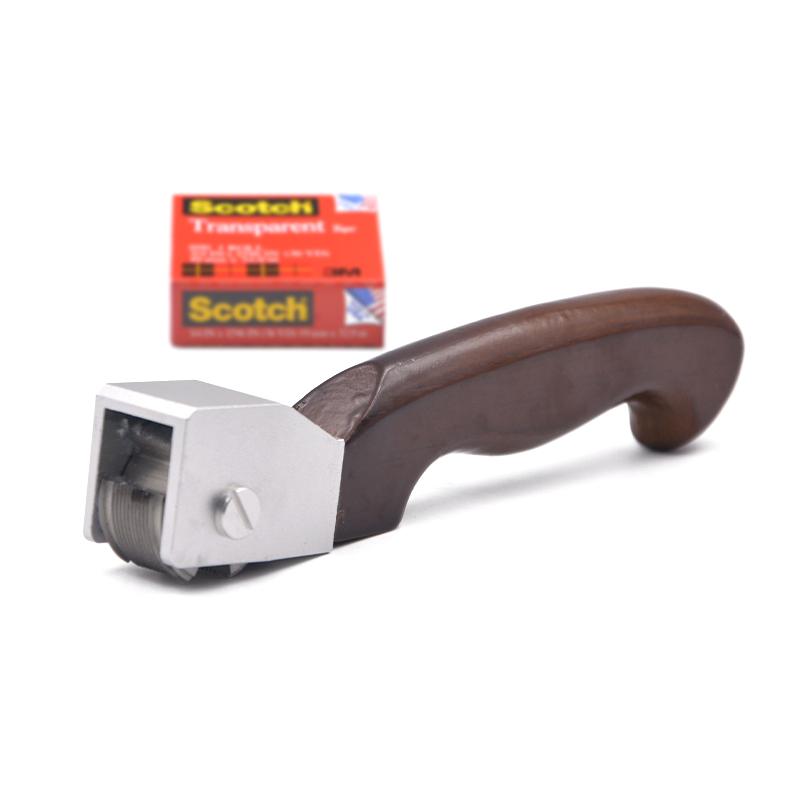

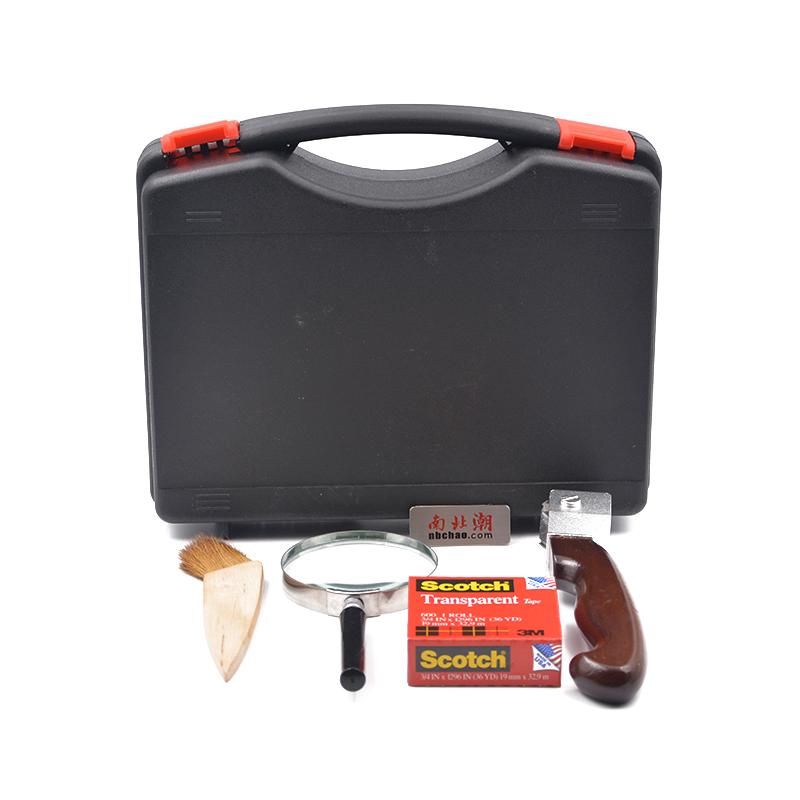

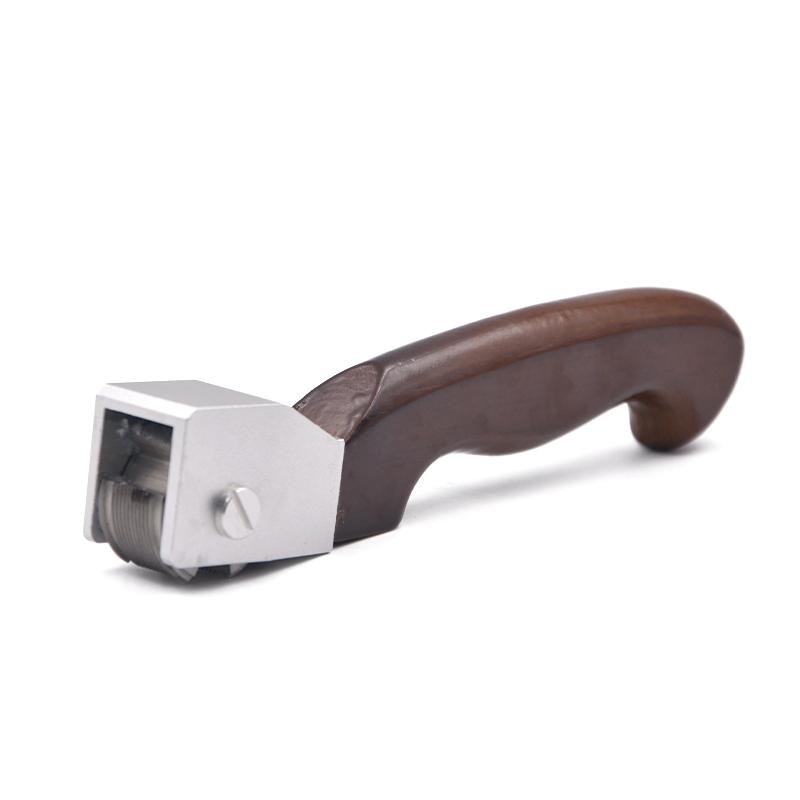

PUSHEN HGQ 3 * 5 Full Set of Multi-Blade Cross Hatch Cutter 6 Teeth 3mm Pitch Paint Film adhesion testing

Name: PUSHEN HGQ 3 * 5 Full Set of Multi-Blade Cross Hatch Cutter 6 Teeth 3mm Pitch Paint Film adhesion testing
Brand: Pushen
SKU: NB005479
Price: 184.0 USD
Availability: InStock

$ 184.00Ex works

The number of teeth 6, spacing 3mm, using circumferential multi-faceted cutter surface design, long service life, suitable for film thickness greater than 120 μ m hard substrate test cross-cut.

Model

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : Pushen

SKU : NB005479

Service :The delivery and service By NBCLab.Com

Overview

PUSHEN HGQ 3 * 5 Full Multi-Blade Cross Hatch Cutter is a Cross Hatch Cutter with 6 teeth and 3mm tooth spacing, designed to test paint film adhesion. It is suitable for hard substrate samples larger than 120μm. The teeth are designed with 6 cutter faces circumferential and multi-faceted, and have a long service life.

Features

1. The number of teeth is 6, and the spacing is 3mm to ensure uniform cross-cutting. 2. The cutter teeth are designed with a circumferential multi-faceted design to enhance durability and service life. 3. Suitable for hard substrate specimens larger than 120μm, covering a variety of testing requirements.

Principle

Cross Hatch Cutter evaluates the adhesion of the film to the substrate by uniformly drawing a grid of certain Dimensions and then evaluating the integrity of the film in the grid.

Applications

Coating cross-cut adhesion determination, laboratory testing, construction site testing

Standards

GB/T 9286、ISO 2409、ASTM D 3359

Steps

1. Align the Cross Hatch Cutter on the surface of the specimen. 2. Apply pressure evenly and draw a grid pattern. 3. Check the integrity of the film in the box. 4. Assess the adhesion grade according to the standard.

Notice

• Only for hard substrate samples larger than 120 μm. • Make sure the teeth are clean before use to avoid affecting the test results. • Apply force evenly during operation to prevent uneven cross-cutting.

Number of teeth
6 teeth
Tooth spacing
3mm
application standard
GB/T 9286、ISO 2409、ASTM D 3359
Applicable film thickness environment
Suitable for hard substrate samples larger than 120 μm
