PUSHEN HGQ 1mm Full Set Single Blade Cross Hatch Cutter Adhesion Tester 11 Teeth 1mm Pitch

Name: PUSHEN HGQ 1mm Full Set Single Blade Cross Hatch Cutter Adhesion Tester 11 Teeth 1mm Pitch
Brand: Pushen
SKU: NB005480
Price: 184.0 USD
Availability: InStock

$ 184.00Ex works

The number of teeth is 11, the spacing is 1mm, and the single-sided simple cutter head design can be used for cross-cutting experiments. Standard two cutter heads are provided for easy operation.

Model

HGQ 1mm

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : Pushen

SKU : NB005480

Service :The delivery and service By NBCLab.Com

Overview

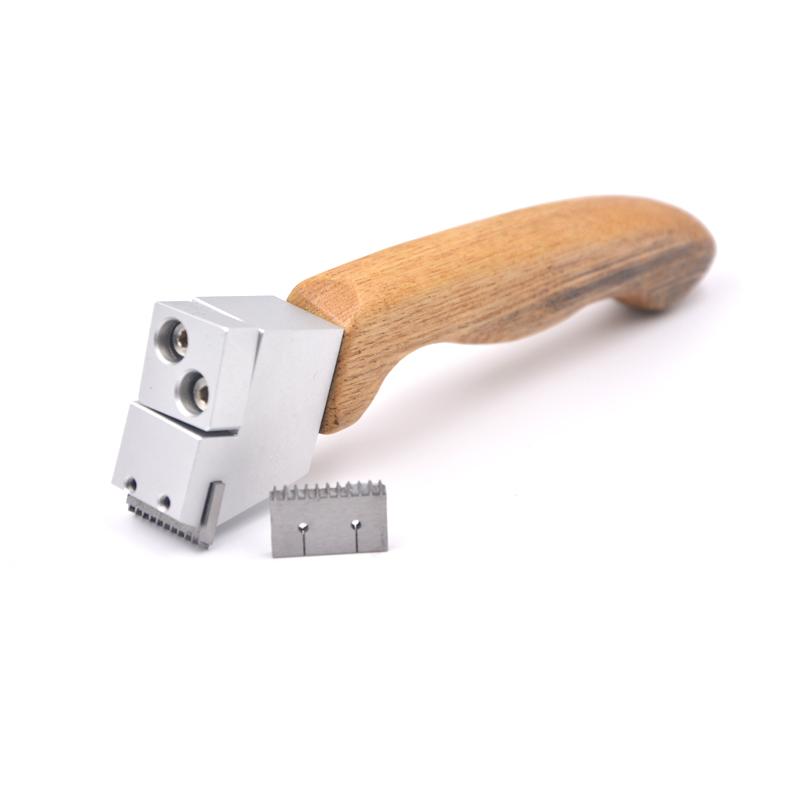

PUSHEN HGQ 1mm single-edged Cross Hatch Cutter is a Cross Hatch Cutter with 11 teeth and 1mm tooth spacing. The cutter head is a single-sided simple type, used for paint film cross-cutting experiments, and comes standard with 2 1mm single-edged cutter heads.

Features

1. The number of teeth is 11, and the spacing between teeth is 1mm to ensure accurate and uniform cross-cutting. 2. The cutter head adopts a single-sided simple design for easy operation. 3. Standard with two 1mm single-edged cutter heads for easy replacement and maintenance. 4. The handle is made of hardwood, providing a good grip and durability.

Principle

Dimensions of the cross Hatch Cutter by uniformly drawing a square, the degree of integrity of the film in the square to determine the adhesion of the film to the substrate.

Applications

Coating cross-cut adhesion determination, laboratory, construction site

Standards

GB/T 9286、ISO 2409、ASTM D 3359

Steps

1. Prepare the film sample to be tested. 2. Use Cross Hatch Cutter to evenly draw squares on the film surface. 3. Check the integrity of the film in the box. 4. Assess the adhesion grade according to the standard.

Notice

• Make sure the knife head is sharp to avoid uneven cross-cutting. • Keep the handle stable during operation to prevent sliding. • Regularly check the abrasion of the cutter head and replace it in time. • Pay attention to environmental conditions when using at the construction site to avoid affecting the test results.

Tooth spacing
1mm
Number of teeth
11 teeth
Applicable film thickness environment
Hard substrates less than 60 μm
