PUSHEN HGQ 2mm Full Set Single Blade Cross Hatch Cutter 11 teeth 2mm pitch paint film adhesion testing

Name: PUSHEN HGQ 2mm Full Set Single Blade Cross Hatch Cutter 11 teeth 2mm pitch paint film adhesion testing
Brand: Pushen
SKU: NB005481
Price: 184.0 USD
Availability: InStock

$ 184.00Ex works

11 tooth cutter design, 2mm pitch, single-sided simple cutter head, can carry out cross-cut experiment, test coating adhesion, in line with a number of international standards.

Model

HGQ 2mm

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : Pushen

SKU : NB005481

Service :The delivery and service By NBCLab.Com

Overview

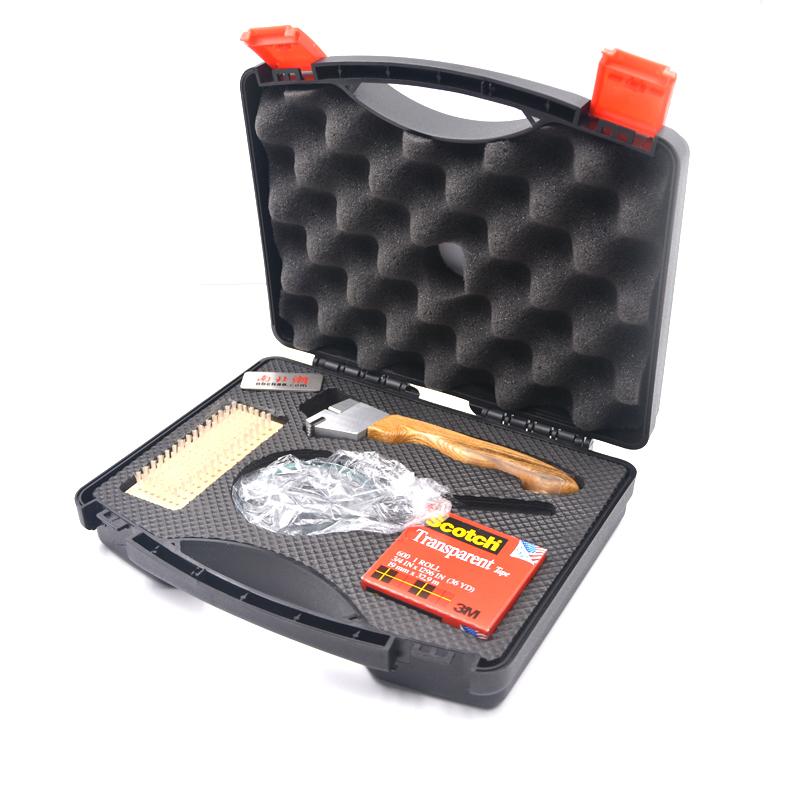

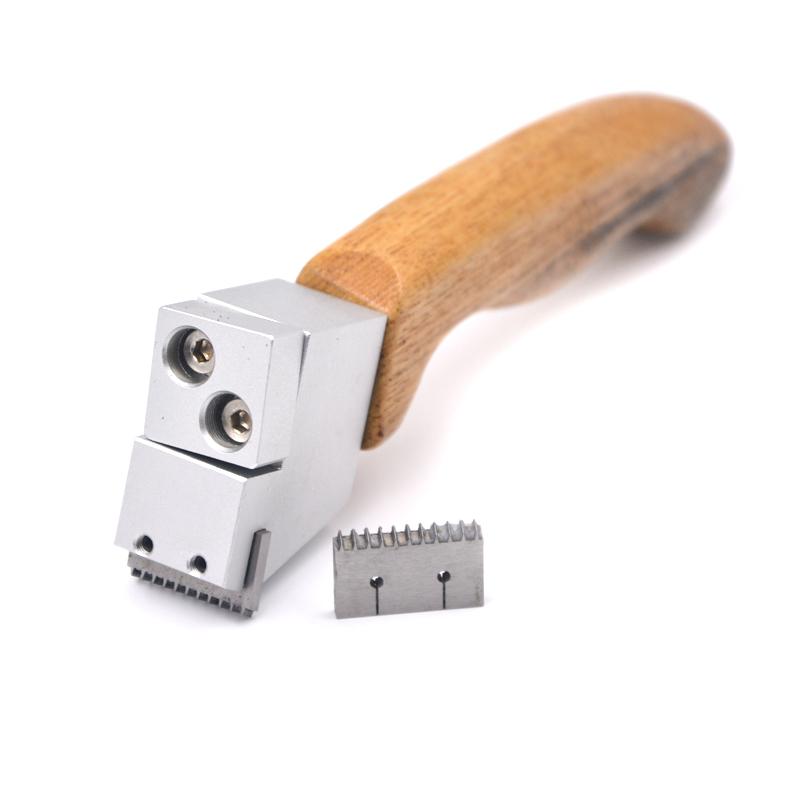

PUSHEN HGQ 2mm full set of single-edged Cross Hatch Cutter is a cross-cutting instrument with 11 teeth and 2mm tooth spacing. The cutter head is a single-sided simple type, which is used for cross-cutting experiments to test coating film adhesion. The product comes standard with 2 2mm single-edged cutter heads.

Features

1. The number of teeth is 11, with a spacing of 2mm to ensure uniform cross-cutting. 2. The cutter head adopts a single-sided simple design for easy operation. 3. Two 2mm single-edged cutter heads are standard for easy replacement and maintenance. 4. The handle is made of hardwood, providing a good grip.

Principle

Dimensions of the cross Hatch Cutter by uniformly drawing a square, the degree of integrity of the film in the square to determine the adhesion of the film to the substrate.

Applications

Coating cross-cut adhesion determination, laboratory, construction site

Standards

GB/T 9286、ISO 2409、ASTM D 3359

Steps

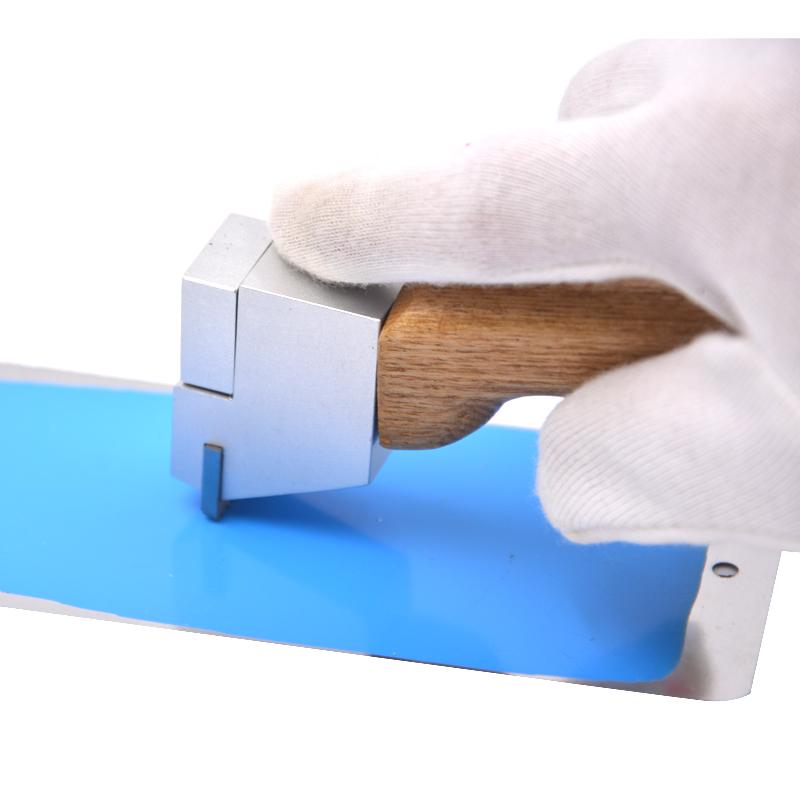

1. Prepare test samples and Cross Hatch Cutter. 2. Use Cross Hatch Cutter to evenly draw squares on the coating surface. 3. Check the integrity of the film in the box. 4. Assess the adhesion grade according to the standard.

Notice

• Make sure the knife head is sharp to avoid affecting the cross-cutting effect. • Maintain uniform force during operation to prevent coating damage. • Regularly check the abrasion of the cutter head and replace it in time. • Coating thickness range specified by the standard.

Tooth spacing
2mm
Number of teeth
11 teeth
Applicable film thickness environment
60 to 120 μm hard substrate specimens
