Defelsko PosiTector 6000 N0S1 Coating thickness Gauge Probe split eddy current

Name: Defelsko PosiTector 6000 N0S1 Coating thickness Gauge Probe split eddy current
Brand: Defelsko
SKU: NB000569
Price: 1322.0 USD
Availability: InStock

$ 1322.00Ex works

Measurement range 0-625μm, accuracy +/- 3%, 60 + readings per minute, IP65 Protection Rating and 1000 Data storage capability.

Model

Get Quote

Category : Coating Thickness Gauge

Brand : Defelsko

SKU : NB000569

Service :The delivery and service By NBCLab.Com

Overview

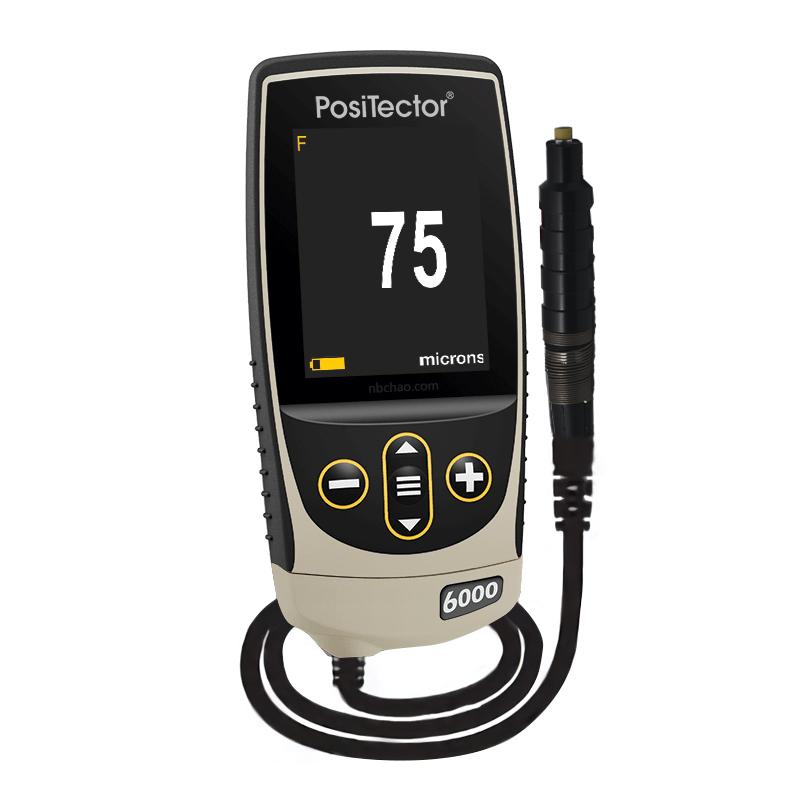

The US Defelsko PosiTector 6000 N0S1 Coating thickness gauge is a split eddy current Coating thickness gauge with a miniature 0 ° Probe, dedicated to the measurement of Coating thickness in small area workpieces or narrow areas. The instrument has 250 test Data storage functions, a large LCD screen can display measurement thickness data in real time, and the substrate for measurement is represented by F/N characters.

Features

1. Micro 0 ° Probe design for small area and narrow area measurement Data storage with 250 tests 3. Large LCD display real-time measurement data 4. Supports fast measurement of more than 60 readings per minute 5. IP65 Protection Ratings 6. Equipped with 2.8-inch Color Touchscreen 7. Support Chinese and English system languages 8. Provide USB Interface and PosiSoft Software Suite

Principle

The Coating thickness gauge uses the eddy Current Measurement principle for thickness measurement of nonconductive coatings on non-ferrous metal substrates by miniature 0 ° Probe.

Applications

Coating thickness measurement on nonconductive metal substrates

Standards

ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2

Steps

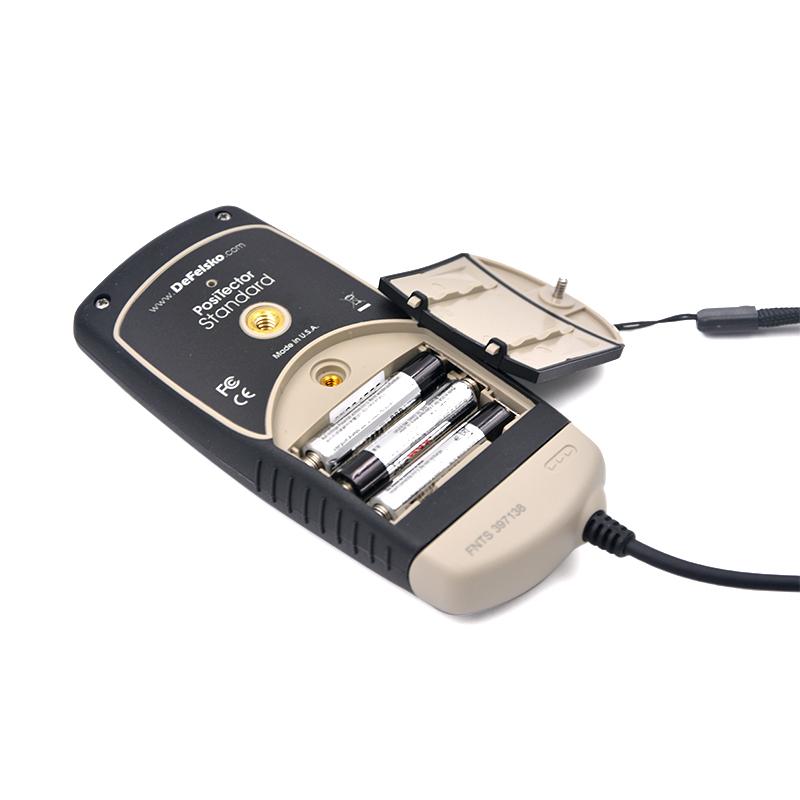

1. Install 3 AAA alkaline batteries 2. Select the system language (Chinese or English) 3. Align measurement area with N0S1 Micro Probe 4. Coating thickness measurement 5. View real-time measurement data through Touchscreen 6. Use the USB interface to connect to the computer to transfer data 7. Data analysis with PosiSoft software suite

Notice

• Only for nonconductive coating measurements on non-ferrous metal substrates (e.g. aluminum, copper) • Measurement range 0~ 625μm • Measurement error range of +/- 3% • Resolution of 0.1μm • Instrument weight 137g (without battery) • Dimension is 127 * 66 * 25.4mm • Measured data storage capacity of 1000 values • The screen image storage capacity is 100 • Need to use Defelsko calibrated STDS2, STDA2 calibrated

Data storage
1000 readings, supports 100 screen image captures
limit alarm
Audible and visual alarms
Measurement speed
60 + readings per minute; enhanced FAST mode - 90 + readings per minute
display screen
2.8 inch Color Touchscreen
data software
PosiSoft Software Suite
Protection Rating
IP65
power supply
3 AAA batteries
Interface
USB
testing environment
Ferrous metal substrate (such as steel) nonmagnetic coating environment
Dimension
127 x 66 x 25.4mm
weight
137G (without battery)
Meet the standard
ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others
Measurement Range
0~625 um
margin of error
+ (0.5 um + 1%) 0~100 um；+ (2 um + 3%) > 100 um
