Overview

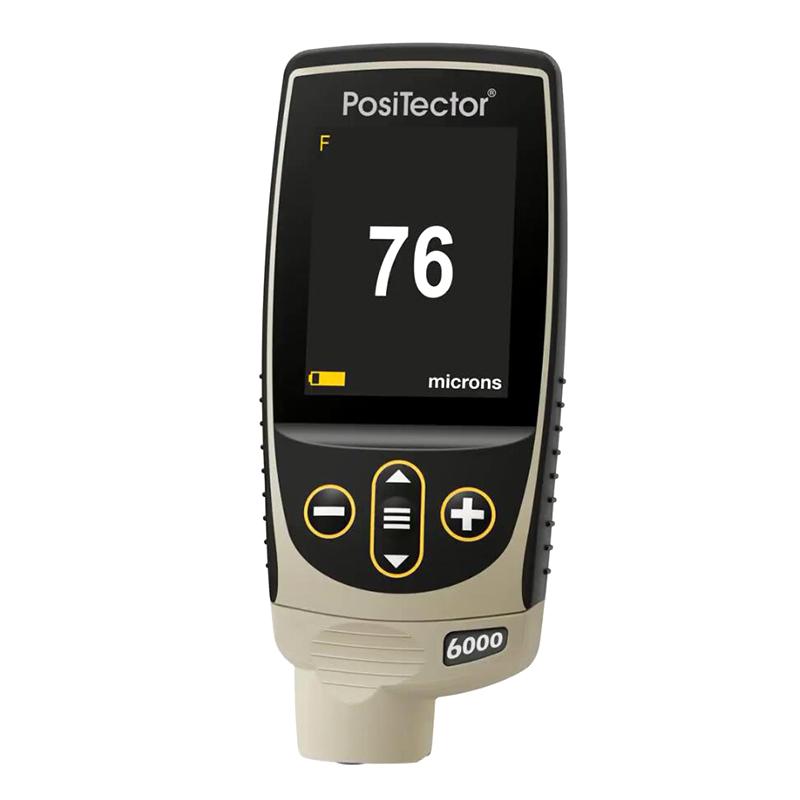

The US Defelsko PosiTector 6000 FN1 Coating thickness gauge is a portable device with dual measurement function Probe, which automatically recognizes different Testing substrates and makes fast and accurate thickness measurement. With a one-piece construction, it is easy to carry and operate with one hand. The Probe is made of wear-resistant material, which is suitable for rough surfaces and is not prone to abrasion. No calibrate adjustment is required in most tests, simplifying the operation process.
Features
1. Built-in dual measurement function Probe, automatically identify the substrate; 2. One-piece structure, portable and can be operated with one hand; 3. Probe is made of wear-resistant material, suitable for rough surfaces; 4. Most tests do not require calibrating adjustment, simple operation; 5. Measurement speed is fast, more than 60 readings per minute; 6. High Protection Rating IP65; 7. Equipped with color Touchscreen and USB interface; 8. Support a variety of statistical functions, such as measurement times, MAX Maximum, MIN Minimum, Average and Standard Deviation.
Principle
The PosiTector 6000 FN1 Coating thickness gauge uses magnetic Induction and eddy Current principles for measurement, and can automatically convert measurements on all metal substrates to adapt to magnetic and nonmagnetic environments.
Applications
Coating thickness measurement of all metal substrates
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps

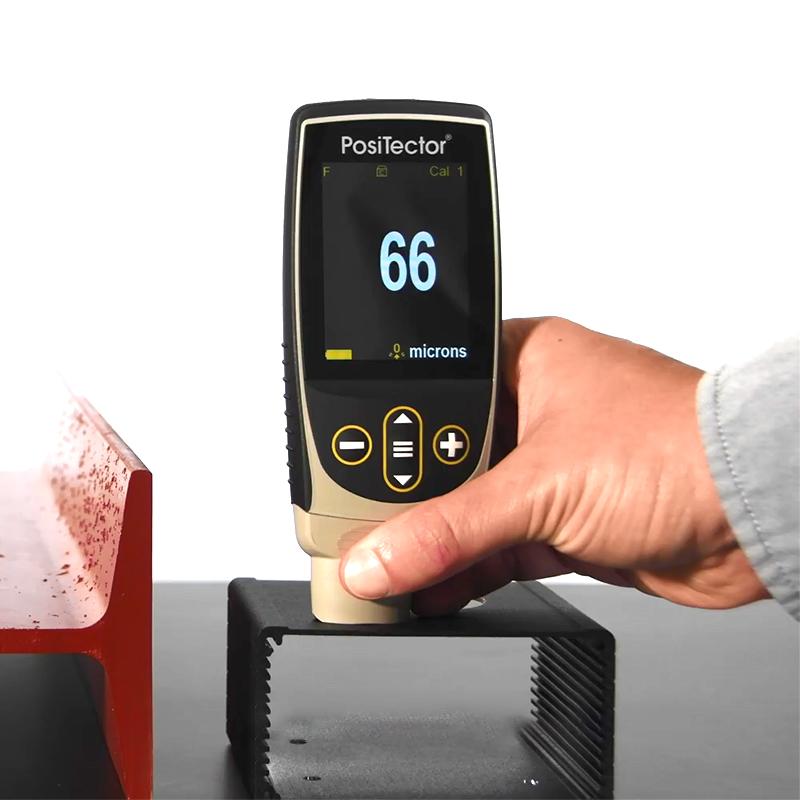

1. Power on the device; 2. Place the Probe on the surface to be tested; 3. Automatically identify the substrate and measure the thickness; 4. Read the measurement results on the display screen; 5. Use the USB interface to export data or process it through PosiSoft software.
Notice
- Ensure that the equipment is used on suitable metal substrates; - Avoid excessive abrasion of Probe, check regularly; - Use 3 * AAA alkaline batteries, pay attention to the power; - Pay attention to the capacity limit when storing data; - Use under IP65 Protection Rating to avoid extreme environments; - Keep the calibrated certificate properly.
