Overview

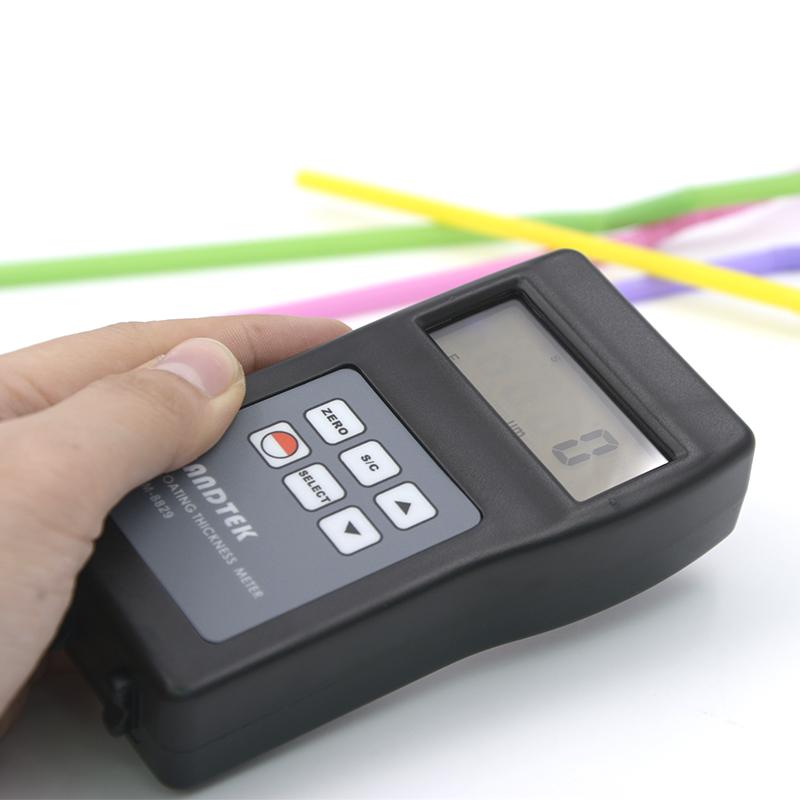

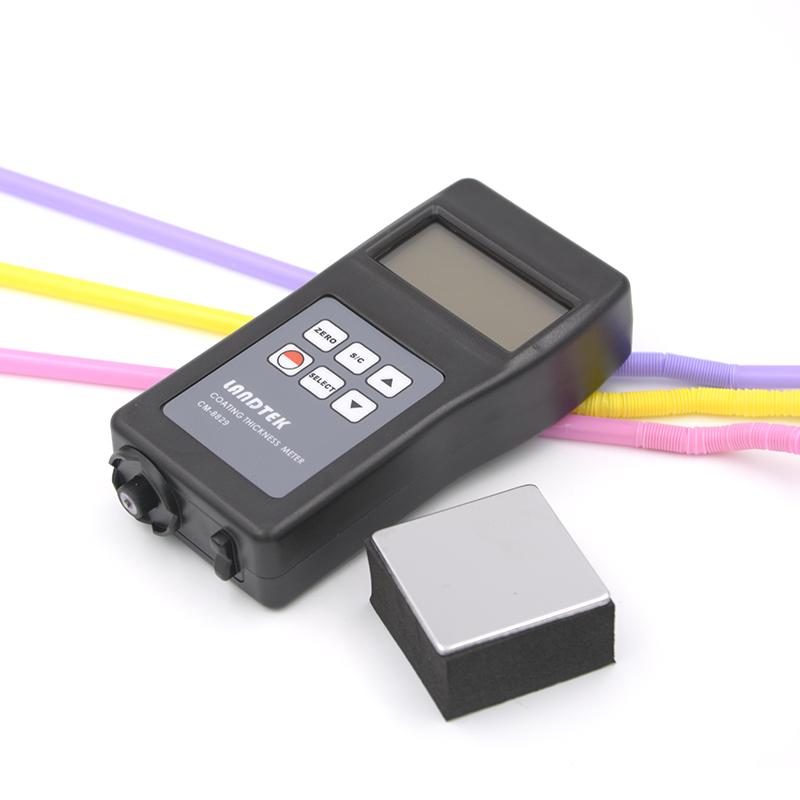

The LANDTEK CM8829f (0-3mm) magnetic Coating thickness gauge is a custom type Coating thickness gauge with a thickness Measurement range of 0~ 3mm for the measurement of magnetic non-magnetic material coatings on metals. The thickness gauge is designed with a built-in integrated Sensor structure, which is convenient for thickness measurement on the outer belt. Measurement Stability is better, which can meet the needs of most applications. It has the characteristics of digital display, professional structure design and a variety of Measuring methods.
Features
1. Metric/imperial unit conversion
2. Single and Continuous Measurement modes available
3. Automatically remember the calibrated value and automatically identify the material of the tested substrate
4. With manual shutdown, automatic shutdown and undervoltage prompt functions
5. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement
6. With RS-232C interface, data cable and software can be used to communicate with PC

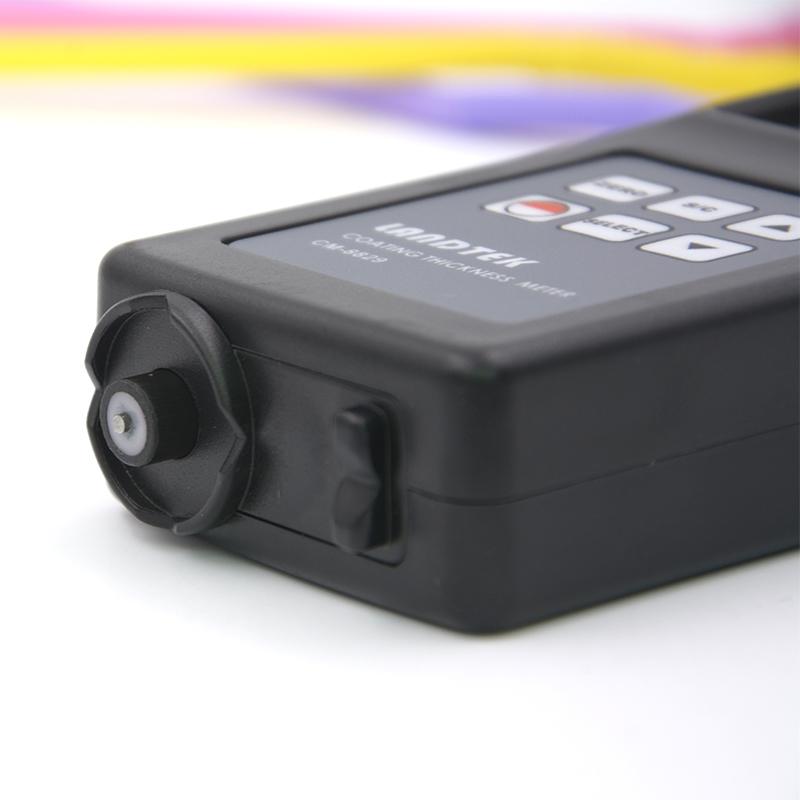

7. Integral instrument is suitable for one-handed operation, with "Large Probe", Large Stability of Contact Surface, Accurate Results and Strong Repeatability
8. Provide optional configuration Bluetooth Bluetooth ™ data output selection
Principle
LANDTEK CM8829f (0-3mm) magnetic Coating thickness gauge adopts the principle of magnetic Induction to measure the non-ferromagnetic Coating thickness on ferromagnetic metal substrates such as steel and iron through magnetic Sensor.
Applications
Non-ferrous magnetic coatings and platings measurement on ferromagnetic metal substrates such as steel and iron, including paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxidation layer, etc
Steps
1. Select Single or Continuous Measurement mode
2. Probe into contact with the surface of the measured object
3. The instrument automatically recognizes the substrate material and makes measurements
4. Read the measurement results on the display
5. Data can be transmitted through the RS-232C interface with the PC
Notice
* Operating temperature range is 0~ 40 ℃
* relative humidity range of 10~ 90% RH
* Minimum radius of curvature: convex 1.5mm/concave 25mm
The thinnest substrate thickness is 0.3mm.
* Minimum measurement surface diameter is φ 6mm

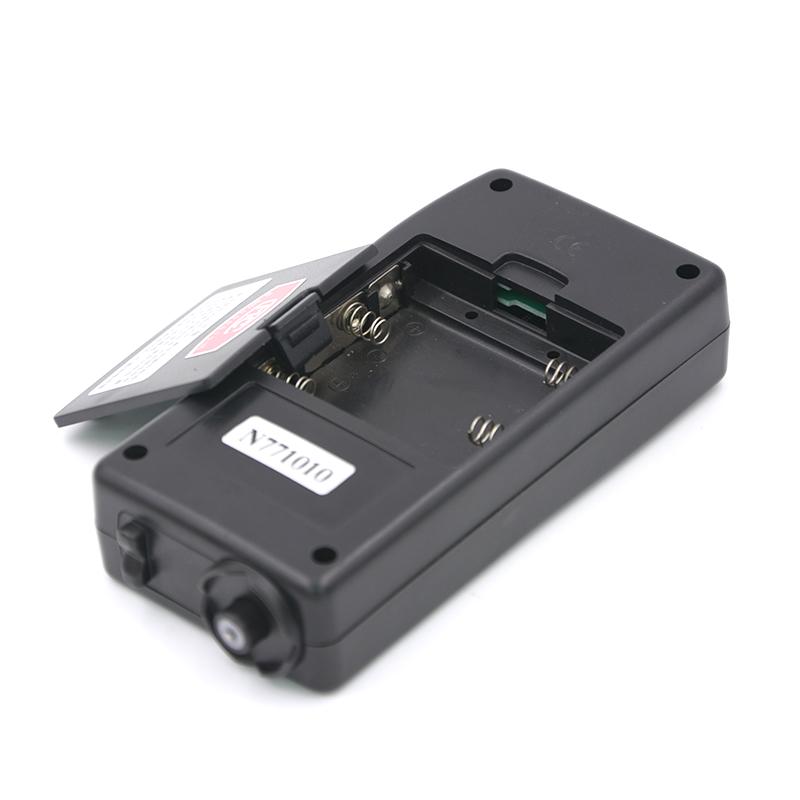

* Pay attention to the low battery voltage prompt
* Buzzer does not sound during continuous measurement
