Overview

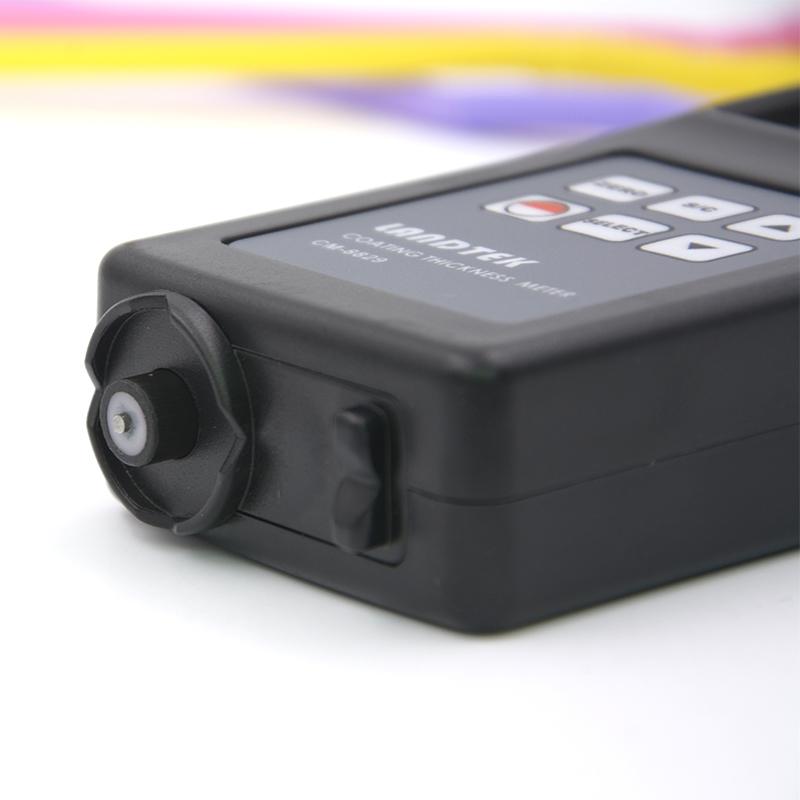

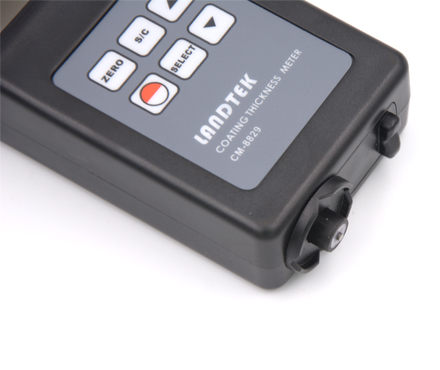

LANDTEK CM8829F (0-3mm) Integrated Probe Custom Coating thickness gauge is a customized model of LANDTEK CM8829F Coating thickness gauge. It adopts an integrated structure design. The thickness Measurement range is 0~ 3mm. It is used for the measurement of magnetic metals on non-magnetic material coatings. The thickness gauge adopts an integrated Sensor structure, which is convenient for external work, and has better measurement Stability. It can meet the needs of most applications. It has the characteristics of digital display, professional structure design and a variety of Measuring methods.
Features
1. Integrated structure design, easy to work with external thickness measurement
2. Stability measurement is better
3. Digital display
4. Professional structural design
5. Measuring methods
6. Integrated Sensor
7. Low voltage prompt function
Principle
LANDTEK CM8829f (0-3mm) magnetic film thickness gauge adopts the principle of magnetic Induction, and measures the thickness of non-ferromagnetic coatings and platings on ferromagnetic metal substrates such as steel and iron through magnetic Sensor.
Applications
Coating thickness measurement of paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxidation layer, etc
Steps

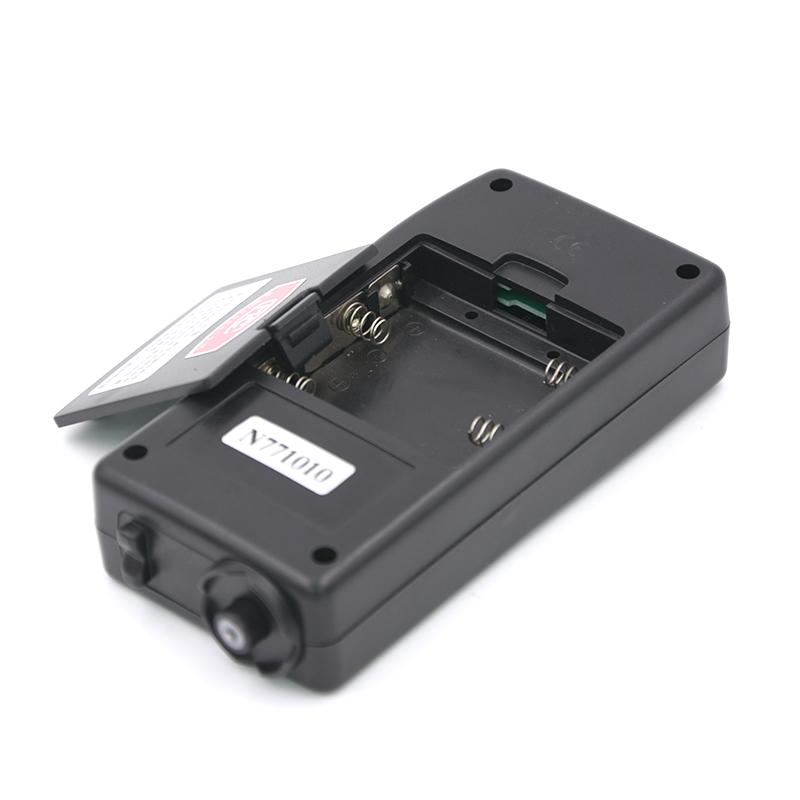

1. Install 4 * AAA batteries
2. Boot preparation measurement
3. Probe the measurement surface
4. Keep Probe in vertical contact with the measurement surface

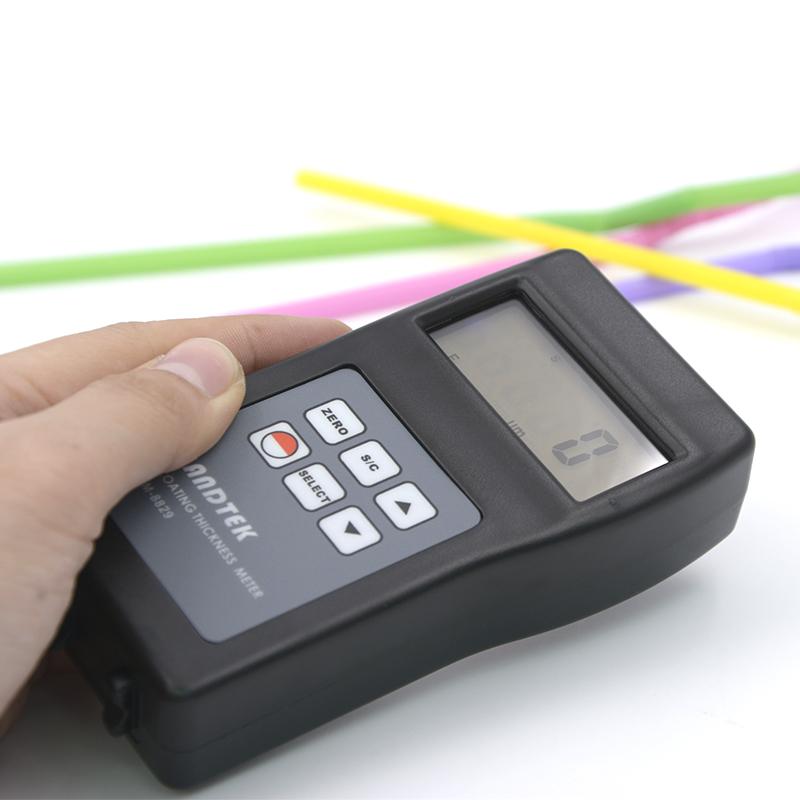

5. Read the measurement value on the LCD screen
Notice
• Measurement range: 0~ 3000μm
• Range of error: +/- 3%
• Minimum radius of curvature: convex 1.5mm, concave 25mm
• Thin substrate thickness: 0.3mm
• Minimum measurement surface diameter: φ 6mm
• Operating temperature: 0~ 40 ℃
• relative humidity: 10~ 90% RH
• Pay attention to the low voltage prompt and replace the battery in time
• Probe in full contact with the measurement surface during measurement
