Overview

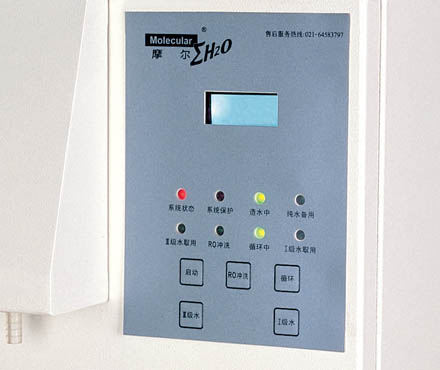

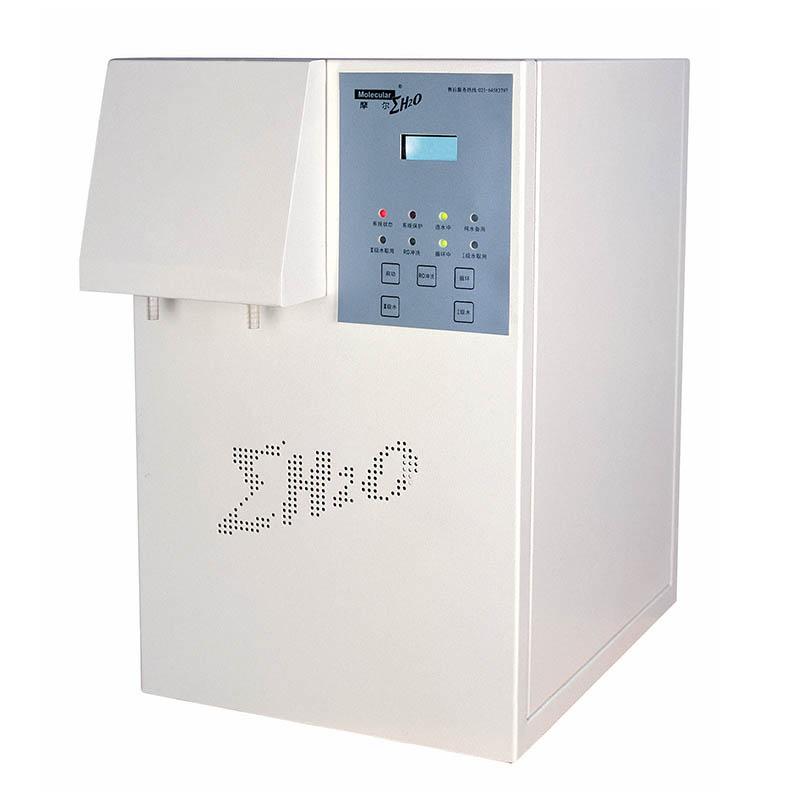

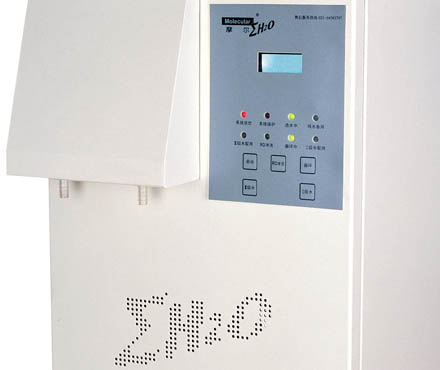

MOLECULAR MP-05L Lab water purifier is a special pure water machine for laboratory physical and chemical quantitative analysis, buffer solution and high standard solution preparation, etc. The water production rate is 5L/h, and the water intake Flow velocity is 0.8L/min. The device adopts intelligent microcomputer control, touch button, has operation status display and water quality online monitoring functions, and realizes man-machine dialogue.
Features
1. Fully automatic microcomputer control, with automatic water generation, standby, alarm, flushing and other functions.
2. RO membrane intelligent anti-scale regular flushing and manual forced flushing.
3. Automatic domestic circulation system to maintain ultra-pure water quality.
4. Equipped with a PE controllable 30-liter pure water tank.
5. Using high-quality components, including DOW membrane, ROHMHAAS ultra-pure Resin, MOL filter and carbon filter, SMC solenoid valve, E-CHEN booster and conveyor pump, PE pipe valve fittings and PE water tank, Cheng Magnetic Resistance meter, OMRON electronic control components, liquid level controller, intelligent controller.
6. Water resistivity online display, liquid crystal display.
7. Automatic protection for water, power, and overload.
Principle
Control system through the microcomputer equipment to achieve automatic water, standby, alarm and flushing, RO membrane automatic timing anti-scaling flushing, and equipped with automatic domestic circulation system to maintain ultra-pure water quality.
Applications
Laboratory physical and chemical quantitative analysis, buffer solution and high standard solution preparation
Standards
GB Grade III pure water, GB6682 Grade I water standard
Steps
1. Connect the tap water source to ensure that the water pressure is 0.1-0 MPa.
2. Connect 220V/50HZ power supply, Power 80W.
3. Start the device by touching the button to automatically generate water.
4. Use manual forced flushing function for RO membrane flushing (optional).
5. Water is taken from the PE pure water tank. Flow velocity is 0.8L/min.
Notice
• The water source must be tap water, and the water pressure range 0.1-0 MPa.
• The working environment water temperature needs to be 5~ 40 ℃, and the northern area needs to be used in the antifreeze room.
• Regularly perform RO membrane anti-scaling flushing to maintain equipment performance.
• Pay attention to the automatic protection function of the equipment, and deal with it in time in case of water failure, power failure or overload.
