Overview

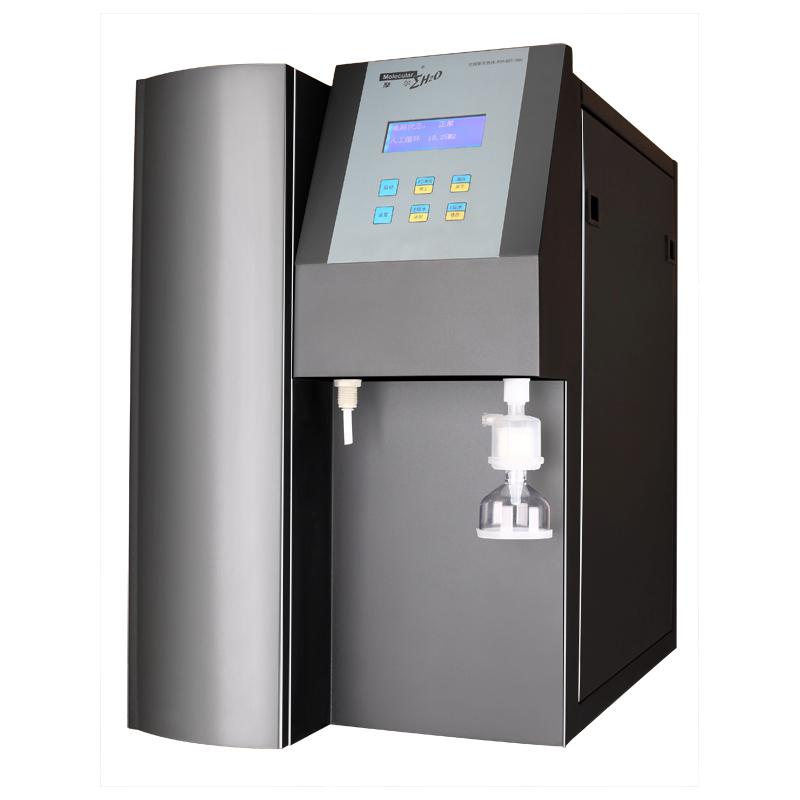

The water production rate of the MOLECULAR MU-05L laboratory ultra-pure water machine is 5L/h, and the water intake Flow velocity is 0.8L/min. The equipment adopts automatic microcomputer intelligent control, touch buttons, man-machine dialogue menu setting interface, and is equipped with color LCD display. It has functions such as automatic machine status display, whole process monitoring, consumables replacement prompts, multiple water intake modes, water consumption records, alarm records, information inquiry, automatic calendar and temperature display, and can be optionally connected to a PC.
Features
1. Eight-stage purification system: 5μm Coarse Filter, Coconut Shell Activated Carbon, Precision filtrated Security Device, Dow reverse osmosis (RO) membrane, Molup pack ultra-purification bag, Rohm and Haas ultra-pure polishing column, 254nm/185nm UV sterilized, 0.2μm German SARTORIUS tangential flow microfiltration membrane
2. The pretreatment adopts a visual transparent cylinder, which is convenient for observation and replacement
3. RO membrane intelligent anti-scale regular flushing and manual forced flushing
4. Automatic domestic circulation rinsing to maintain ultra-pure water quality
5. Equipped with PE controllable pure water tank (including air Filter)
6. Using high-quality components: DOW reverse osmosis (RO) membrane, Sartorius microfiltration membrane, Molup pack ultra-pure column, ROHMHAAS polished ultra-pure column, 185/254nm UV Lamp, KEMFLO filter element and carbon filter, SMC solenoid valve, E-CHEN booster and transfer pump, DMT pipe valve fittings, magnetic Resistance meter, SIEMENS electronic control components, liquid level controller, intelligent controller
Principle
The equipment realizes water purification through an eight-stage purification system: the first-stage 5μm coarse Filter removes particles, sand, suspended solids and algae; the second-stage coconut shell activated carbon adsorption residual chlorine, microorganisms and colored odorous substances; the third-stage precision filtrate security device protects reverse osmosis (RO) membrane; the fourth-stage US Dow reverse osmosis (RO) membrane desalination and sterilization rate reaches more than 99%; the fifth-stage Molup pack ultra-purified package ion removal rate reaches 99.999%; the sixth-stage Rohm-Haas ultra-pure polishing column further removes ions; the seventh-stage 254nm/185nm violet outer circulation sterilizes and removes organic matter; the eighth-stage 0.2 μm German SARTORIUS tangential flow microfiltration membrane intercepts and removes bacteria.
Applications
High standard solution, buffer solution preparation, trace element quantitative analysis, atomic absorption, PCR, HPLC, liquid mass spectrometry, light emission spectrum, gas chromatograph, ion chromatograph, Electrophoresis, molecular biochemistry, cell fostering, microbial applications, immunological applications, protein purification analysis, TOC detection, DNA/RNA sequencing
Standards
GB ⅲ grade pure water
Steps
1. Connect the tap water source to ensure that the water pressure 0.1-0
2. Connect the 220V/50HZ power supply
3. Set the water intake mode by touching the button and the man-machine dialogue menu
4. Choose random, Basis Weight or qualitative water intake as needed
5. Monitor equipment status and water usage records
6. Replace consumables according to the prompts
7. Optional connection with PC for data management
Notice
• The source of incoming water must be tap water
• The working water pressure should be kept within the range of 0.1-0 MPa
• Working environment water temperature is 5~ 40 ℃
• Northern regions need to have antifreeze rooms
• Regularly observe the pretreated transparent cylinder and replace it in time
• Pay attention to the replacement prompts for equipment consumables
• Maintain equipment in Humidity environment
