Overview

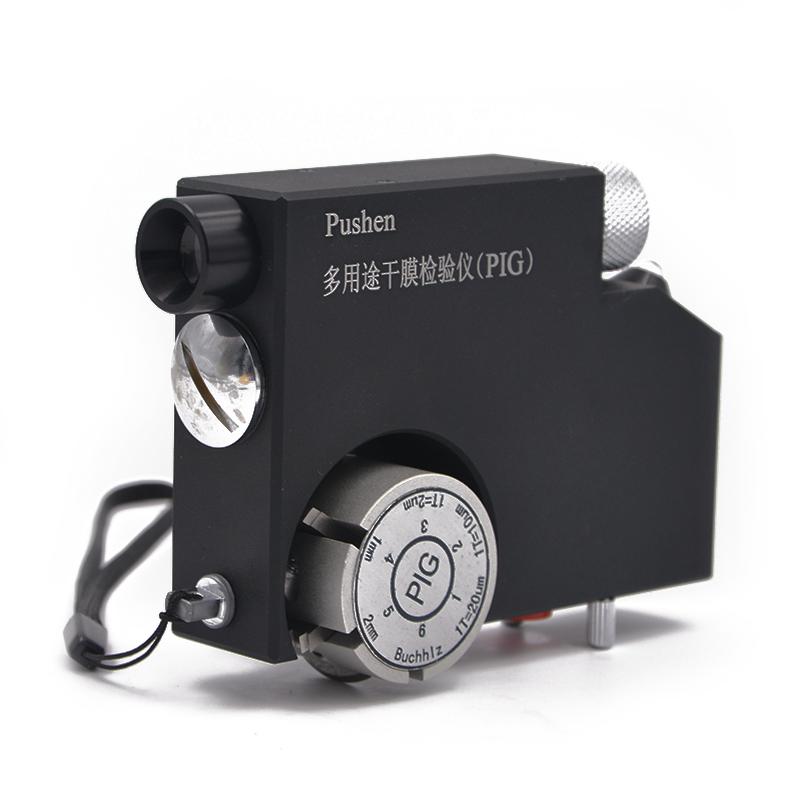

The PIG Multi-Purpose Dry-Film Tester is a professional instrument from the PUSHEN brand for the measurement of paint film thickness, adhesion and Hardness of paints and coatings on metal and Non-metallic substrates. It is evaluated under 60 ° light by cross-cut or Cump tests to ensure accurate detection of coating performance.
Features
1. Multifunctional integration for measurement of film thickness, adhesion and Hardness

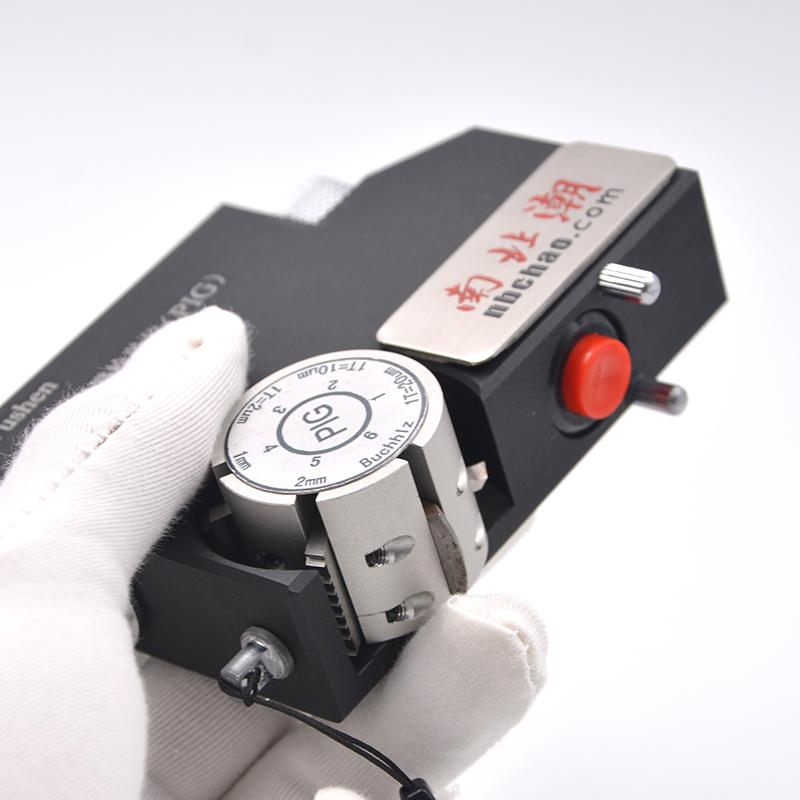

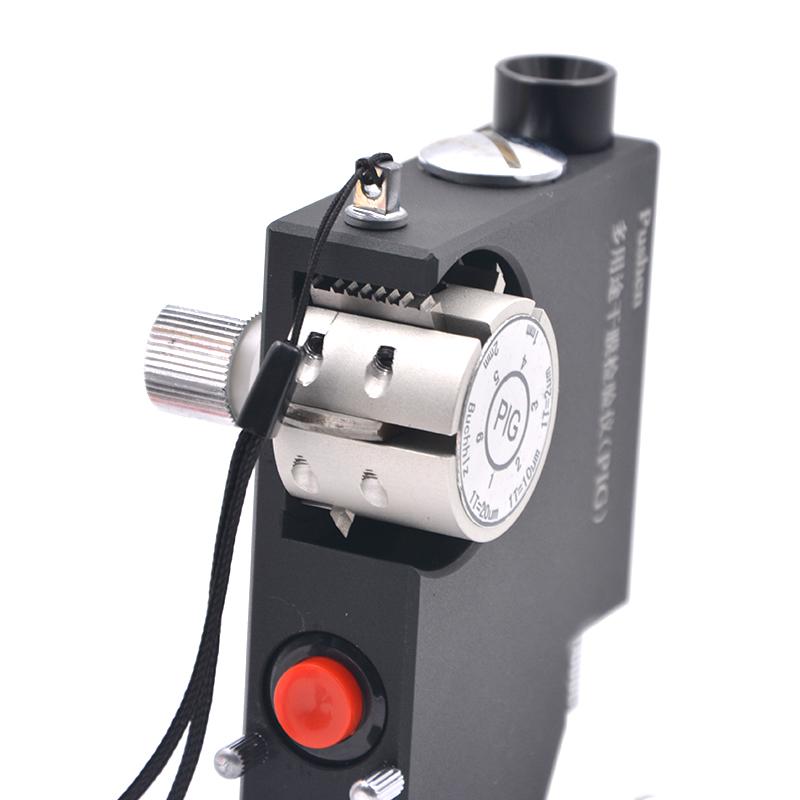

2. Equipped with a variety of cutting tools to adapt to different measurement needs
3. Built-in Microscope and lighting system for accurate observation
4. Support multiple international standard test methods
5. Destructive Measurement principle to Ensure Reliability
Principle
The instrument works through the destructive Measurement principle: after the illumination is turned on, the Microscope displays the micron scale, and the user aligns the zero scale at the beginning of the scratch according to the cut angle of the cutting tool for calculation. For cross-cut testing, use the cutting tool to scratch the grid pattern and brush or stick the tape, and use the Microscope to observe and evaluate; for Buchholz Cuan hardness testing, combine the Cang knife and the load weight, and measure the length after Cang.
Applications
Film thickness measurement, paints adhesion testing, Coating Hardness testing, Metal substrate coating evaluation, Non-metallic substrate coating evaluation
Standards
GB/T 13452.2-2008、ISO 2409、ISO 2815、ASTM D 3359、DIN 50986、DIN 53153
Steps
1. Turn on the lighting, Microscope display scale
2. Estimate Coating thickness, choose the right cutting tool
3. Align the zero scale at the beginning of scratch and calculate the thickness according to the scale
4. For the cross-cut test, brush or tape after scratching the grid pattern and observe with a microscope
5. For Crain test, install load weight, Crain measurement length after 30 seconds
Notice
• When scratching is not straight, multiple parts need to be measured to calculate the average value to improve the accuracy
• If each coating Color is different, the thickness of each layer can be determined
• Brush the cross-cut area five times according to DIN ISO method, or use tape according to ASTM method
• Cutting tests require precise control of time and load
