OSP-05/60 coating Rod formed Applicator Rod wet film thickness 5μm

Name: OSP-05/60 coating Rod formed Applicator Rod wet film thickness 5μm
Brand: OSP
SKU: NB000060
Price: 118.0 USD
Availability: InStock

$ 118.00Ex works

Using a formed pRoduction process to form a continuous groove, wet film thickness 5μm, diaMeter 10mm, not easy to clog and easy to clean, fine workmanship.

Model

Get Quote

Category : Coating Rod

Brand : OSP

SKU : NB000060

Service :The delivery and service By NBCLab.Com

Overview

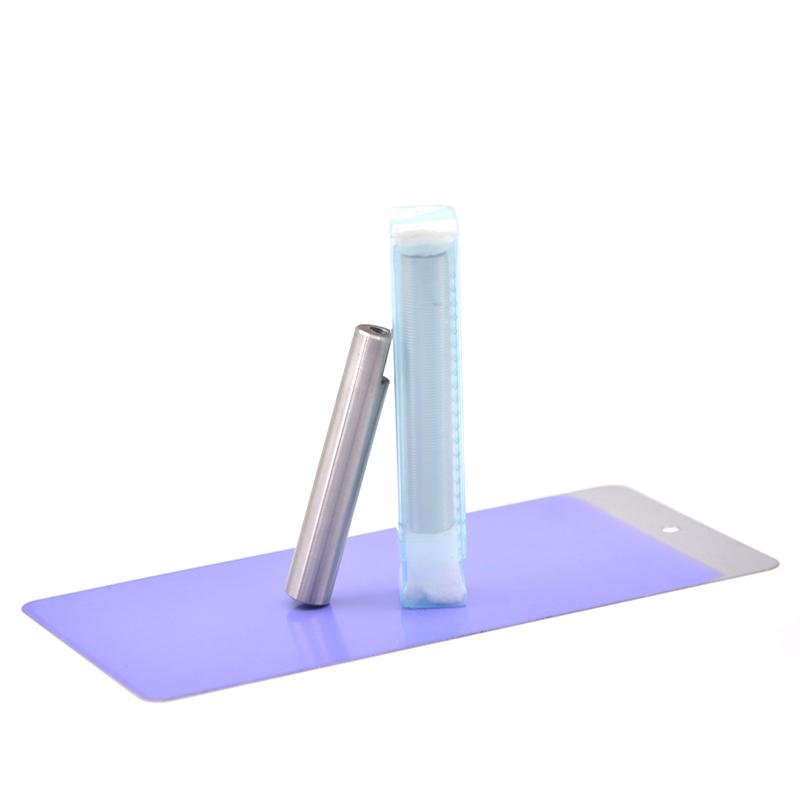

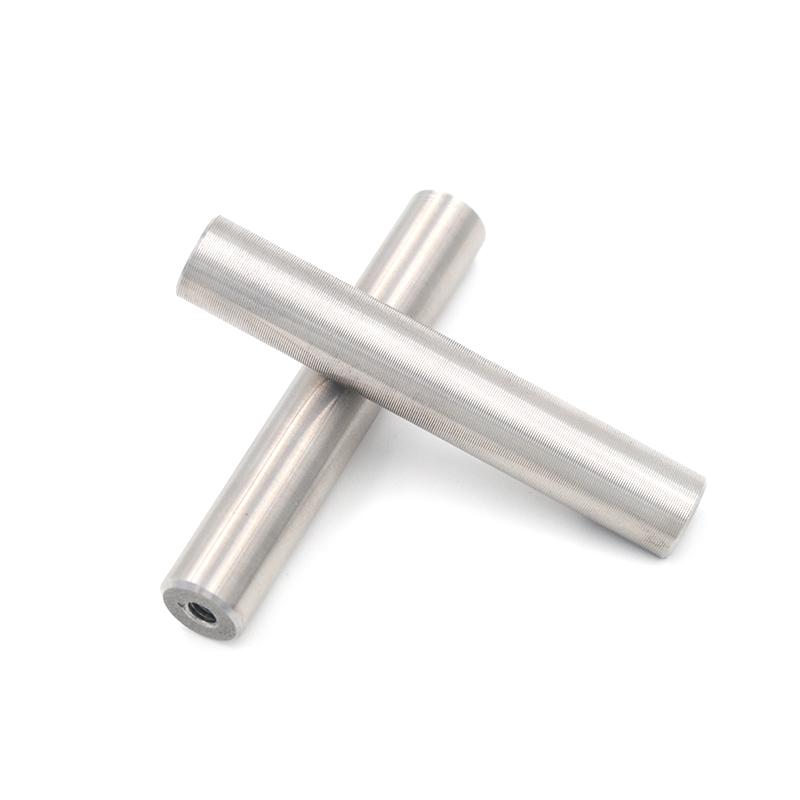

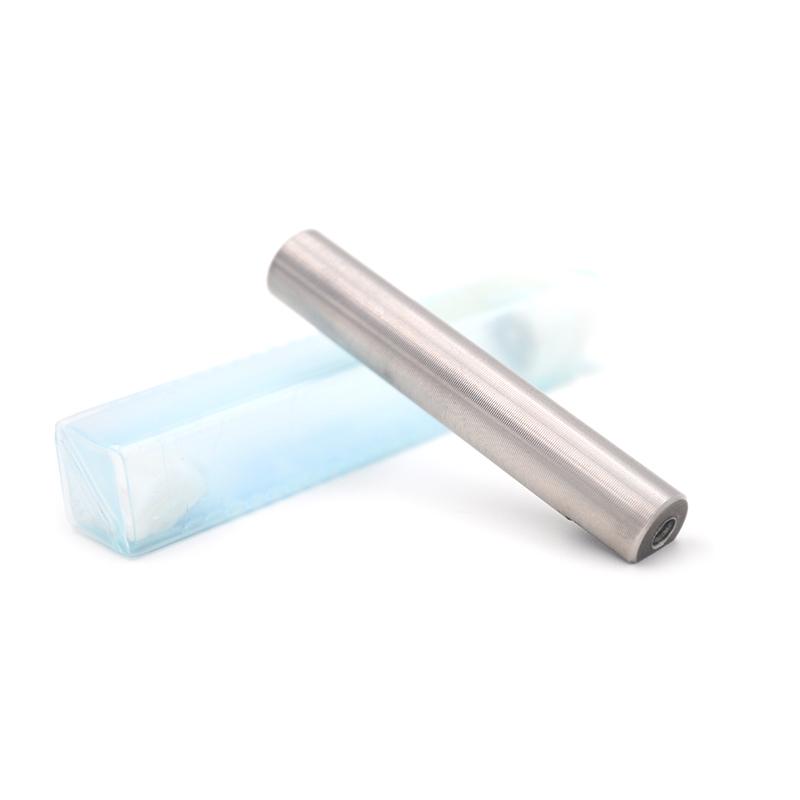

OSP-05/60 coating rod is a new type of formed Applicator rod designed by Japanese OSP brand to break the traditional wire-wound Applicator rod. The stainless steel rod is processed by special cold extrusion process to form a continuous groove structure, and the wet film thickness is accurately controlled by the groove size to 5 μm, which solves the problem that the traditional Applicator rod is easy to break and not easy to clean.

Features

1. Adopt formed production process to replace traditional wire-wound design 2. Special cold extrusion process to form a continuous groove structure 3. Precise control of wet film thickness by groove size 4. Fine workmanship, 304 stainless steel material 5. Solve the problem of broken wire and difficult cleaning of traditional Applicator rod

Principle

The OSP Applicator rod is formed by a special cold extrusion process to form a continuous groove on the steel rod, and the size of the groove is used to control the wet film thickness during the Spreader to achieve accurate film effect.

Specifications

Production process: formed, wet film thickness: 5μm, diameter: 10mm, total length: 60mm, application width: 60mm, hand width: 0, material: 304 stainless steel

Production process
formed
wet film thickness
5μm
rod diameter
10mm
Total length
60mm
application width
60mm
Grip Width
0
material
304 stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
