Overview

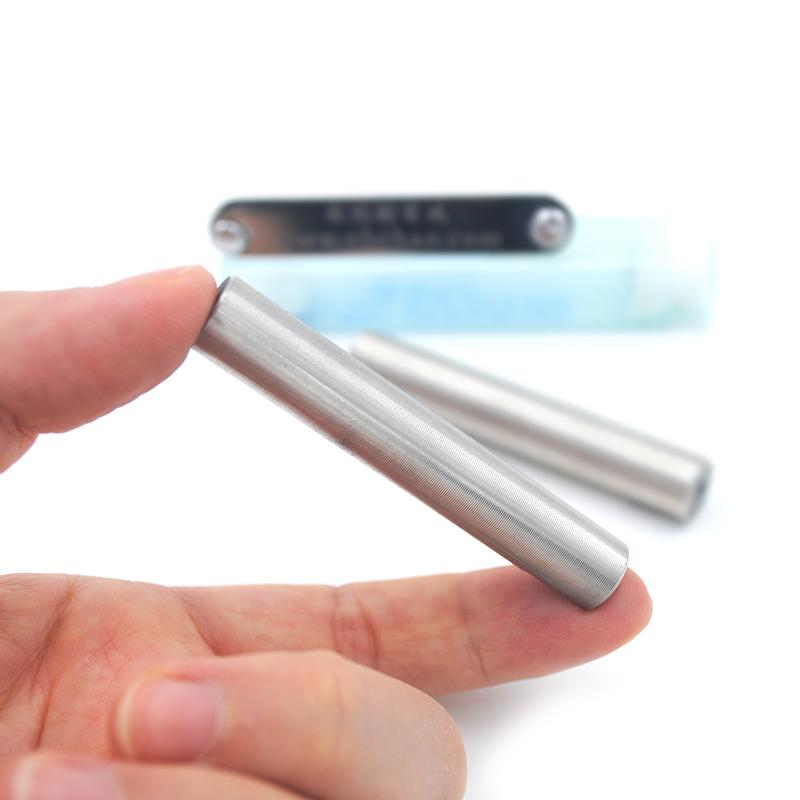

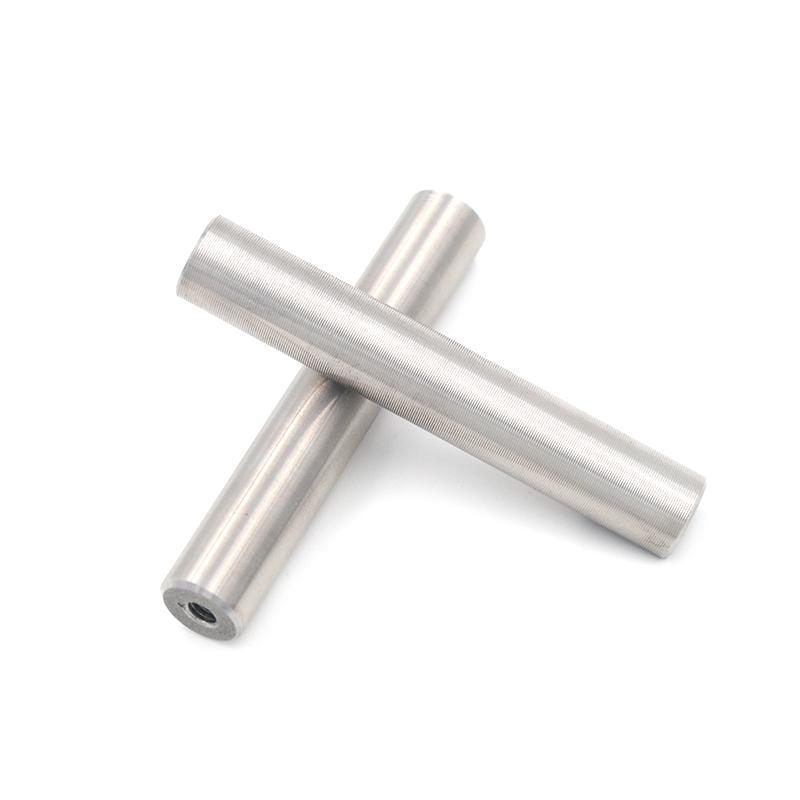

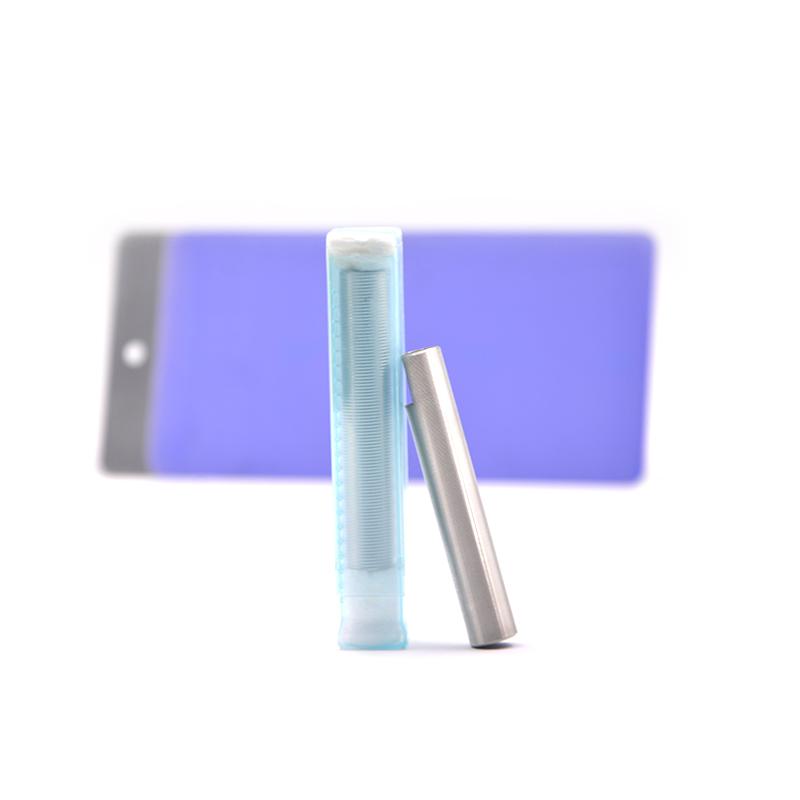

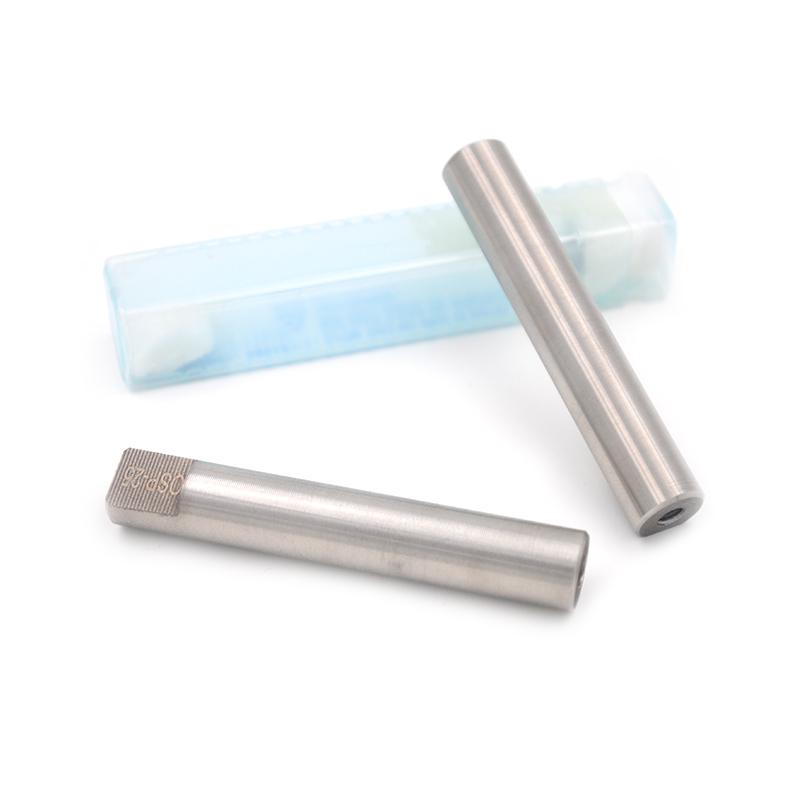

OSP-09/60 coating rod is a widely used film tool in the field of Coating inks. It is mainly used for preparing accurate wet film coatings with a thickness of 9 microns. Colorimetric color matching and pigmentation of coatings are used to avoid passive production. The length of this type of coating rod is 60mm, the application width is 60mm, and there are no handles at both ends. It can be used with a separate Spreader handle to make the Spreader easier and more uniform.
Features
1.Accurate wet film thickness of 9 microns
2. Made of 304 stainless steel, with strong durability
3. formed production process, easy to operate

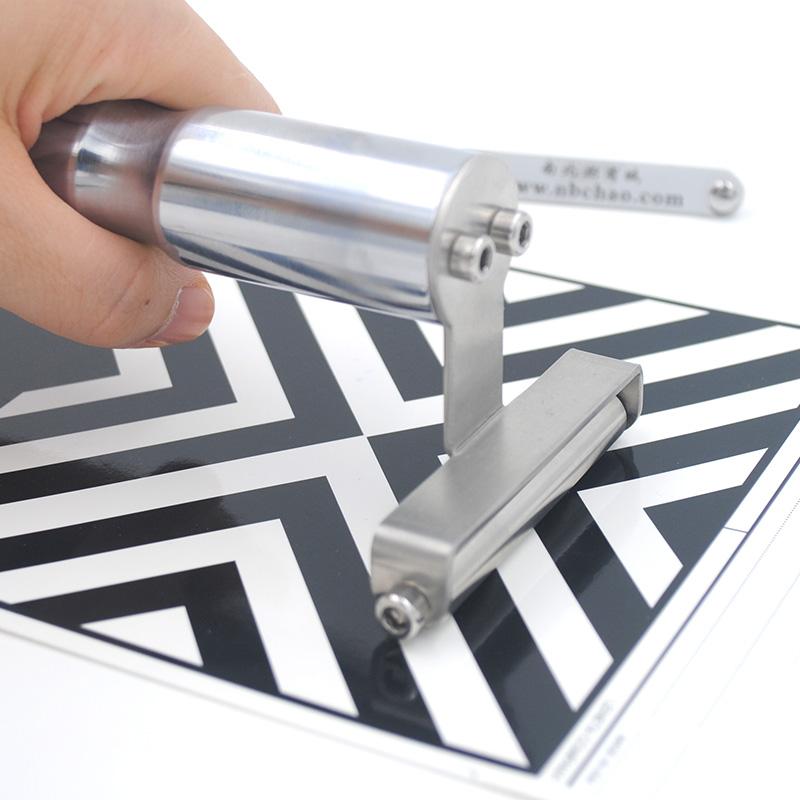

4. Optional Spreader handle to improve Spreader uniformity and comfort
5. Total length 60mm, application width 60mm, suitable for small area Spreaders
Principle
The coating rod is formed through a process to uniformly Spreader Coating or inks on the surface of the substrate to form a precise wet film thickness. The user pushes the coating rod to roll or slide on the surface to prepare a coating of uniform thickness for subsequent color matching, Colorimetric and color fixing operations.
Applications
Coatings, inks
Steps
1. Coatings or inks and substrates
2. Place the coating rod at the starting end of the substrate
3. Apply pressure evenly to push the coating rod along the substrate
4. After Spreader, check coating uniformity
5. If you need a matching handle, install the handle first and then operate it.
Notice
• Make sure the coating rod is clean and drying before use
• Spreaders maintain uniform speed and pressure
• For models without grips, it is recommended to match a handle to improve operation
• Avoid use on rough or uneven surfaces
• Wash in time after use to prevent Coating residue
