Overview

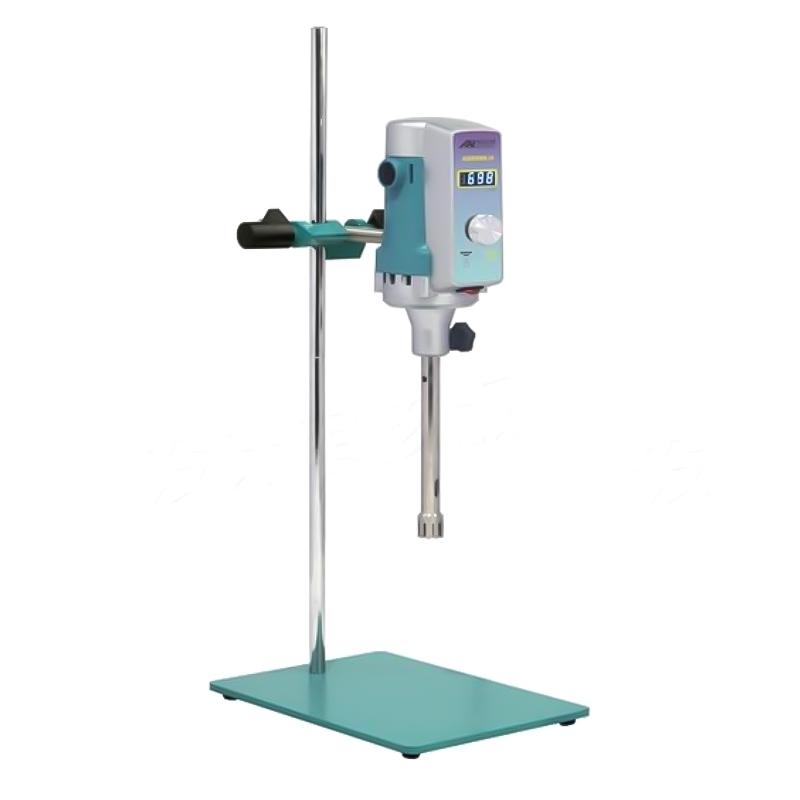

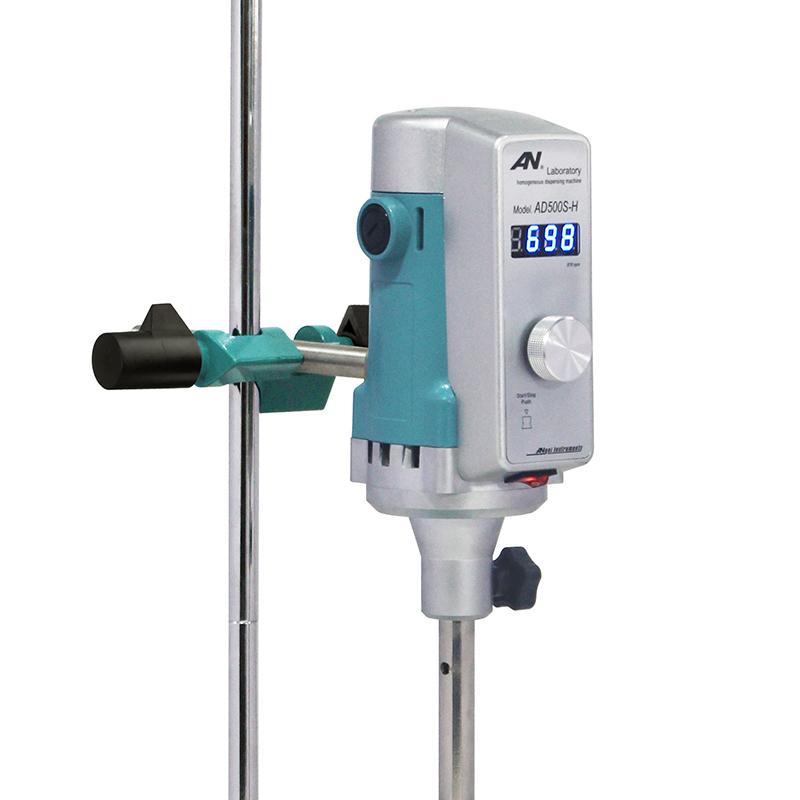

The ANGNI AD500S-H (24G) high-speed dispersion Mulser is driven by a compact series micro high-speed motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing and emulsification of crushed granular materials in liquid media. The machine consists of a high-speed motor, a shearing emulsification head and a speed control controller.
Features
1. The drive main engine adopts die-casting aluminum alloy as the body, and the running state is stable.
2. The working head is made of high-quality stainless steel, with a wide range of experimental applications.
3. Rotation speed is controlled by the microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation, and the constant speed is reliable;
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time.
5, Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed at any time correction;
6. "H-type" digital display Rotation speed is intuitive, which provides convenience for experimental data collection; run timing control function to ensure that the timing of the experiment is effectively controllable.
Principle
The machine drives the shearing emulsification head through a high-speed motor to refine the experimental medium under the triple action of extrusion, strong Impact and depressurized expansion in the material liquid, and mix each other more evenly to prevent or reduce delamination with the material liquid.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, industrial, cosmetic industry, paints industry and Petrochemicals and other liquid and liquid phase, liquid and solid phase experiments, dairy products, beverages, cosmetics, and other products Homogenization and emulsification processes in the production process
Steps
1. Select the appropriate working head according to the experimental requirements.
Speed range 2000~ 28000rpm for stepless speed regulation;
3. Set the Timer Range 1~ 1000min to control the running time;
4. Start the equipment for mixing or shearing emulsification;
5. Monitor the LED display Rotation speed to ensure that the experimental process is controllable.
Notice
• Permissible Ambient Temperature ≤ 40 ℃;
• Allowable relative humidity ≤ 80%;
The maximum operating temperature is 120 ° C.
• The minimum immersion liquid height is 50mm;
• The maximum immersion liquid height is 165mm;
• Processing capacity 80~ 5000mL;
• Maximum processing viscosity 5000cp;
• Power supply voltage AC220V, Frequency 50/60HZ;
• Avoid overload operation to ensure equipment safety.
