Overview

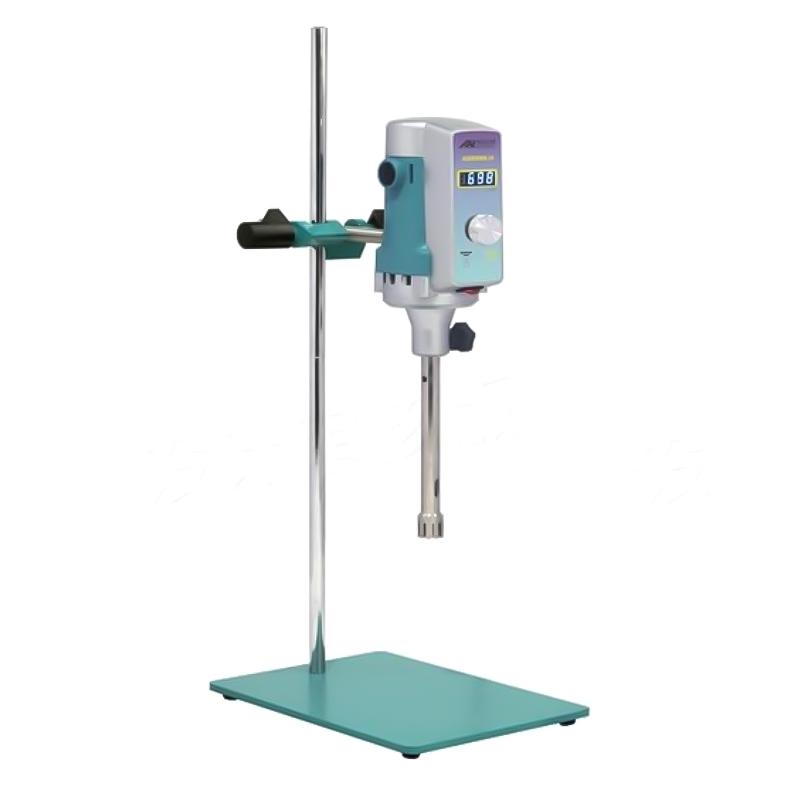

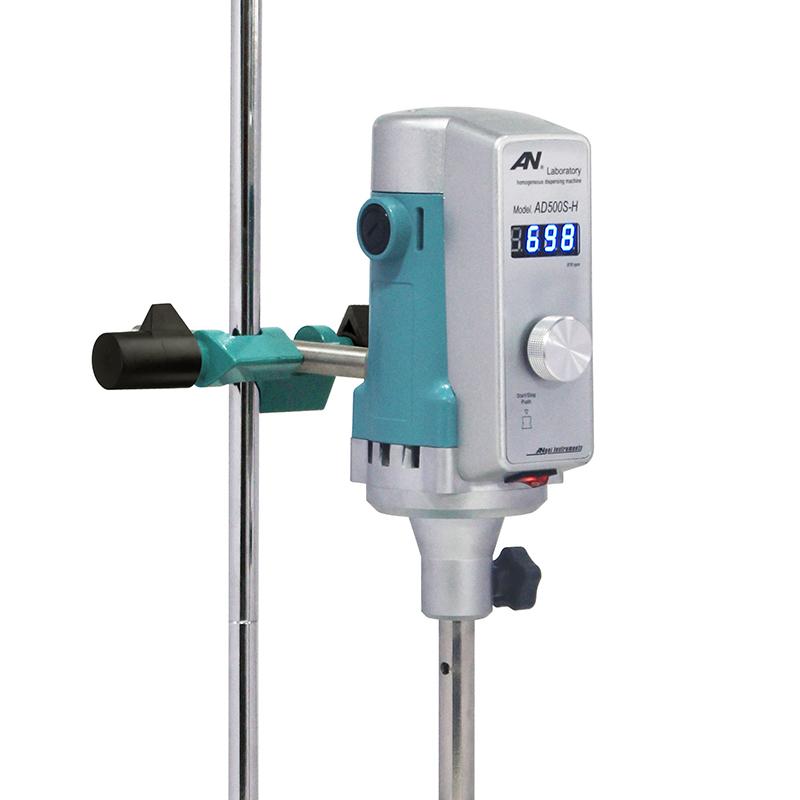

The ANGNI AD500S-H (30G) high-speed dispersion Mulser is driven by a compact series micro high-speed motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing and emulsification of crushed granular materials in liquid media. The machine consists of a high-speed motor, a shearing emulsification head and a speed control controller.
Features
1. The drive main engine adopts die-casting aluminum alloy as the body, and the running state is stable.
2. The working head is made of high-quality stainless steel, with a wide range of experimental applications.
3. Rotation speed is controlled by the microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation, and the constant speed is reliable;
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time.
5, Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed at any time correction;
6. "H-type" digital display Rotation speed is intuitive, which provides convenience for experimental data collection; run timing control function to ensure that the timing of the experiment is effectively controllable.
Principle
The shearing emulsification head is driven by a high-speed motor to refine the experimental medium under the triple action of extrusion, strong Impact and depressurized expansion in the feed liquid, and mix with each other more uniformly to prevent or reduce delamination with the feed liquid.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, industrial, cosmetic industry, paints industry and Petrochemicals and other liquid and liquid phase, liquid and solid phase experiments, dairy products, beverages, cosmetics, and other products Homogenization and emulsification processes in the production process
Steps
1. Connect the power supply and ensure that the voltage meets the rated requirements.
2. Select the appropriate working head according to the experimental requirements and install it.
3. Rotation speed and timing time;
4, start the equipment for decentralized emulsification operation;
5. Monitor the operating status to ensure that it works under allowable environment conditions;
6. After the operation is completed, turn off the power and clean the equipment.
Notice
• Rated voltage AC220V, Frequency 50/60HZ
• Input Power not exceeding 850W, Output Power 500W
• Duty Cycle is S1 (continuous) to avoid overload operation
• Speed range controlled within 2000~ 28000rpm
• Timer Range between 1 and 1000min
• Ambient Temperature not exceeding 40 ℃, relative humidity not exceeding 80%
• Standard Processing capacity of 100~ 8000mL, maximum processing viscosity of 6000cp
• Maximum immersion liquid height 170mm, minimum 60mm
• The maximum operating temperature is 120 ° C to avoid overheating
• The working head material is SS316 stainless steel, and the bearing material is PTFE to ensure corrosion resistance
