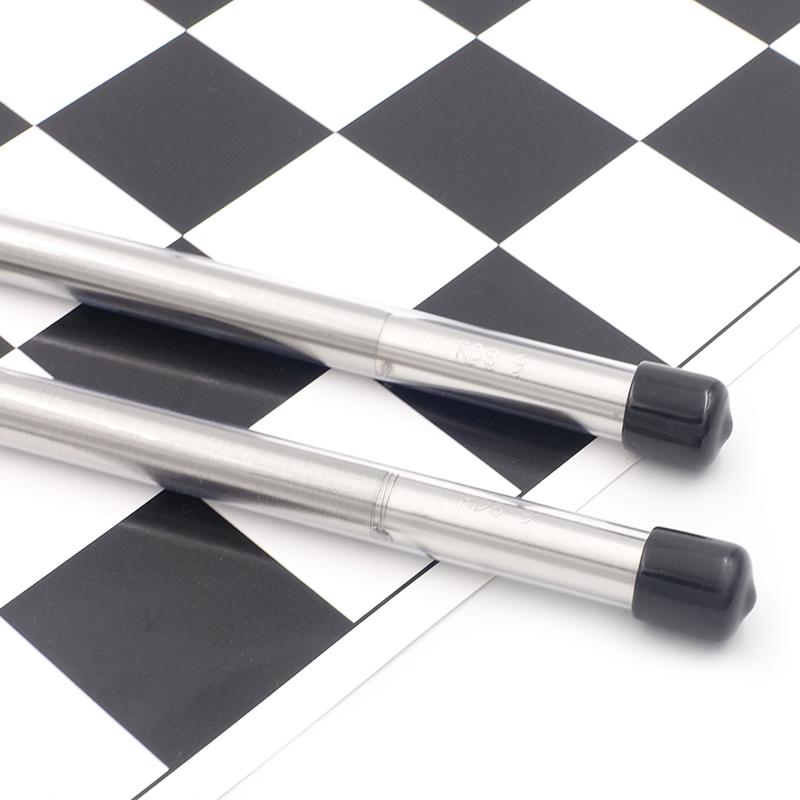

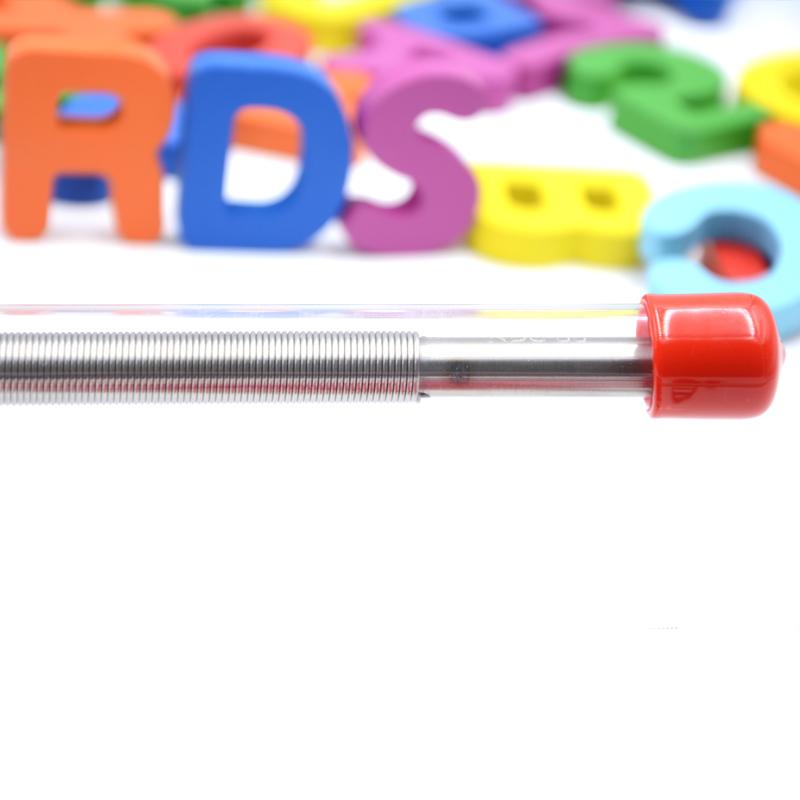

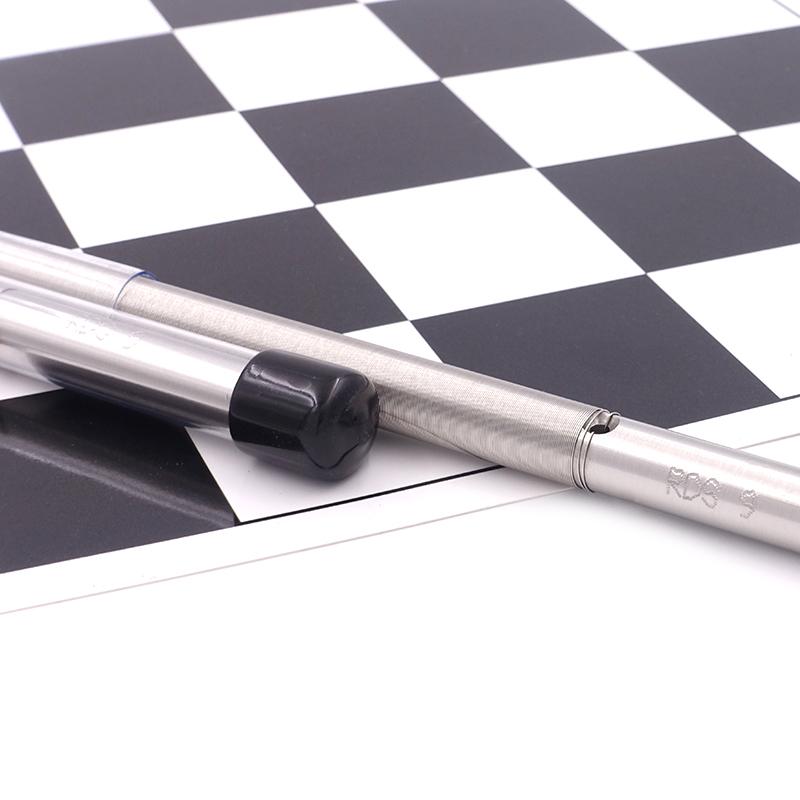

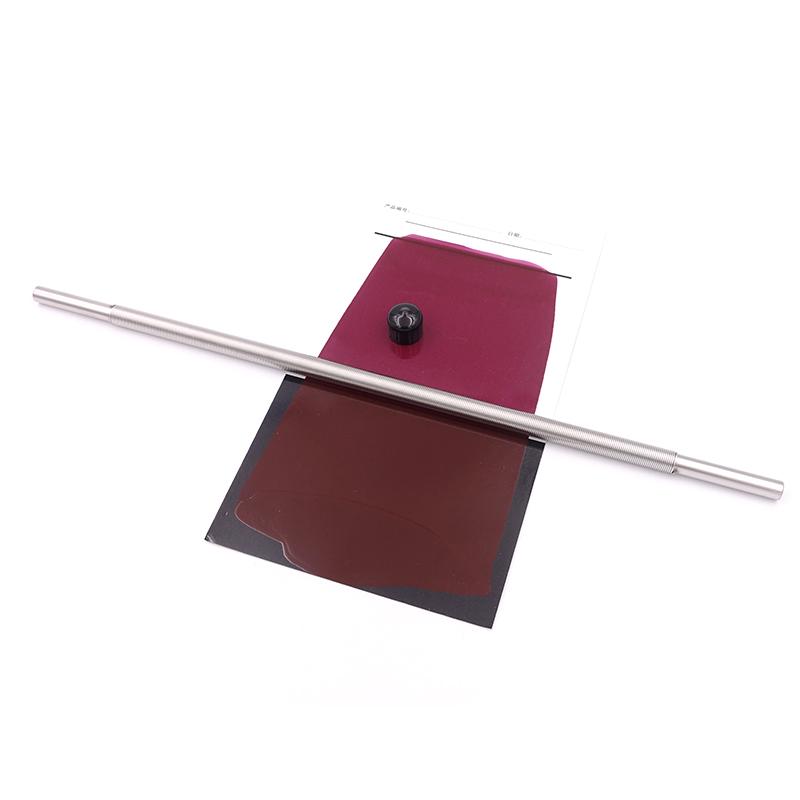

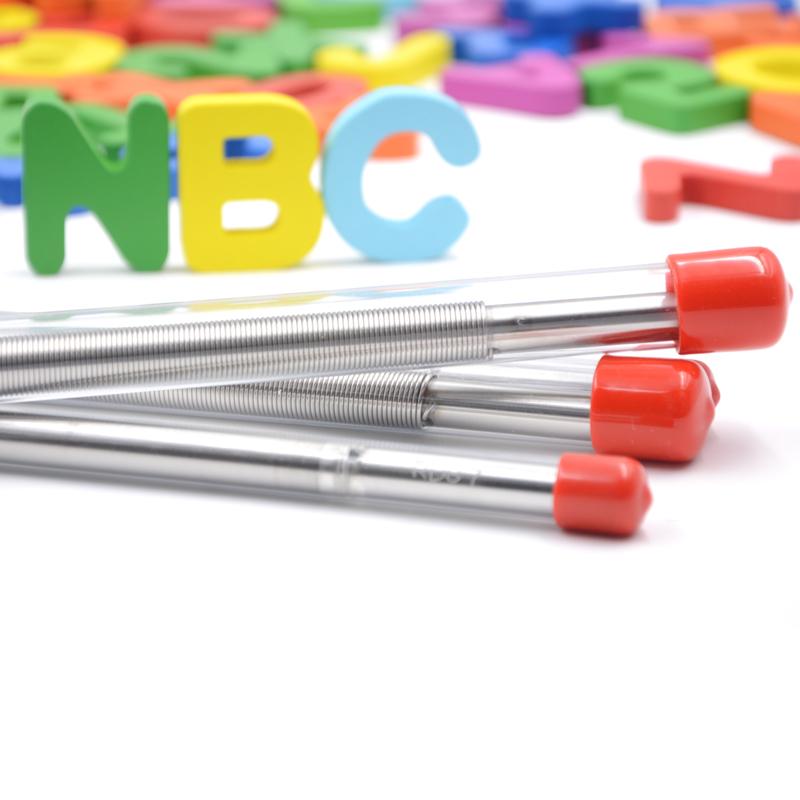

RDS 9# 3/8 Coating Rod, Wire Wound Applicator, Wet Film Thickness 20.6μm

Name: RDS 9# 3/8 Coating Rod, Wire Wound Applicator, Wet Film Thickness 20.6μm
Brand: RDS
SKU: NB000007
Price: 165.0 USD
Availability: PreOrder

$ 165.00Ex works

The wire-wound structure can pRoduce a wet film thickness of 20.6 microns, with a coating width of up to 300 mm, and offers a variety of diaMeter options ranging from 6.35 mm to 12.7 mm to meet different operational preferences.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB000007

Service :The delivery and service By NBCLab.Com

Overview

The American RDS wire-wound rod Coater boasts 80 years of experience in the coating industry and enjoys a high reputation in the domestic paint and ink fields. The RDS #9 wire-wound rod Coater can produce a wet film thickness of 20.6 micrometers and is available in three diameter specifications: 6.35 mm, 9.5 mm, and 12.7 mm, catering to the usage habits of different users while maintaining consistency in coating thickness and precision.

Features

1. Coating film accuracy scale up to 0.1 micron 2. Capable of preparing wet film thickness of 20.6 microns 3. Offers three diameter specifications to choose from 4. Manufactured using stainless steel material 5. Accumulated 80 years of industry experience

Principle

The RDS wire-wound applicator employs a wire-winding production process, forming a uniform wet film coating on the substrate surface through precisely wound stainless steel wires, thereby achieving precise control over coating thickness.

Specifications

Production Process: Wire Wound, Wet Film Thickness: 20.6 μm, Diameter: 9.52 mm, Total Length: 400 mm, Coating Width: 300 mm, Grip Width: 50+50 mm, Material: Stainless Steel, Wire Diameter: 0.23 mm

Notice

• Please select the appropriate diameter specification based on usage habits. • Clean and maintain promptly after use. • Avoid contact with corrosive substances. • Store in a dry place to prevent moisture and rust.

Production process
Wire-wound Type
Wet film thickness
20.6μm
Rod diameter
9.52mm
Total length
400mm
Coating width
300mm
Hand width
50+50mm
Material
Stainless steel
Steel wire diameter
0.23mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
