Overview

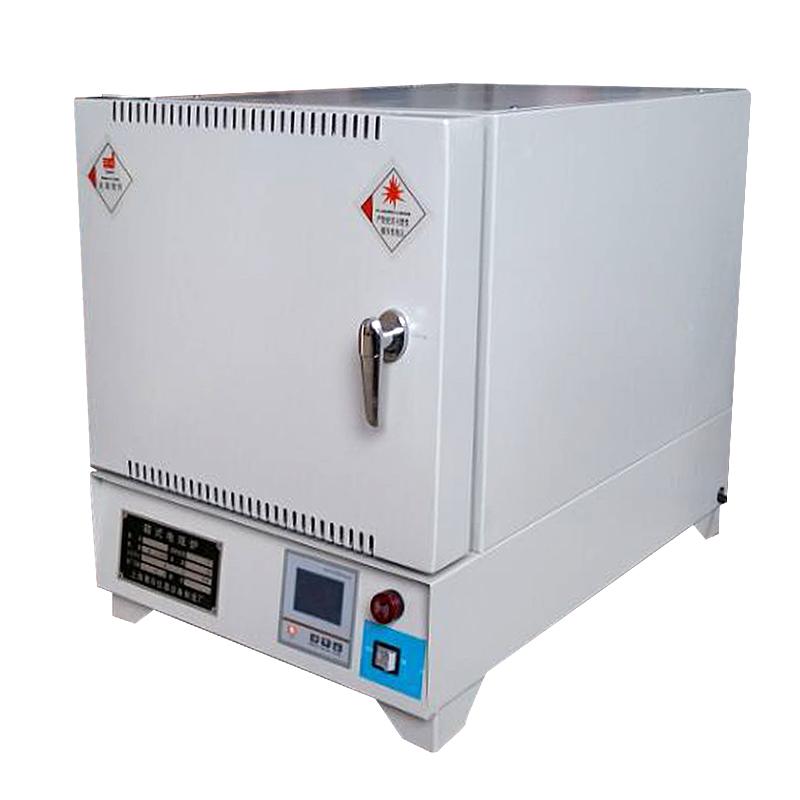

BOZHEN BZ-4-10P program temperature control muffle furnace adopts overall design and humanized menu design, equipped with LCD program control instrument, with high luminance, wide window digital display, clear and intuitive indication. Adopts industrial PID self-tuning control technology, supports 30 program programming settings, suitable for complex experimental processes, microcomputer intelligent control solves the temperature overshoot and other drawbacks, excellent temperature control effect. After setting the temperature, the instrument automatically controls heating and thermostatic, precise and stable temperature control, with fault sound and light alarm and over-temperature sound and light alarm function, and can automatically cut off the heating output.
Features
1. Adopt LCD program control instrument, high luminance and wide window digital display
2. Industrial PID self-tuning control technology, 30-stage programming setting
3. Microcomputer intelligent control to solve the problem of temperature overshoot
4. Fault sound and light alarm and over-temperature sound and light alarm function
5. Automatic cut off heating output protection
6. The outer box shell adopts cold plate and is treated with phosphoric acid film salt and then sprayed at high temperature
7. High aluminum liner furnace, good wear resistance
8.4-sided heating design
9. Built-in secondary over-temperature protection device, double insurance
Principle
The muffle furnace adopts PID Control system for temperature measurement through K-indexed Ni-Cr-Ni-Si Thermocouple. The system automatically controls the thermostatic process according to the set 30-stage program. When the temperature exceeds the set range, the over-temperature protection device will trigger the sound and light alarm and automatically cut off the heating output to ensure the safe operation of the equipment.
Applications
Sintering, heating, heat treatment in laboratories of coal, electric power, chemical industry, building materials, metallurgy, R & D institutions, Universities & colleges
Standards
The product information does not mention specific compliance standards
Steps
1. Set the required temperature parameters
2. Select or program a 30-segment program
3. Start the equipment to start heating
4. The system automatically controls the thermostatic process
5. Monitor the running status, and deal with abnormal alarms in time
Notice
• Power supply voltage 220V 50Hz before use
• Pay attention to the over-temperature alarm prompt and deal with abnormal situations in time
• Do not touch high temperature parts when the equipment is running
• Regularly check Thermocouple and terminal status
• Keep equipment well ventilated
• Device weight about 60KG when handling
