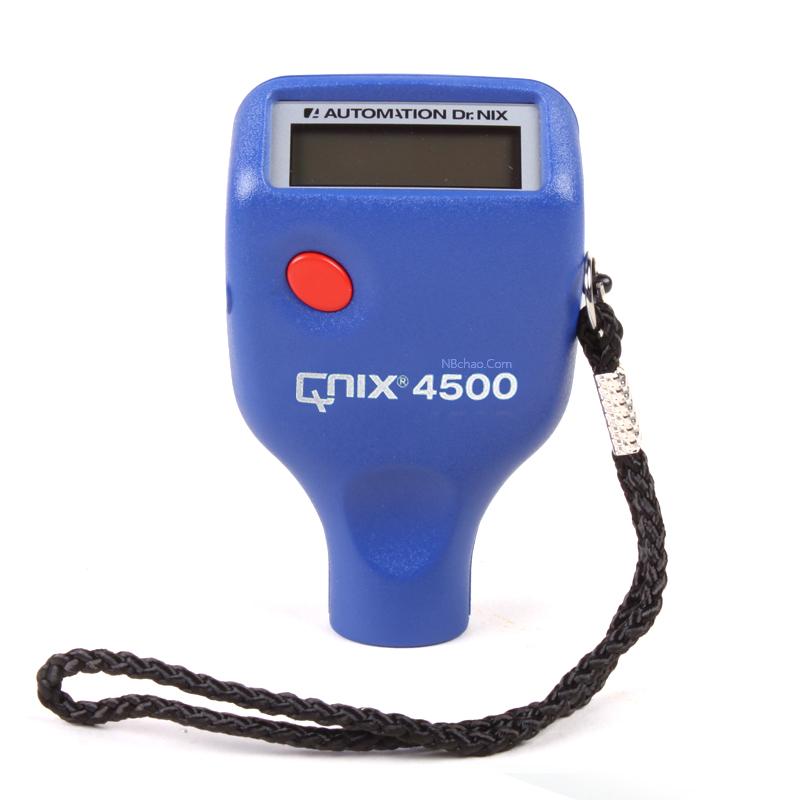

QNix QNix4500 Coating thickness Gauge magnetic Induction eddy Current dual-use integrated Probe

Name: QNix QNix4500 Coating thickness Gauge magnetic Induction eddy Current dual-use integrated Probe
Brand: Qnix
SKU: NB007962

Please contact customer service

Using magnetic Induction and eddy Current dual principle, Measurement range 0-3000μm, accuracy +/- 3%, automatically identify the matrix material, no need to calibrate only zero, easy to carry and lightweight.

Model

QNix4500

Get Quote

Category : Coating Thickness Gauge

Brand : Qnix

SKU : NB007962

Service :The delivery and service By NBCLab.Com

Overview

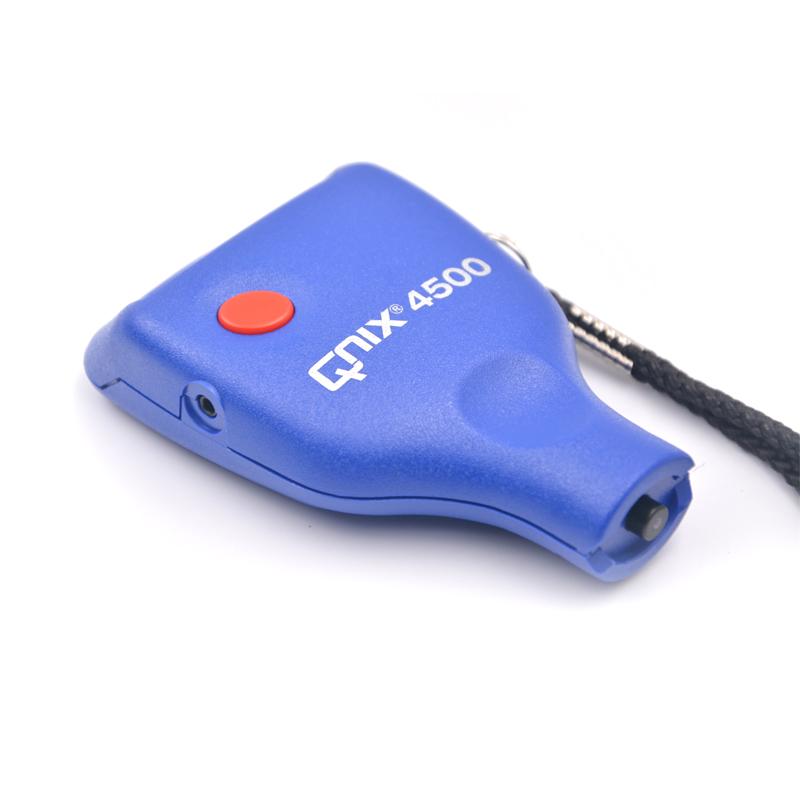

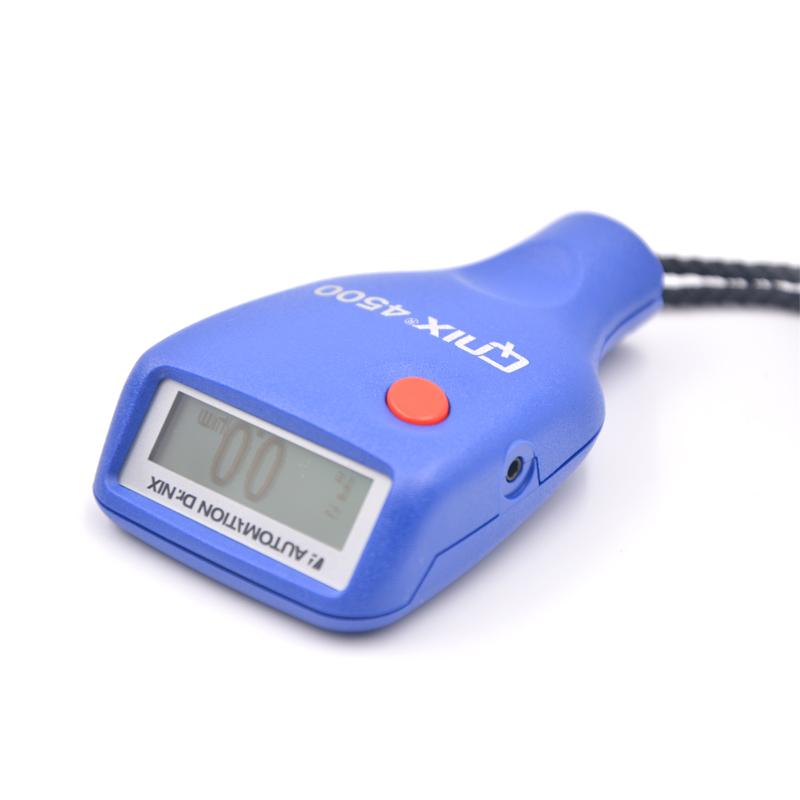

The QNix 4500 Coating thickness gauge is a magnetic Induction and eddy Current dual-use Coating thickness gauge with a standard version integrated Probe design. The instrument can measure magnetic substrates such as steel and coatings, oxide films, phosphating films and other coatings on nonmagnetic metal surfaces such as aluminum, copper, and stainless steel. It has the characteristics of simple operation, easy portability, and high accuracy. It is widely used in the fields of Coating and automotive painting.

Features

1. Just zero, no need to calibrate 2. Small size, easy to operate 3. One machine dual-purpose, automatic identification of the substrate 4. High accuracy 5. Cheap price

Principle

The QNix 4500 Coating thickness gauge uses magnetic Induction and eddy Current Measurement principles to automatically identify the substrate type and select the corresponding Measurement mode.

Applications

Coatings, car paintings

Standards

DIN EN ISO 2808、ISO 2178、ASTM B 499、ASTM D 7091、ISO 2360

Steps

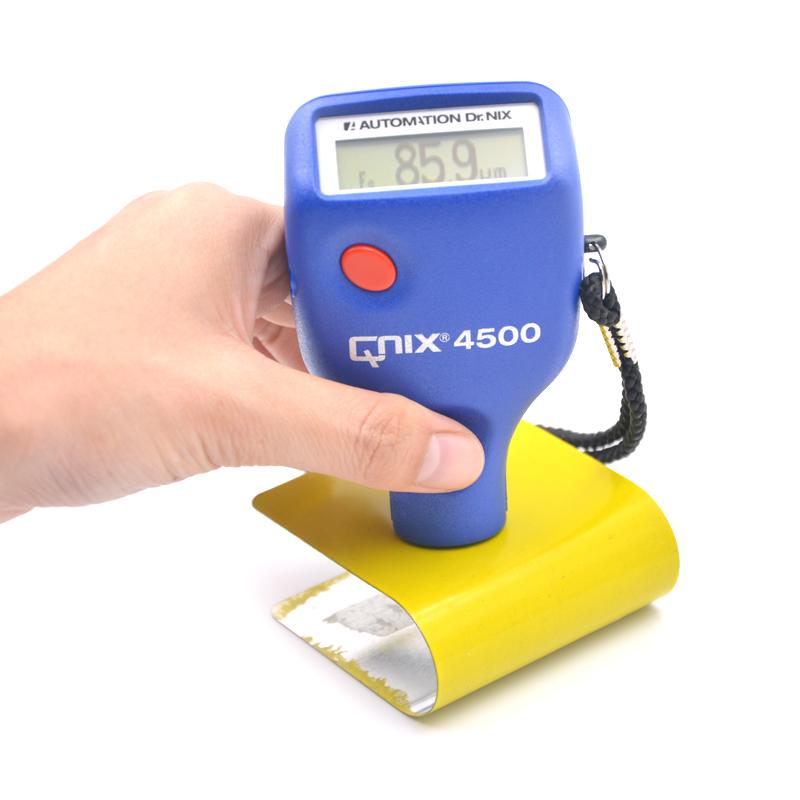

1. Zero operation

Notice

• When measuring, make sure that the diameter of the measurement surface is not less than φ 25mm • In curvature surface measurement, the radius of curvature of the convex surface is not less than 5mm, and the radius of curvature of the concave surface is not less than 25mm • Matrix thickness requirements: the thinnest magnetic substrate is 0.2mm, and the thinnest nonmagnetic substrate is 0.05mm.

Measurement mode
Magnetic Induction + eddy Current
Measurement Range
Fe：0~3000μm；NFe：0~3000μm
Display accuracy
0~999μm：0.1μm；≥1000μm：1μm
margin of error
±(3%+2μm)
minimum measurement surface
Φ 25mm
minimum radius of curvature
Convex: 5mm; Concave: 25mm
minimum substrate thickness
Fe：0.2mm；NFe：0.05mm
display screen
liquid crystal display
Operating temperature
0~50℃
Storage temperature
-10~60℃
Meet the standard
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091,SO 2360
power supply
2 * 1.5V AA battery
Dimension
100*60*27mm
weight
105g
unit display
µm/mil

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
