Overview
American RDS Mayer Rods model 35 #3/8 is made of 303 stainless steel with wear resistance and corrosion resistance. By winding 0.89mm diameter stainless steel wire, it can prepare a film with a thickness of 80 microns. The product has a rod length of 400mm, an application width of 300mm, and a 50mm hand grip at both ends. It is a high-end stainless steel Mayer Rods widely used by users at home and abroad.
Features
1. Made of 303 stainless steel with wear resistance and corrosion resistance
2. Winding 0.89mm diameter stainless steel wire, prepative 80 micron thickness film
3. Rod length 400mm, application width 300mm
4. Each end has a 50mm hand-held part, which is easy to operate
5. High-end products widely used by domestic and foreign users
Principle

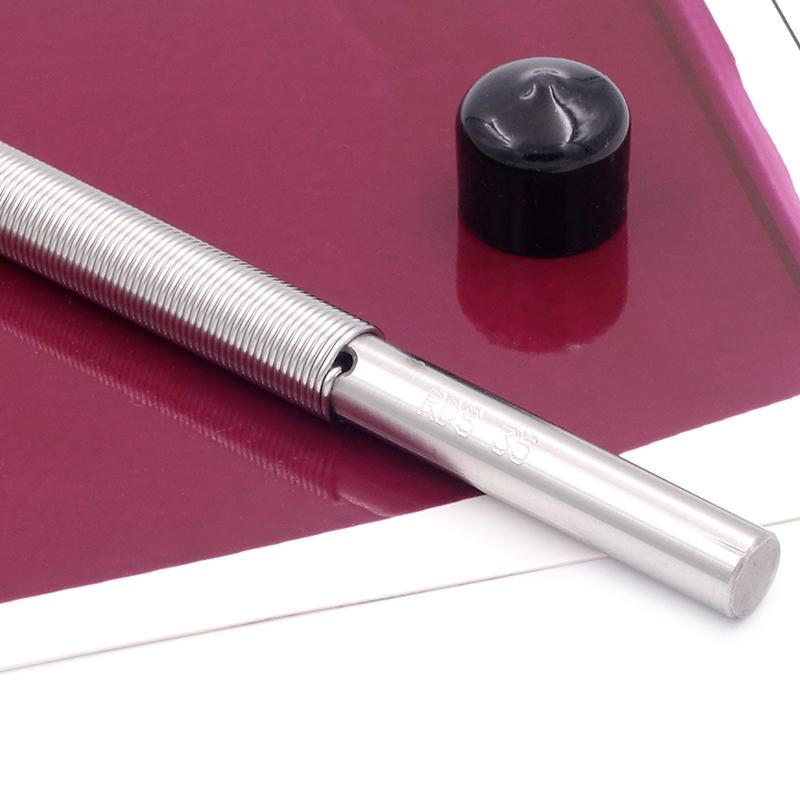

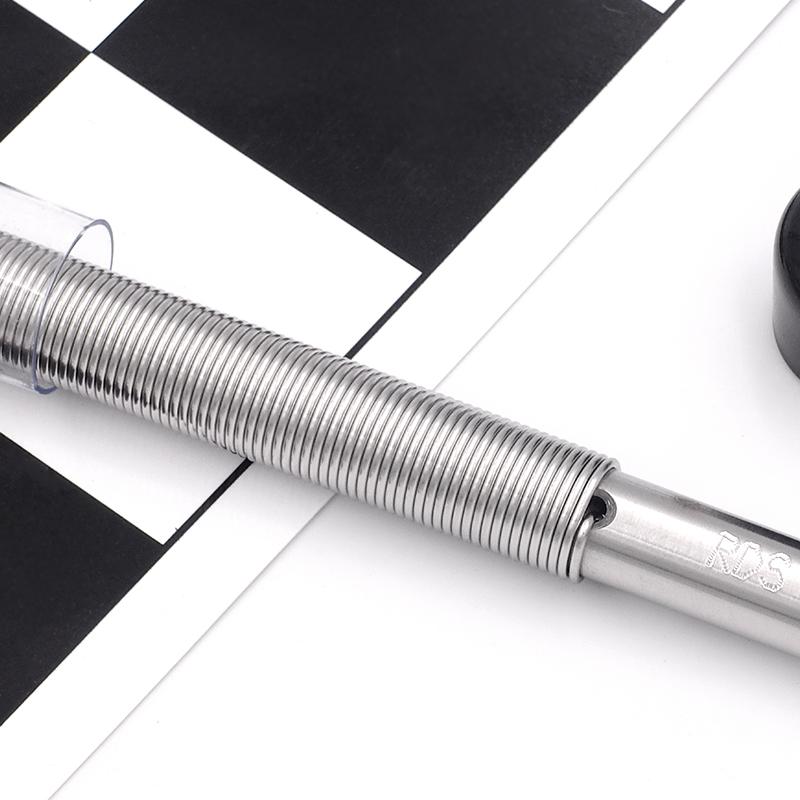

The wire rod coating applicator uses a wire-wound production process. By winding a stainless steel wire of a specific diameter on the surface of the rod body, when rolling on the surface of the substrate, the steel wire gap controls the Coating retention amount, thereby preparing a precise thickness of wet-film.
Applications
Coatings, inks, Adhesives, Electronic Materials, Chemical R & D, mass testing
Specifications
Production process: wire-wound, wet film thickness: 80.0μm, diameter: 9.52mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: stainless steel, wire diameter: 0.89mm
