Overview

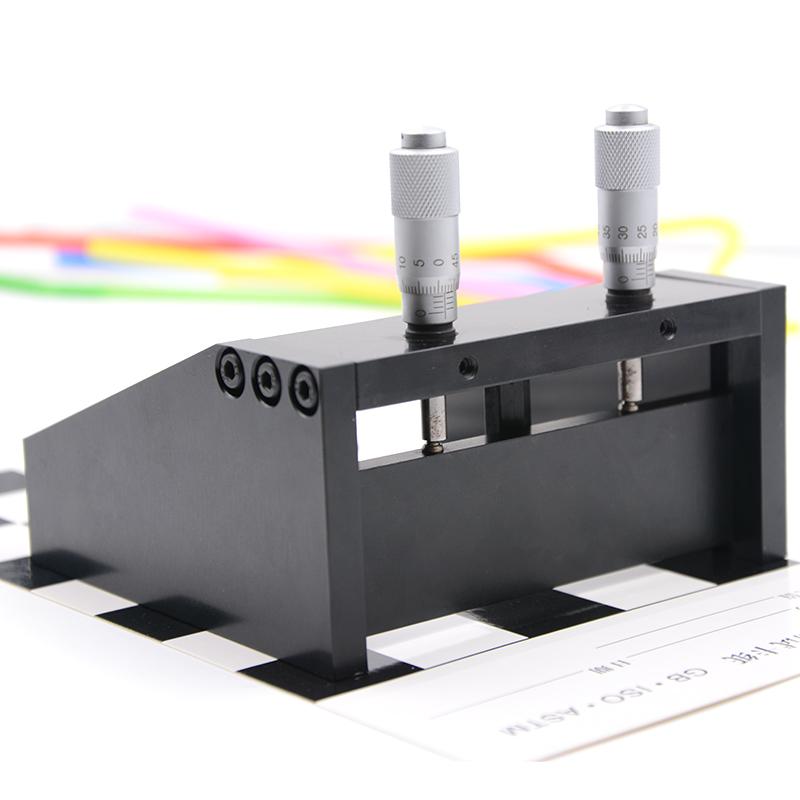

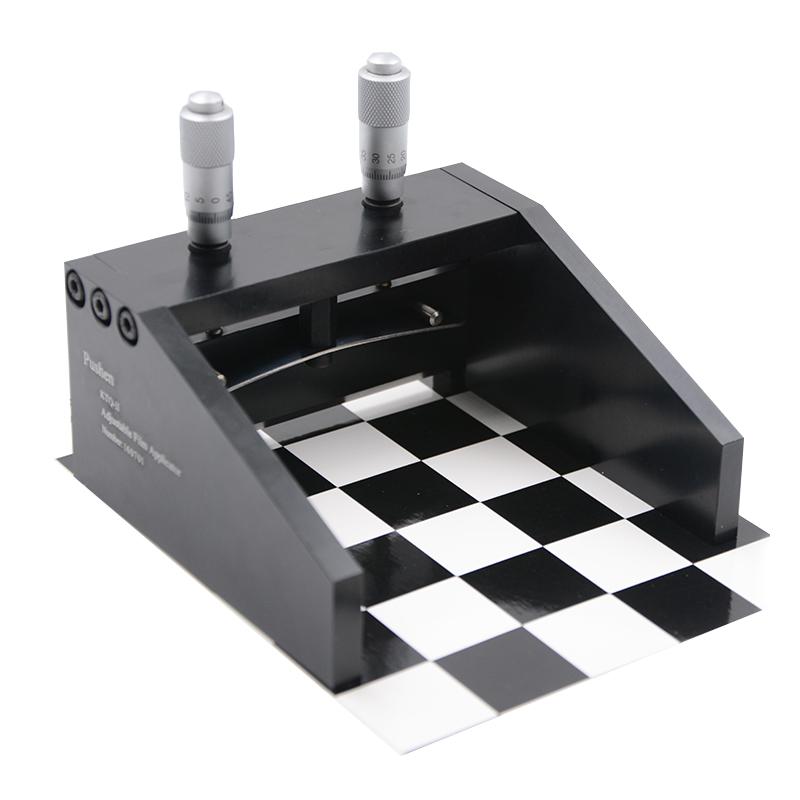

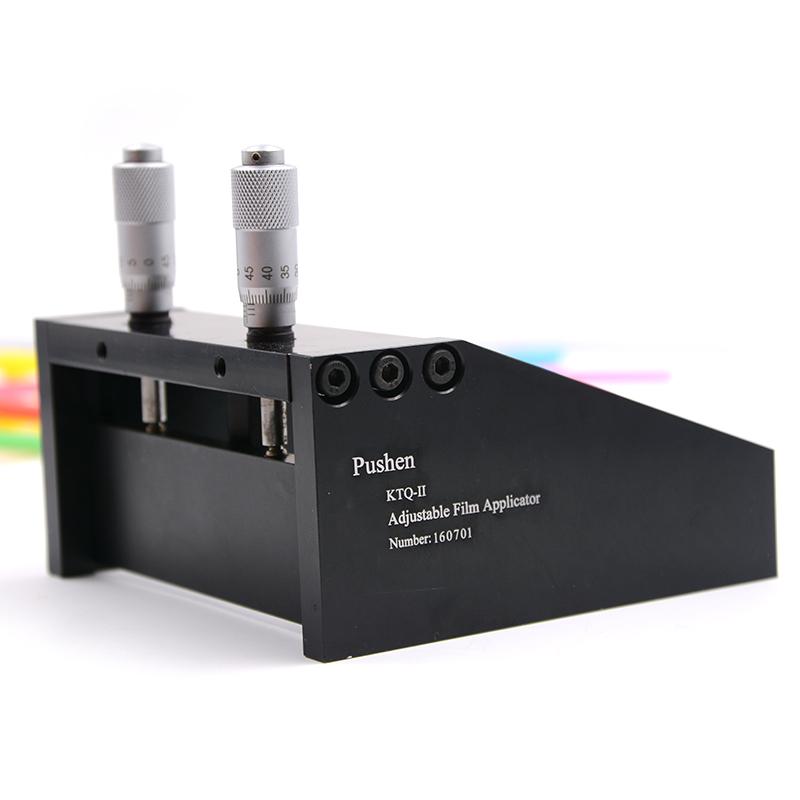

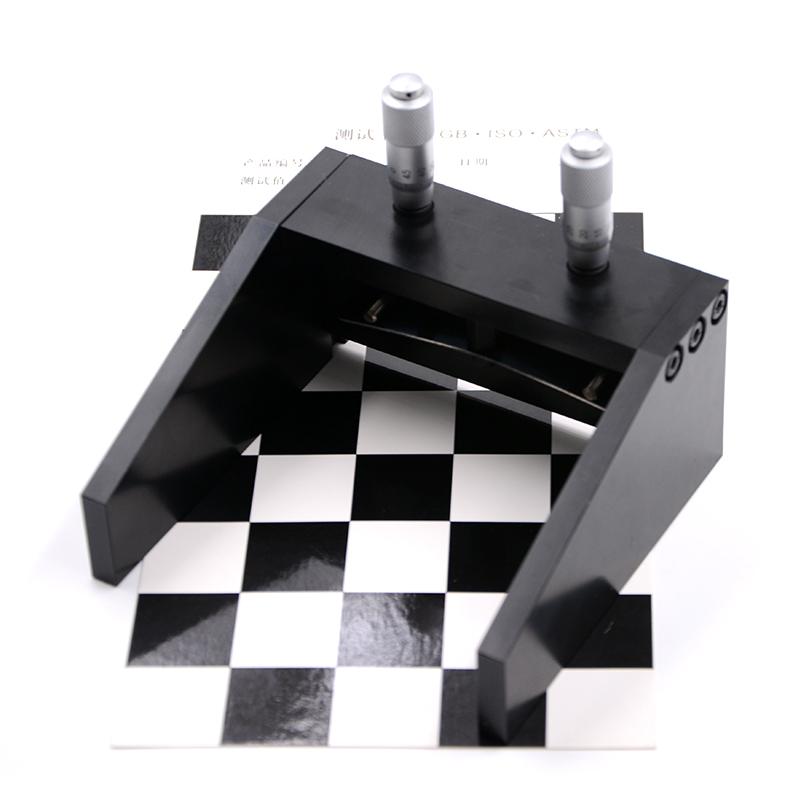

The PUSHEN KTQ-55mm Micrometer Film Applicator is an adjustable gap coating applicator for uniform film on flat substrates. The film thickness ranges from 0 to 3500 μm and the application width is 55mm, making it suitable for accurate evaluation of film thickness nuances.
Features
1. Can be used to achieve uniform film thickness on a flat substrate
2, can reduce the need for a variety of fixed gap coating applicators, by adjusting the differential control drawdown blade clearance
3. The adjustment gap is between 0 and 3500 microns, adjusted every 10 microns
4, with extended edge, can be folded in the film process Coating, can be manually Spreader high concentration and high viscosity liquid on a flat substrate
Principle
The drawdown blade gap is controlled by adjusting the differentiator to achieve uniform film on a planar substrate. The ratio of wet film thickness to film blade gap depends on factors such as material properties, liquid viscosity, applied force, film speed, and film edge geometry.
Steps
1. Place the coating applicator on a completely flat surface of the Testing substrate and adjust the drawdown blade to the required gap (should be twice the required wet film thickness)
2. Pour a small amount of test samples between the front end plates of the film cutter and move at a slow and uniform speed of 1~ 2cm/s
3. Move the coating applicator on the substrate surface until the liquid is fully coated and remove the remaining liquid
4. Use wet film thickness gauge measurement when coating, adjust the gap until the desired wet film thickness is reached
Notice
• Wash with appropriate solvent immediately after use
• Both ends of the drawdown blade move in the groove, and the groove needs to be kept free of test sample material

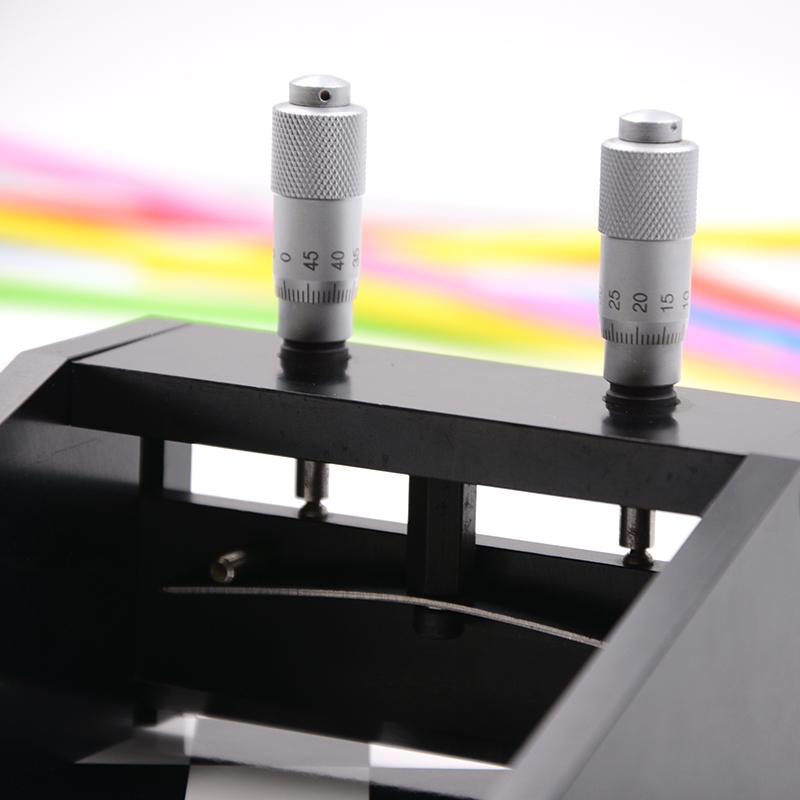

• The differentiator occasionally needs to be repositioned, which can be adjusted and corrected by loosening the hidden fixing screw
• The wet film thickness ratio is affected by material, viscosity, applied force, speed and edge geometry
