Overview

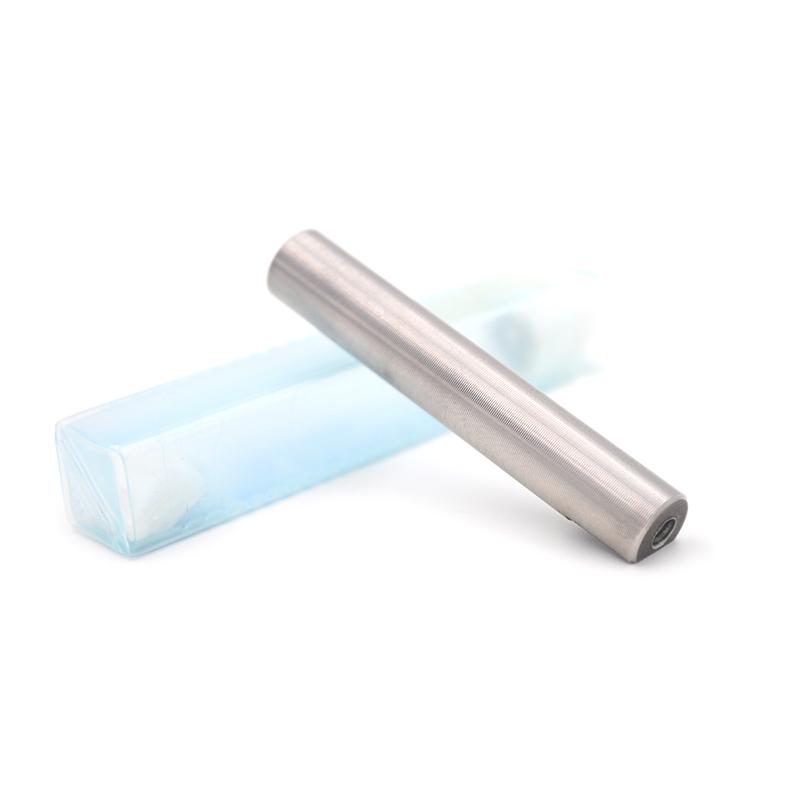

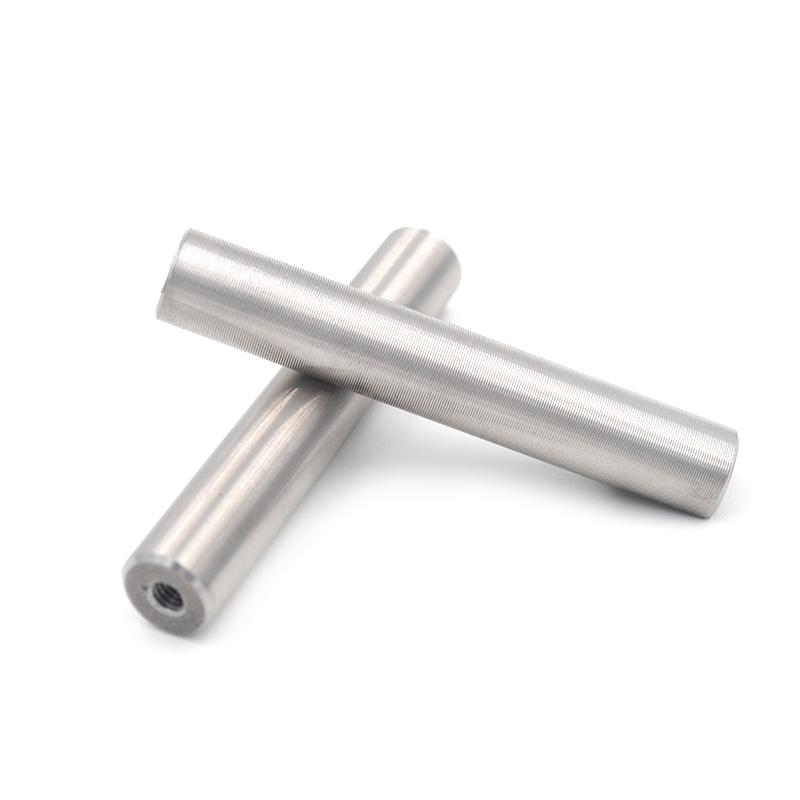

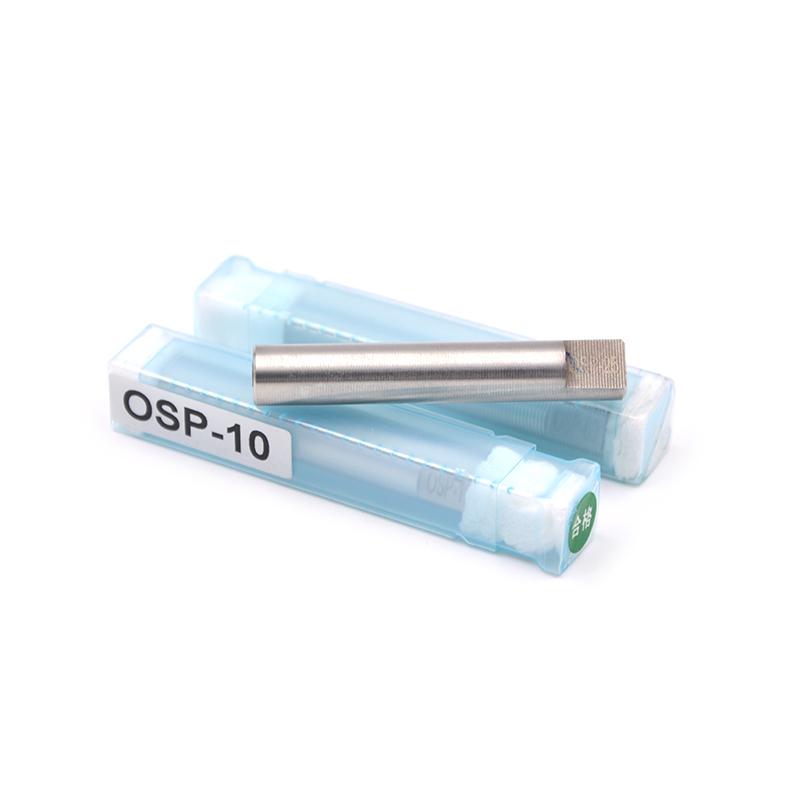

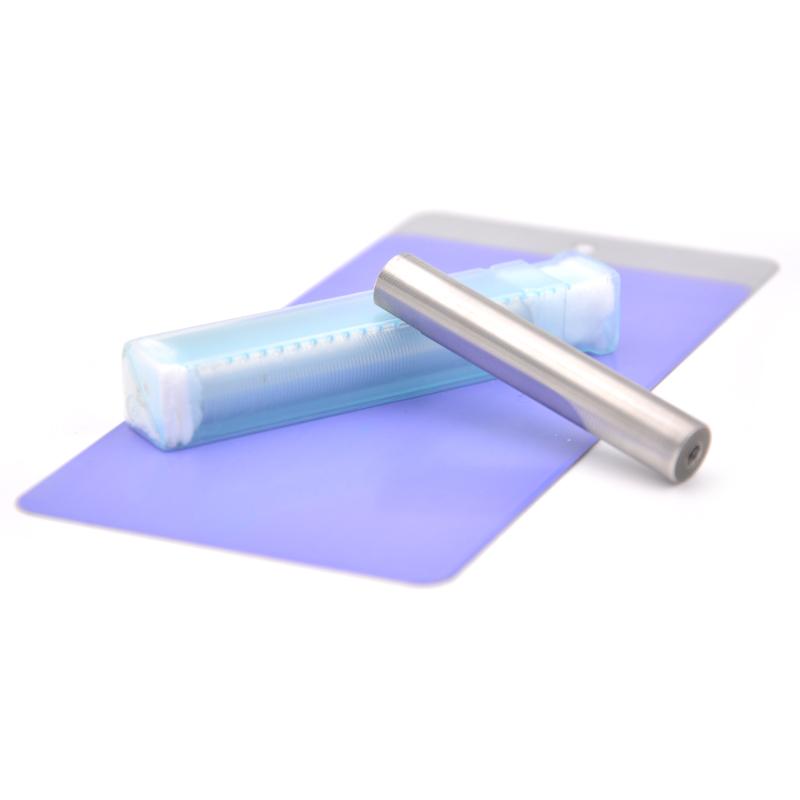

The OSP-150/60 coating rod is a professional experimental tool of the Japanese OSP brand, which is mainly used for Coating quality control and preparing coating samples of specific thickness in research experiments. This model is the larger model in the OSP Applicator rod series, which can Spreader 150 micron wet film thickness, application width is 60mm, simple and convenient operation, and provides convenience for the experimental process.
Features
1. Adopt formed production process to ensure uniform Spreader;
2. The wet film thickness is 150 microns, which meets the requirements of thicker coating prepative;
3. The application width is 60mm, suitable for larger area Spreaders;
4. Material is 304 stainless steel, corrosion resistance and long service life;
5. With a diameter of 10mm and a total length of 60mm, the design is reasonable and easy to operate.
Principle
The coating rod is uniformly coated on the surface of the substrate through a formed process to form a wet-film coating of a specific thickness. When used, the operator places the Coating between the rod and the substrate, and through uniform pressure and movement, the Coating forms a uniform coating with a thickness of 150 microns on the substrate, providing a standard sample for subsequent performance testing and research.
Applications
Coating quality control, coating research test, hiding power test, opacity test, scruf resistance evaluation
Steps
1. Prepare the Substrate and Coatings to be Spreader;
2. Place the coating rod at the starting position of the substrate;
3. Coating between coating rod and substrate;
4. Uniform pressure and smooth movement of the coating rod;
5. After completing the Spreader, check whether the uniformity and thickness of the coating meet the requirements.
Notice
• Ensure that the surface of the coating rod is clean and free of pollution before use;
• Spreader should maintain uniform pressure and traverse speed;
• Avoid scratching the surface of the coating rod with sharp objects;
• It should be cleaned and maintained in time after use.
• Experimental use only, operate according to specifications
