Overview

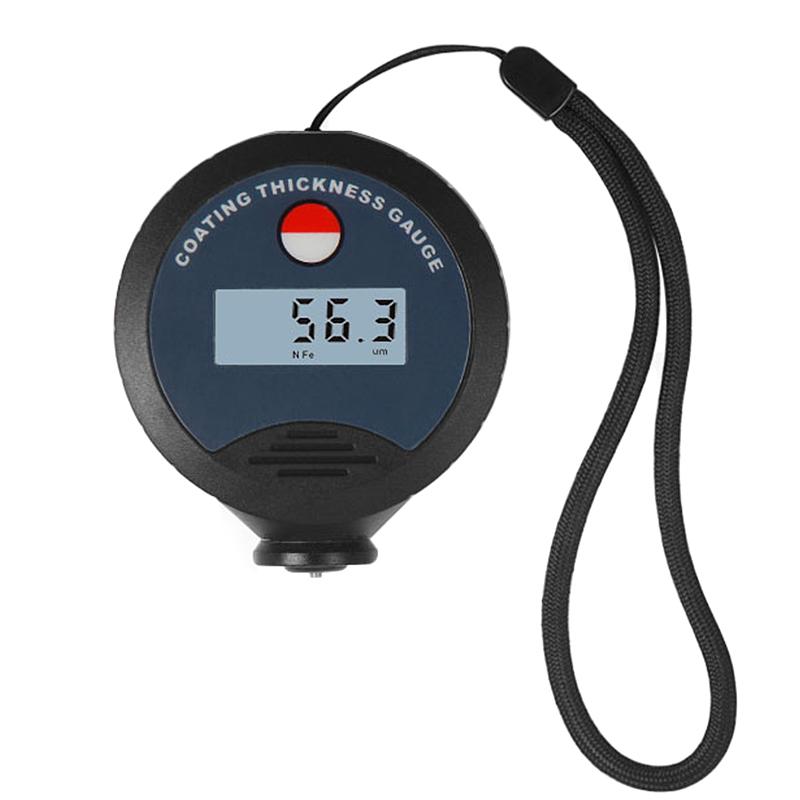

The AMITTARI AC-990u Coating thickness gauge is a nondestructive measuring instrument with small measurement error, high Reliability, Good Stability and easy operation. It adopts the principle of magnetic Induction and eddy Current to accurately measure the thickness without damaging the measured body.
Features
1. Probe with wear-resistant hard metal probe for constant compression and stable sampling
2. Measurement range, high resolution
3. Automatic memory calibrated value, easy to use
4. Integrated structure, small size and light weight
5. Digital backlight display, ignoring poor
6. Utilize optional RS232C software and cables to communicate with PC computers
7. Equipped with automatic shutdown to achieve power saving function
Principle
Using the principle of magnetic Induction and eddy Current, combined with computer technology and nondestructive detection technology, the thickness can be accurately measured without damaging the subject.
Applications
F type Probe: platings, paints layer, enamel layer, aluminum tile, copper tile, Babbitt tile, phosphating layer, Paper thickness measurement, hull paints and underwater structural parts attachment thickness measurement; NF type Probe: Insulation coating thickness measurement on non-magnetically conductive metal substrate, anodic oxidation layer thickness measurement of aluminum or aluminum alloy materials
Standards
ISO2178、ISO2360、GB4956、GB4957
Steps
1. Turn on the power button to start the instrument
2. Align the measurement Sensor to the measured surface
3. Perform single or continuous measurements
4. Connect the computer via USB interface for data processing (optional)
5. Automatic shutdown after use
Notice
* Probe vertical to the measured surface during measurement
* Ensure that the measurement surface is not less than φ 26mm
* Note that the minimum thickness of the substrate is 0.3mm.
* Operating temperature range is 0~ 50 ℃
* relative humidity should be less than 95%
* Use appropriate radius of curvature for measurement
Regularly check the battery level
