Overview

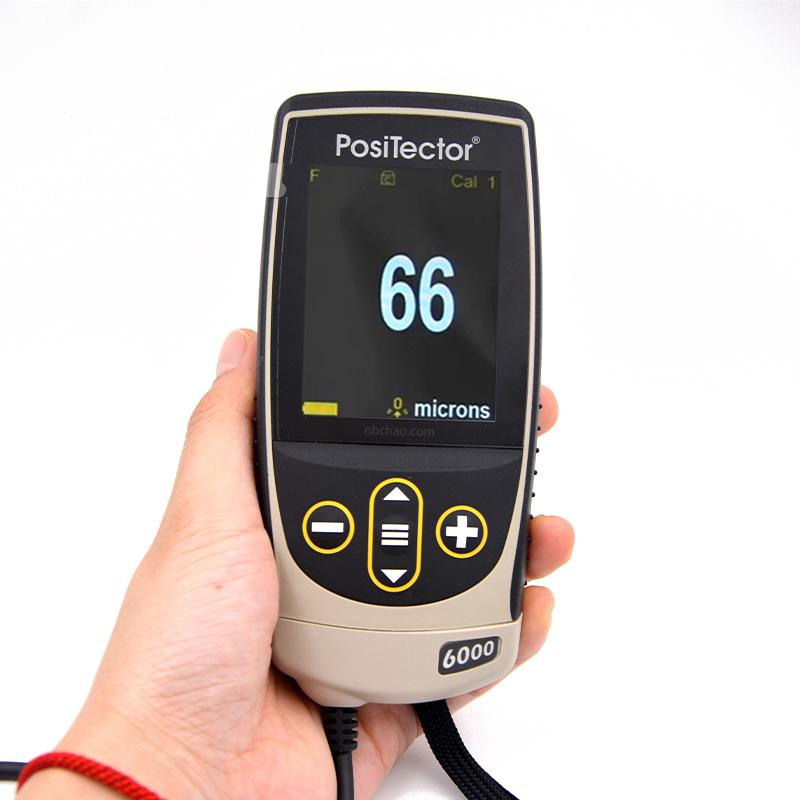

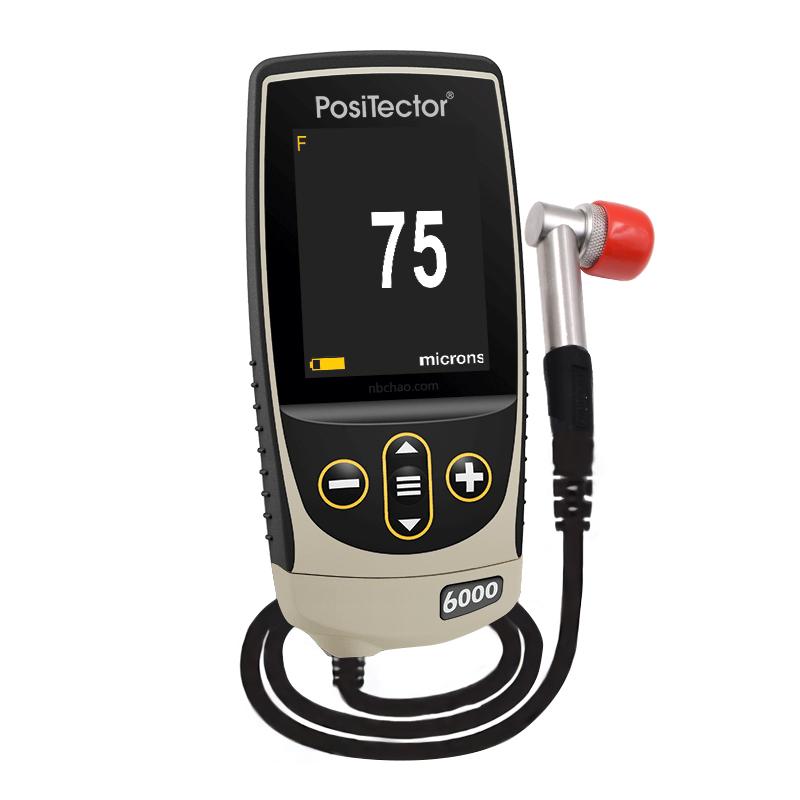

The American Defelsko PosiTector 6000 FRS1 Coating thickness gauge is a standard instrument for the measurement of ferrous metal substrate nonmagnetic coatings. Measurement range 0~ 1500 μm. The thickness gauge is designed with 90 degree Probe, which has anti-wear advantages and supports backlight operation.
Features
1. Measurement range 0~ 1500μm, resolution 0.1μm
2. Equipped with FRS1 Probe (90 ° universal type), anti-wear and durable

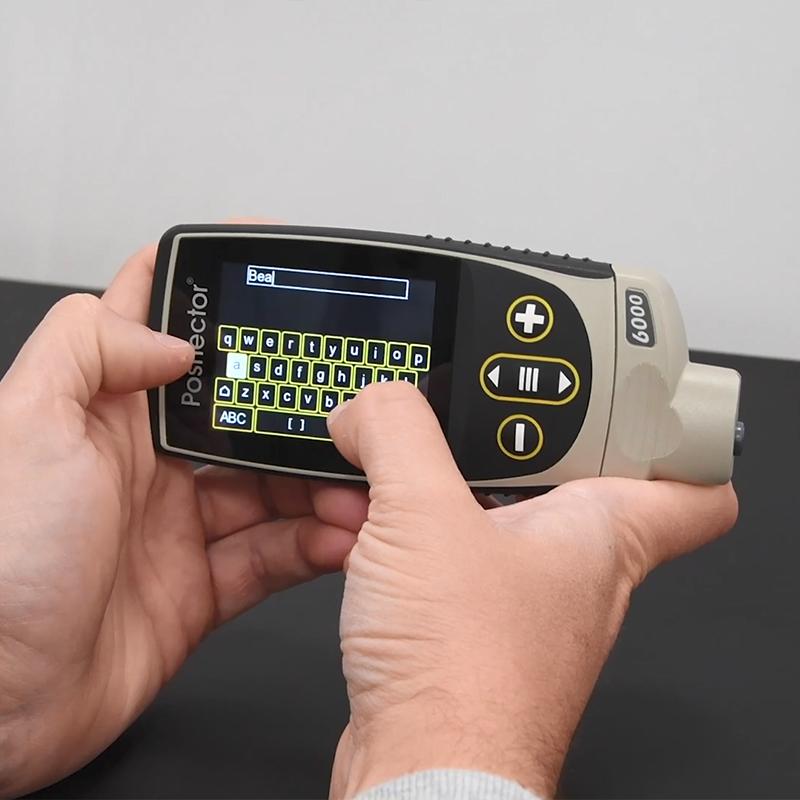

3.2.8-Inch Color Touchscreen with Backlight Support
4. Data storage capacity 1000 Measured values, screen image save 100
5. Complete statistical functions, including measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
6. Protection Rating IP65, Measurement speed 60 + readings per minute
7. Support Chinese and English system languages, with PosiSoft software suite
Principle
Coating thickness measurement on ferrous metal substrate using magnetic Induction principle.
Applications
Ferrous metal substrate, nonmagnetic coating environment
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Select the system language (Chinese or English)
3. Measurement on nonmagnetic coating surfaces of ferrous metal substrates
4. Connect the computer through the USB port and process the data using the PosiSoft software suite
Notice
• Only for nonmagnetic coating measurements on ferrous metal substrates
• Confirm that the battery is sufficient before use
• Avoid Probe abrasion and affect Measurement accuracy
• Be careful not to exceed the capacity limit of 1000 Measured values when storing data
