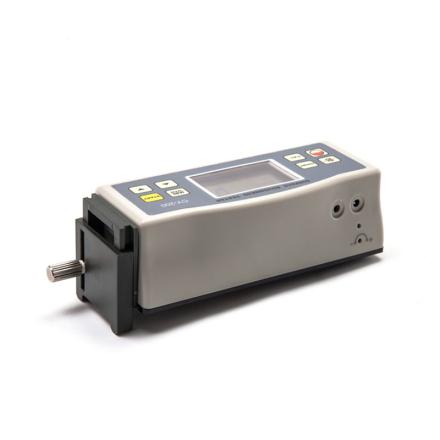

| Product Name | HBO CY-200 Roughness Gauge | Ipre RA150 Asperity Profile Gauge |
| Product Price | $927.00 | $12184.00 |
| Details | Details | |
| Model comparison | ||
| Principle | Contact | Contact |
| Instrument Type | Handheld | desktop |
| Display Type | Digital | Digital |
| Measurement Function | Surface Roughness | Surface Roughness Waviness Contour/Form |
| Measurement parameters | Ra Rz | Ra Rz Rq Rt Rp Rv RSm Rmr(c) Others |
| Test object | General workpiece | General workpiece |
| Measuring Range | 5-50μm | >50μm |
| Accuracy | ±10% | Others |
| Sampling Length | Multi-range | Multi-range |
| Sensor Configuration | Standard | Standard |
| Applicable Workpiece | Flat Surface/Shaft | Flat Surface/Shaft Groove/Slot Curved Surface |
| Parameter comparison | ||
| display mode | Blue backlight, 4-digit display, 10mm LCD | |
| Measurement parameter | Ra、Rz | |
| measurement Range | Ra: 0.05~10.00 um / 1.000~400.0 uinch、Rz: 0.020~100.0 um / 0.780~4000 uinch | |
| resolution | 0.001 um when the measurement value < 10 um, 0.01 um when the measurement value 10 um ≤ measurement value ≤ 100 um, 0.1 um when the measurement value ≥ 100 um | |
| Indication Error | Not more than +/- 10% | |
| Indication variability | Not more than 6% | |
| Sampling length | 0.25mm，0.8mm，2.5mm | |
| evaluation length | 1~ 5 L optional | |
| Sensor radius | 10 um | |
| Sensor material | diamond | |
| Sensor force measurement | 16 mN(1.6 gf) | |
| Sensor Angle | 90° | |
| Sensor measurement principle | inductive | |
| Sensor longitudinal radius | 48mm | |
| Maximum Drive Travel | 17.5mm / 0.7 inch | |
| When driving speed returns | Vt = 1mm/s | |
| power supply | Built-in ion rechargeable battery | |
| dimensions | 140 * 52 * 48mm | |
| Product weight | 420 g | |
| Operating Conditions | Temperature: 0~ 50℃ Humidity: < 80% RH | |
