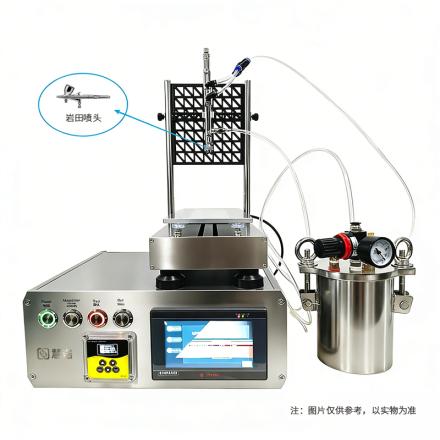

Application of the AFINO PTM1100/01 Automatic Spraying Machine in Automotive Painting Experiments

This article introduces the application of the Huinuo PTM1100/01 automatic spraying machine in automotive paint spraying experiments. Compared with manual spraying, the machine can fix parameters such as the spray path, speed, paint output, and air pressure, thereby improving spraying uniformity and repeatability. The thickness deviation of the samples can be controlled within ±2 micrometers. The article provides a detailed explanation of the equipment parameters (e.g., spraying area, nozzle diameter, air pressure range, etc.) and the methods for debugging key parameters (e.g., spray head height, moving speed, air pressure, and baseplate heating). It also includes examples such as clearcoat spraying, multi-layer waterborne primer spraying, and formulation screening, along with operational precautions and a summary.
