Overview

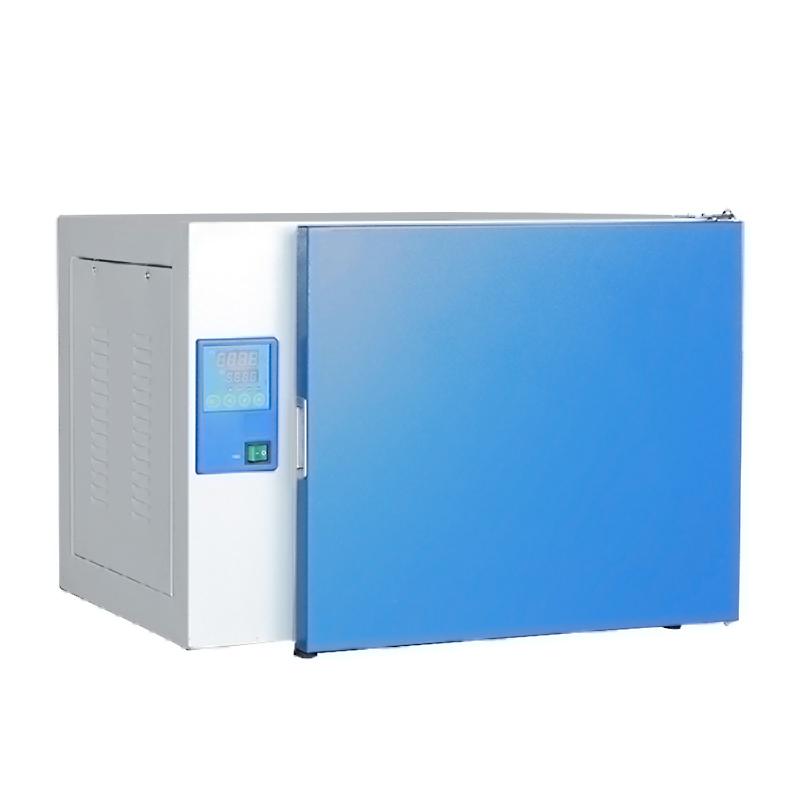

YIHENG DHP-9082 Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller, with accurate temperature control and small fluctuation, with timing function. The cabinet adopts mirror stainless steel liner and electric heating film Heating mode, and the heating speed is fast and uniform. It is suitable for experimental environments such as cell foster.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection air duct system, improve Temperature Response Speed, improve Temperature uniformity and reduce temperature fluctuation.
3. Glass door inside the door, easy to observe, Glass door open automatically stop breeze circulation and heating, to avoid temperature overshoot.
4. Heating mode of mirror stainless steel liner and electric heating film, heating speed is fast and uniform.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure safety.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. Automatic control of circulating fan speed, reduce wind speed when thermostatic, avoid sample volatilization.
8. Multi-stage programmable controller (optional), LCD display, menu operation, preset 7 sets of 63-step programs.
9. Safety features include independent temperature limit alarm (optional), high/low temperature and over-temperature alarm.
10. UV sterilization system (optional), regularly disinfect the box to prevent contamination.
Principle
The incubator precisely adjusts the temperature through a fuzzy PID controller, adopts a forced convection air duct system and an electric heating film Heating mode for fast and uniform heating. The circulating fan speed is automatically controlled to reduce the wind speed in the thermostatic state to optimize the cell growth environment. Optional multi-stage programmable controller can automatically control parameters such as temperature, wind speed and time.
Applications
Cell fostering, biological experiment, microbial fostering, scientific research and education
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃ and temperature parameters.
3. Optional setting timing function or multi-segment program.
4. Start the device and monitor Temperature Uniformity +/- 1.5 ° C and Fluctuation +/- 0.5 ° C.
5. Turn off the power after use.
Notice
• Power supply voltage check before use is AC 220V 50Hz.
• Avoid running under overtemperature conditions, and pay attention to the status of the independent temperature limit alarm system (optional).
• Glass door opens, circulation and heating stop automatically to prevent temperature overshoot.
• Regularly clean the liner, optional ultraviolet sterilization system for disinfection.
• Pay attention to the weight when handling, Net weight 38Kg, gross weight 46Kg.
