Overview

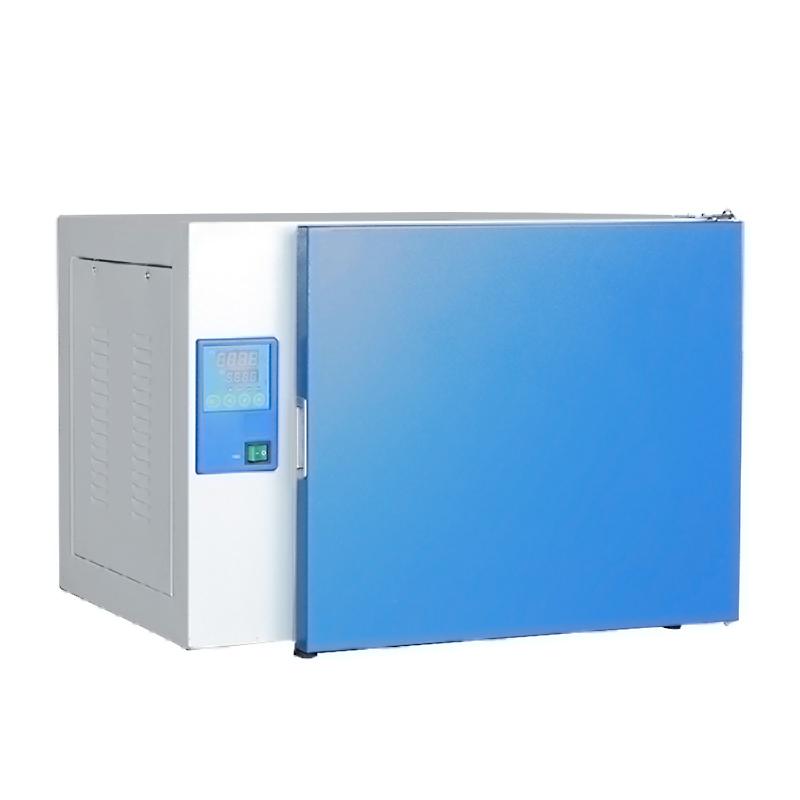

YIHENG DHP-9082B Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller, with accurate temperature control and small fluctuation, with timing function. The cabinet adopts mirror stainless steel liner and electric heating film Heating mode, the heating speed is fast and uniform, and it is suitable for experimental environments such as cell foster.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection air duct system, improve Temperature Response Speed, improve Temperature uniformity and reduce temperature fluctuation.
3. Glass door inside the door, easy to observe, Glass door open when the breeze circulation and heating automatically stop, no temperature overshoot.
4. Mirror stainless steel liner, Electric heating film Heating mode, heating speed, uniform heating in the box.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure safety.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. The speed of the circulating fan is automatically controlled, and the speed is reduced when the thermostatic is used to avoid the volatilization of the sample.
8. Multi-stage programmable controller (optional), multi-stage temperature, circulating wind speed, time and heating rate and other parameters can be programmed, and the automatic function is preset.
9. Safety functions include independent temperature limit alarm (optional), sound and light alarm, temperature deviation and over-temperature alarm.
10. UV sterilization system (optional), regularly disinfect the box to prevent contamination.
Principle
The incubator precisely adjusts the temperature through the fuzzy PID controller, and uses the electric heating film Heating mode to quickly and evenly heat the space in the box. The forced convection air duct system promotes air circulation and improves temperature Response and uniformity. The circulating fan speed is automatically adjusted according to the temperature state, and the wind speed is reduced when thermostatic to avoid sample volatilization. Optional multi-stage programmable controller can be used to realize automatic control of complex test processes.
Applications
Cell fostering, experimental research
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃, Temperature resolution 0.1 ℃.
3. Optional multi-stage programmable controller to set temperature, wind speed, time and other parameters.
4. Start the device and observe Temperature Uniformity +/- 1.5 ° C and Fluctuation +/- 0.5 ° C.
5. Use the shelf to place the sample.
6. Optional UV sterilization system for regular disinfection.
Notice
• Glass doors open, breeze circulation and heating automatically stop to avoid temperature overshoot.
• Independent temperature limit alarm system is optional to ensure safe operation.
• Automatic control of circulating fan speed to avoid sample volatilization caused by excessive air volume.
• Multi-stage programmable controller is optional to simplify the complex test process.
• UV sterilization system is optional, regular disinfection to prevent pollution.
• Power supply voltage and Power requirements, input Power 400W.
