Overview

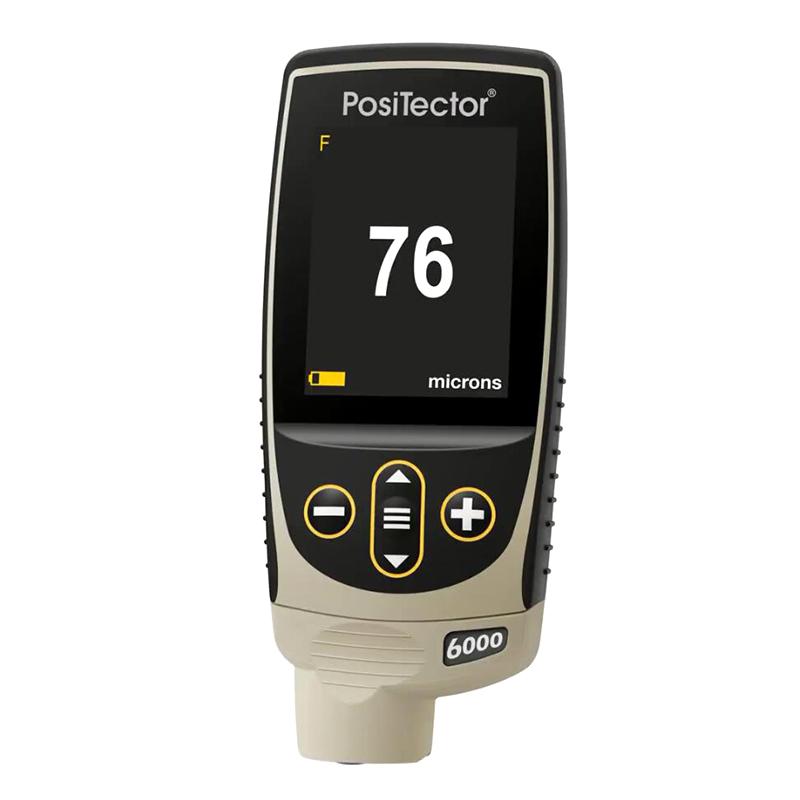

The Defelsko PosiTector 6000 FT3 Coating thickness gauge is an instrument for the measurement of thicker nonmagnetic coatings. The maximum measurement film thickness is 6mm. It adopts the principle of electromagnetic induction and is suitable for the thickness measurement of iron metal substrates. The instrument adopts an integrated structure, built-in Probe, easy to operate with one hand, and the shell meets the IP65 rating. It is resistant to solvents, acids, oils, water and dust and rain. It supports screenshots, backlighting and inverted display functions. It is suitable for many occasions.
Features
1. Measurement range, up to 0~ 6000μm
2. Adopt an integrated structure, built-in Probe, easy to operate with one hand
3. The shell meets IP65 Protection Rating, resistant to solvents, acids, oils, water and dust and rain
4. Support screenshots, backlighting and inverted display functions
5. Equipped with 2.8-inch Color Touchscreen
6. With statistical functions, including measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
7. Support icon function
8. Large data storage capacity, can store 250,000 Measured values and 1000 packets
9. Measurement speed up to 180 + readings per minute
10. Support USB and Bluetooth Interface
11. Equipped with PosiSoft software suite
12. The system supports Chinese and English languages
Principle
PosiTector 6000 FT3 Coating thickness gauge uses electromagnetic induction principle for measurement, suitable for thickness measurement of nonmagnetic coatings on ferrous metal substrates.
Applications
Ferrous metal substrate nonmagnetic coating environment
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Ensure that the instrument is used in a ferrous metal substrate nonmagnetic coating environment
2. Turn on the instrument power
3. Use Touchscreen for relevant settings

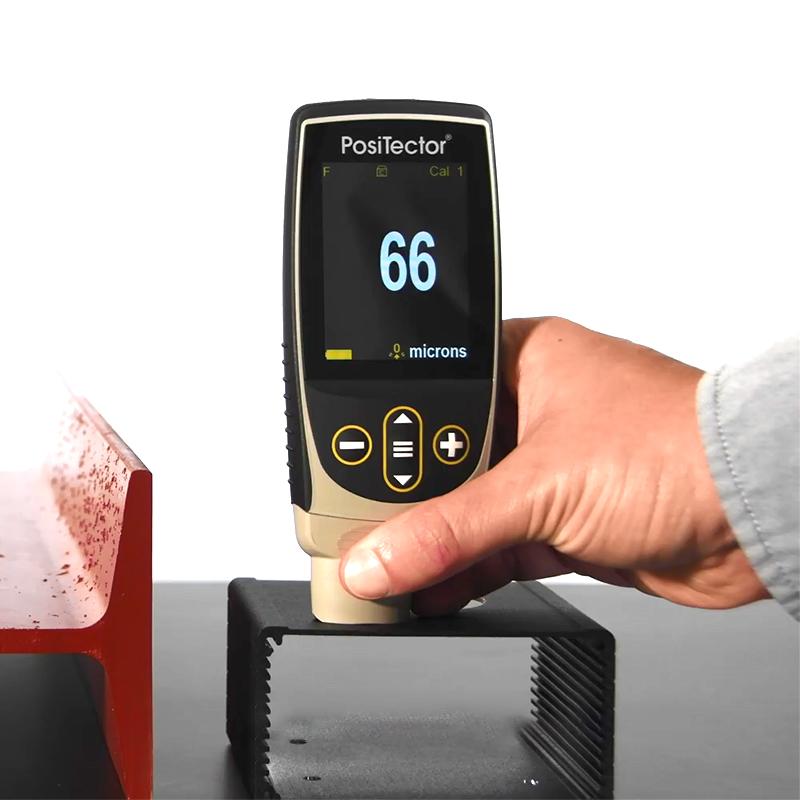

4. Probe the instrument to the surface of the coating to be tested for measurement
5. View measurement results and statistics through the screen
6. Option to save screen image or measurement data
7. Transfer data to the supporting software via USB or Bluetooth interface
Notice
Only for nonmagnetic coating measurements on ferrous metal substrates
• Make sure the instrument calibrating certificate is valid before use
• Pay attention to keep the instrument clean and avoid direct contact with strong corrosion substances
• Replace the battery in time when the battery is low
• Pay attention to group management when storing data
• Follow the instructions when using the supporting software
