Overview
The Defelsko PosiTector 6000 FTS1 steel plate Coating thickness gauge is a split Coating thickness gauge for external thick coatings. Measurement range is 0~ 6mm, mainly suitable for epoxy, rubber, foam fire-proof coatings and other fields. The instrument uses a high-contrast color LCD screen, which can store 1000 data, supports USB and Bluetooth interfaces to connect to a PC to transmit data, and can realize remote measurement by extending the length of the Probe cable.
Features

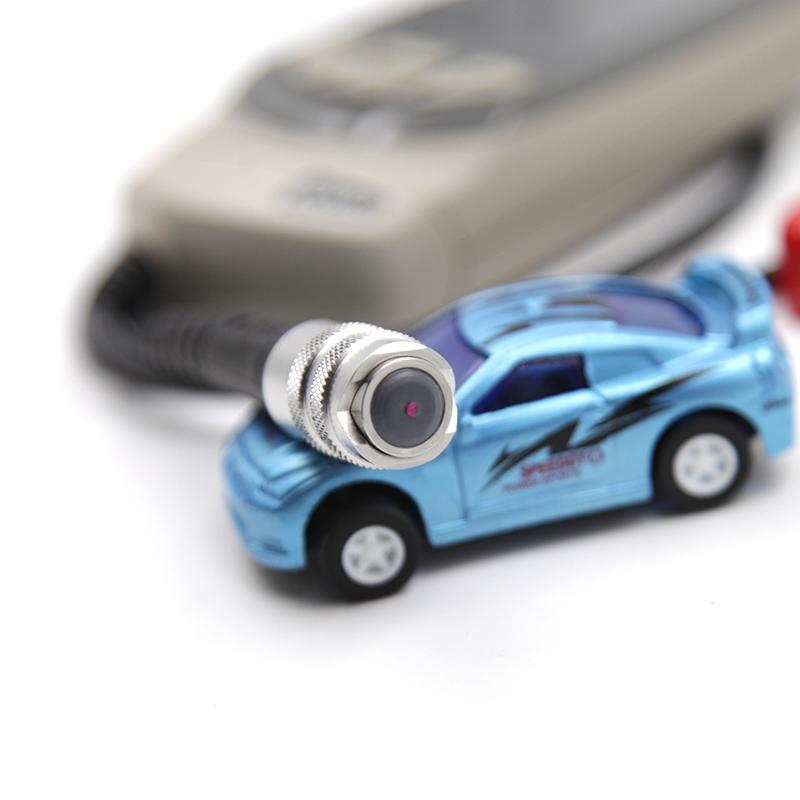

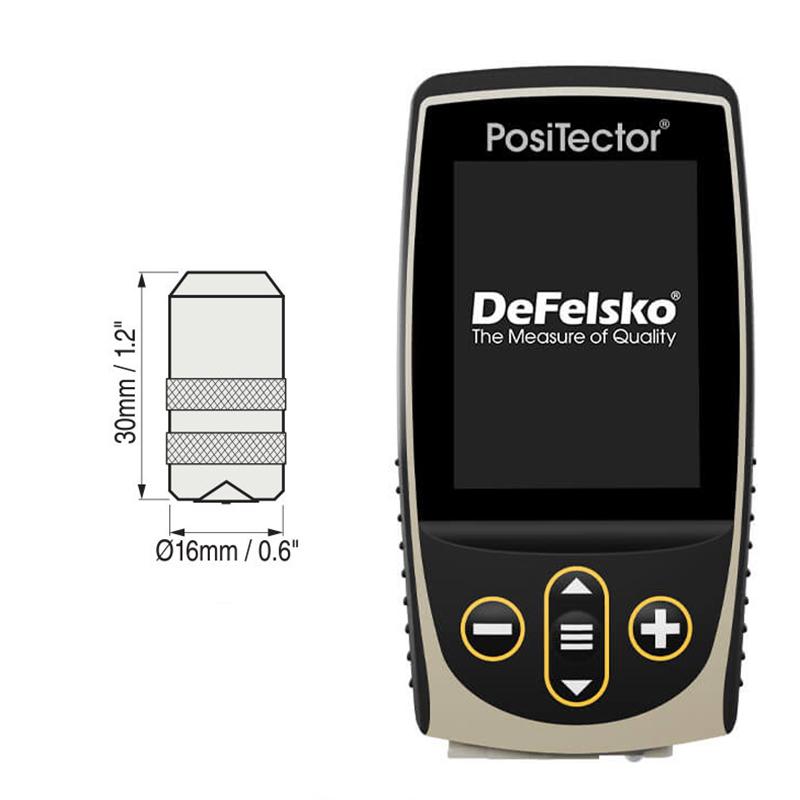

1. FTS1 Probe for external thick coatings, split design

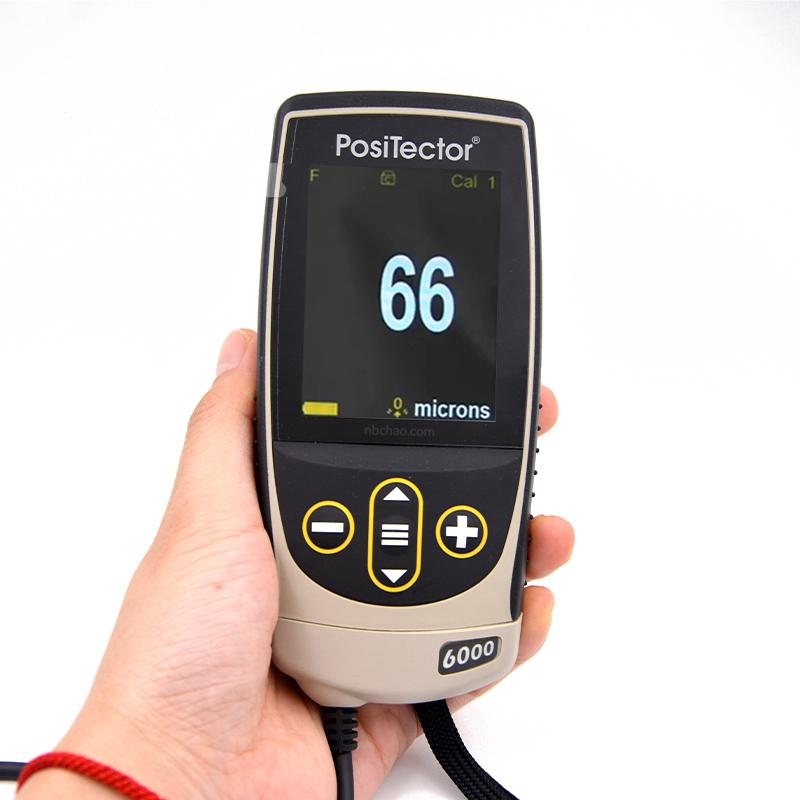

2. High contrast 2.8 inch Color Touchscreen
3. Measured value of data storage capacity up to 1000
4. Support USB and Bluetooth dual interface data transmission
5. Remote measurement with extended Probe cable
6. Protection Rating IP65, adapt to harsh environment
7. Measurement speed up to 60 + readings per minute
8. Equipped with PosiSoft software suite
9. Provide calibrated certificate
Principle
The instrument works based on the principle of magnetic Induction and achieves measurement by detecting thickness changes of nonmagnetic coatings on ferrous metal substrates.
Applications
Epoxy coatings, rubber coatings, foam fire-proof coatings
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps

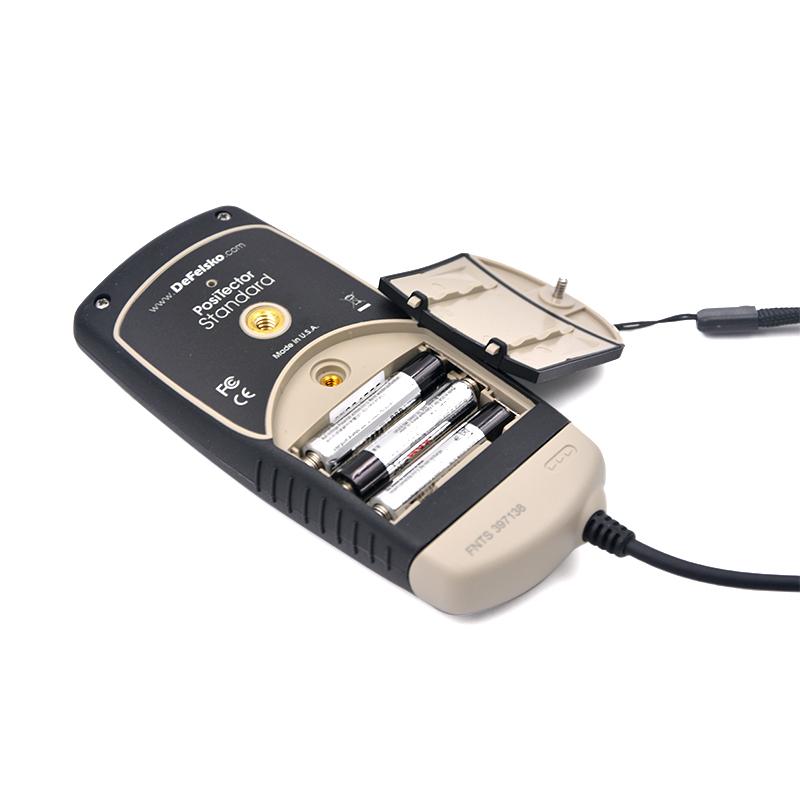

1. Install 3 AAA alkaline batteries
2. Connect the FTS1 Probe
3. On the ferrous metal substrate calibrated
4. Probe placed on the surface of the coating to be tested for measurement
5. Connect to PC to transfer data through USB or Bluetooth interface
6. Data analysis using PosiSoft software
Notice
Only for nonmagnetic coating measurements on ferrous metal substrates
• Must be calibrated before measurement to ensure accuracy
• Avoid use in extreme temperatures or Humidity environments
• Regularly check the battery level to ensure normal operation
• Pay attention to moisture and dust when storing
