Overview

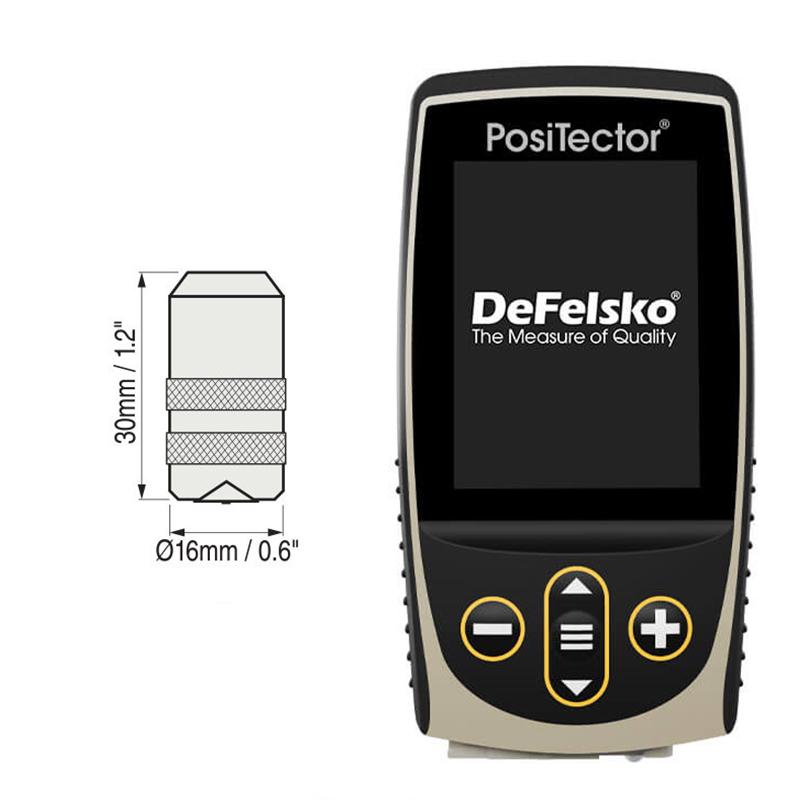

Defelsko PosiTector 6000 FTS3 Coating thickness gauge is an external probe type special measuring instrument. It adopts the principle of electromagnetic induction thickness measurement and is used for the measurement of nonmagnetic Coating thickness on magnetic metal substrates, such as rubber, fire-proof coatings, etc. Measurement range is 0~ 6mm. The instrument has a wide diameter of Probe measurement and is dedicated to thicker coating measurement. It has good abrasion resistance. The hand-squeezed part is made of stainless steel.
Features
1. Using the principle of electromagnetic induction thickness measurement, dedicated to the measurement of magnetic metal substrate nonmagnetic Coating thickness
2. Measurement range up to 0~ 6000μm, resolution 0.1μm

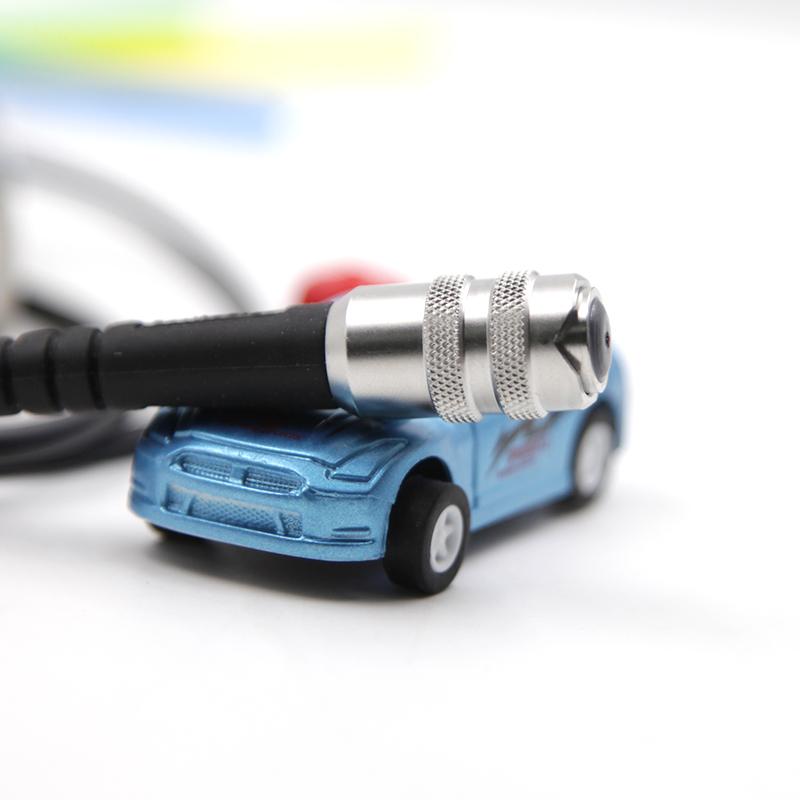

3. Probe measurement wide aperture, dedicated to thicker coating measurement
4. With statistical function, it can display the number of measurements, MAX Maximum, MIN Minimum, Average, Standard Deviation
5. Equipped with 2.8-inch color Touchscreen, supports icon function
6. Large data storage capacity, can store 250,000 Measured values and 1000 packets
7. Support USB and Bluetooth Interface, supporting PosiSoft software suite
8. Protection Rating IP65, Measurement speed 180 + readings per minute
9. The hand-squeezed part is made of stainless steel, which has good abrasion resistance
Principle
The Coating thickness gauge uses the principle of electromagnetic induction thickness measurement to generate a magnetic field through the Probe to measure the thickness of the nonmagnetic coating on the magnetic metal substrate. When the Probe is close to the measured surface, the magnetic field change is related to the Coating thickness, and the instrument calculates the Coating thickness by detecting this change.
Applications
Coating thickness measurement on magnetic metal substrates, rubber coating measurement, fire-proof coatings measurement
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 * AAA alkaline battery
2. Select the system language (Chinese or English)
3. Align the FTS3 Probe to the coating surface under test

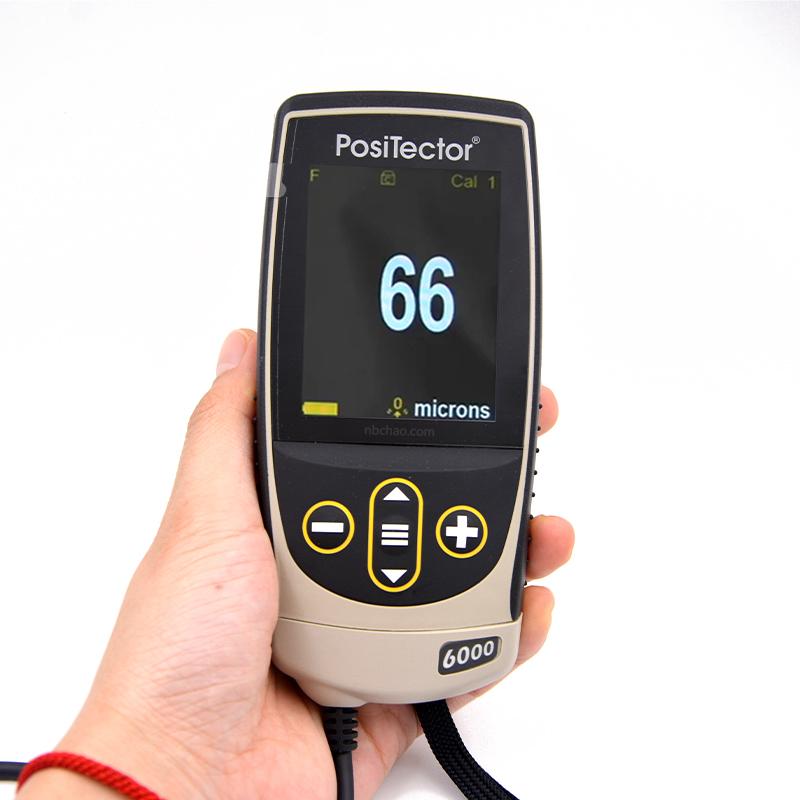

4. Perform measurement, the instrument automatically displays the thickness value
5. View statistics and graphics with Touchscreen
6. Connect to the computer using USB or Bluetooth interface and manage data through PosiSoft software
Notice
Only for nonmagnetic coating measurements on magnetic metal substrates
• Make sure the instrument is calibrated accurately before measurement
Avoid use in extreme environments
• Regularly check the battery level to ensure normal measurement
• Take care to protect the Probe from severe impact when using it
• Data storage needs to be exported or cleaned in time when it is full
