Overview

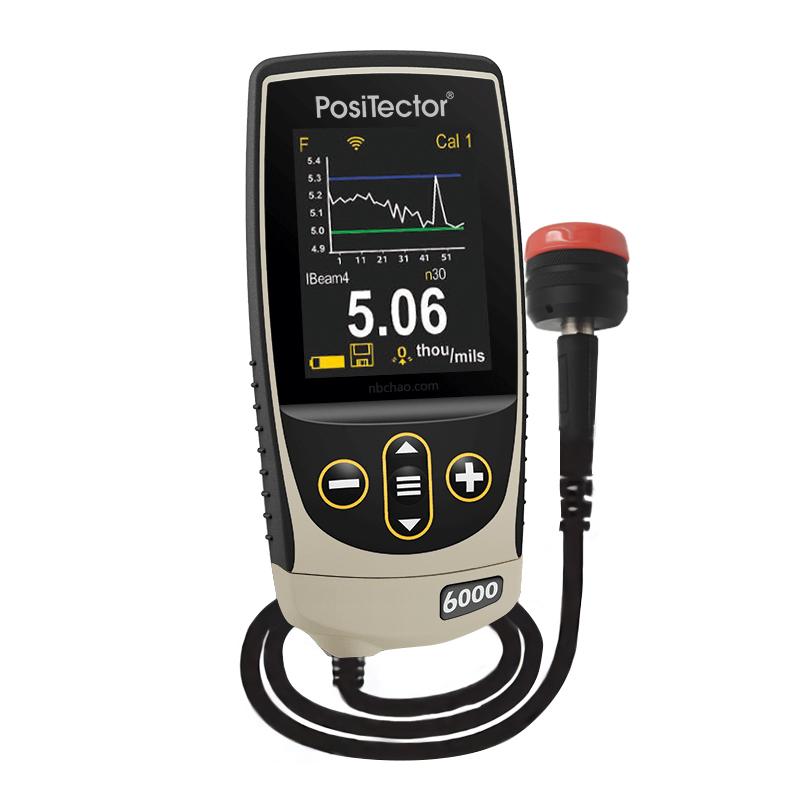

The Defelsko PosiTector 6000 FKS3 Coating thickness gauge is an advanced split probe type thickness gauge dedicated to Coating thickness detection. Measurement range is 0~ 13000 microns, suitable for nonmagnetic coating environments on ferrous metal substrates. The instrument can not only display the thickness of measurement, but also display Standard Deviation, minimum or maximum Coating thickness and the number of readings of measurement.
Features
1. Measurement range of 0~ 13000 microns, suitable for thicker coatings
2. With statistical functions, including measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
3. Equipped with 2.8-inch color Touchscreen and icon function
4. Support USB and Bluetooth Interface, supporting PosiSoft software suite
5. Large data storage capacity, can store 250,000 Measured values and 1000 packets
6. Protection Rating IP65, adapt to harsh environment
7. Measurement speed up to 180 + readings per minute
8. The system supports Chinese and English languages
9. Provide calibrated certificate
Principle
PosiTector 6000 FKS3 Coating thickness gauge uses magnetic Induction principle for measurement, and Probe detects the thickness of nonmagnetic coatings on ferrous metal substrates.
Applications
Coating thickness testing, coating nondestructive testing
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps

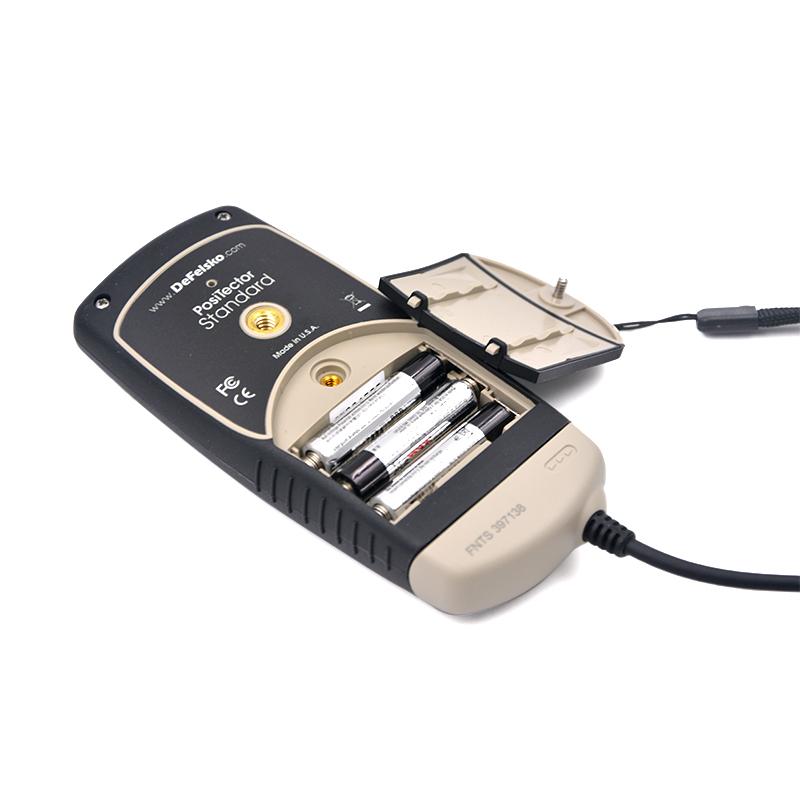

1. Install 3 * AAA alkaline battery
2. Select the system language (Chinese or English)
3. Probe measurements with thick coatings
4. View measurement results and statistics through Touchscreen
5. Transfer data to PosiSoft software using USB or Bluetooth interface
6. Save screen images (up to 100)
Notice
• Only suitable for ferrous metal substrates and nonmagnetic coating environments
• Make sure the battery is installed correctly before use
• Follow relevant standards for calibrating and operating
• Protection Rating IP65 to avoid use in environments beyond specifications
• Regularly check the calibrated condition to ensure Measurement accuracy
