Overview

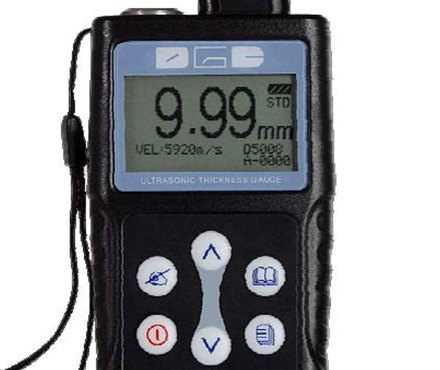

The DGC DC-2010C Ultrasonic Thickness Gauge is a storage type Ultrasonic Thickness Gauge for the measurement of the thickness of steel plates, metals and other materials themselves. The instrument is a non-penetrating coating type thickness gauge, which cannot penetrate the coating to obtain the thickness of the material when there is a coating on the surface of the tested material. Measurement range is 0.65mm~ 400.0mm, with Data storage function, capable of storing 3000 sets of measurement data.
Features
1. Measurement range up to 0.65mm~ 400.0mm
2. Mass storage function, can store 3000 sets of measurement data
3. Measurement mode: single point, two point, multi point, continuous measurement
4. High Accuracy measurement, the highest accuracy up to +/- 0.04mm
5. Equipped with USB Interface and Application Software
6. Chinese Operating interface, easy to use
7. LCD display with LED backlight
8. Portable design, weight only 220g (including battery)
9. Support automatic shutdown function
Principle
DC-2010C Ultrasonic Steel Plate Thickness Gauge adopts the ultrasonic Measurement principle, transmits ultrasonic signals through Probe, and measures the time of ultrasonic propagation in the measured material to calculate the material thickness. The instrument supports three Measurement modes: Standard measurement, MIN Minimum measurement and Fast measurement.
Applications
Steel plate thickness measurement, metal material thickness measurement
Steps
1. Single point measurement method: Probe measurement of any point on the object to be measured, the displayed value is the thickness of the material
2. Two-point measurement method: Probe is used for secondary measurement at the same point of the measured body. In the secondary measurement, the dividing surface of Probe is 90 degrees, and the smaller value is the thickness value
3. Multi-point measurement method: multiple measurements are made in a circle with a diameter of about 30mm, and the MIN Minimum is taken as the thickness value
4. Continuous measurement method: single point measurement method along the specified line continuous measurement, the interval is not less than 5mm, where MIN Minimum is the measured body thickness value
Notice
• This instrument is a non-penetrating coating thickness gauge, which cannot measure the thickness of the material when there is a coating on the surface of the tested material
• Probe contact temperature should be below 60 ° C
• Measurement mode should be selected according to the accuracy requirements
• Zero point calibrated before use
• Pay attention to the battery level display and replace the battery in time
• Storage Temperature and Working Ambient Temperature -20~ 50 ℃
