DGC DC-2030C Thickness Gauge, Ultrasonic Wall Thickness Gauge cast iron Probe 3000 Data storage

Name: DGC DC-2030C Thickness Gauge, Ultrasonic Wall Thickness Gauge cast iron Probe 3000 Data storage
Brand: DGC
SKU: NB001337
Price: 952.0 USD
Availability: InStock

$ 952.00Ex works

Measurement range 0.65-400 mm, accuracy up to +/- 0.04mm, support 3000 data storage and USB transmission, automatic zero calibration and a variety of Measurement modes.

Model

DC-2030C

Get Quote

Category : Ultrasonic Thickness Gauge

Brand : DGC

SKU : NB001337

Service :The delivery and service By NBCLab.Com

Overview

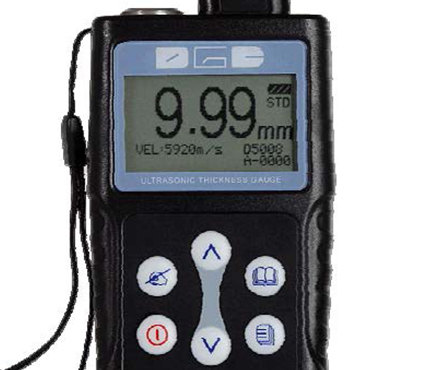

The DGC DC-2030C Ultrasonic Thickness Gauge is a cast iron Probe Ultrasonic Thickness Gauge with the same Appearance and Measurement range as the DC-2020 Thickness Gauge. The instrument uses microprocessor technology to measure the thickness of pipes, metals, steel plates and other materials themselves using the principle of ultrasonic thickness measurement. The non-penetrating coating Ultrasonic Thickness Gauge can not only directly measure the thickness of the material itself, but also measure the thickness of the material through Speed of sound.

Features

1, with automatic zero calibration Probe, and Manual calibration, can eliminate measurement deviation 2. Adopt New High Accuracy Probe Design to Automatically Identify Multiple Probes 3. Internal preset 9 kinds of commonly used materials Speed of sound value, convenient selection and manual input Miscellaneous material Speed of sound 4. Large screen with high definition and backlit LCD display function 5. Measurement range expanded to 0.65mm - 400mm (different Probes determine different Measurement ranges) 6. Storage capacity, 3000 sets of measurement data 7, manual/automatic gain adjustment 8. USB Interface can transfer data to PC

Principle

The instrument uses microprocessor technology to measure the thickness of pipes, metals, steel plates and other materials by using the principle of ultrasonic thickness measurement.

Applications

Pipe, metal, steel plate

Steps

1. Press the DC-2030C ultrasonic wall thickness gauge menu button\ confirm button to enter the menu 2. Press the up button and the down button to select "measurement". 3. Press the menu key\ confirm key to enter the item

display
128X64 LCD point matrix liquid crystal display (with LED backlight)
display bit
Four
Measurement Range
0.65mm~400.0mm
Indication accuracy
+/- 0.01mm or +/- 0.1mm
Measurement accuracy
Low accuracy: 0.65mm~ 99.9mm +/- 0.1mm; 100.0mm~ 400.0mm ≤ 0.3% Hmm; High Accuracy: 0.8mm~ 9.99mm +/- 0.04mm; 10.00mm~ 99.99mm +/- (0.1% + 0.04) mm; 100.0mm~ 400.0mm ≤ 0.3% Hmm; Note: H is the thickness value of measurement
Speed of sound
1000~9999m/s
Measurement period
Ordinary measurement 2 times/second; high-speed measurement 10 times/second
Data storage
3000 sets
data output
USB
Automatic shutdown
1 minute, 3 minutes, 5 minutes optional
power supply
Two AA batteries can work continuously for at least 48 hours
Operating Environment
Operating temperature: -20℃~ 50℃; Storage temperature: -20℃~ 50℃
Dimension
116mm（L）*64mm（W）*27mm（H）
weight
220G (including battery)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
