Overview

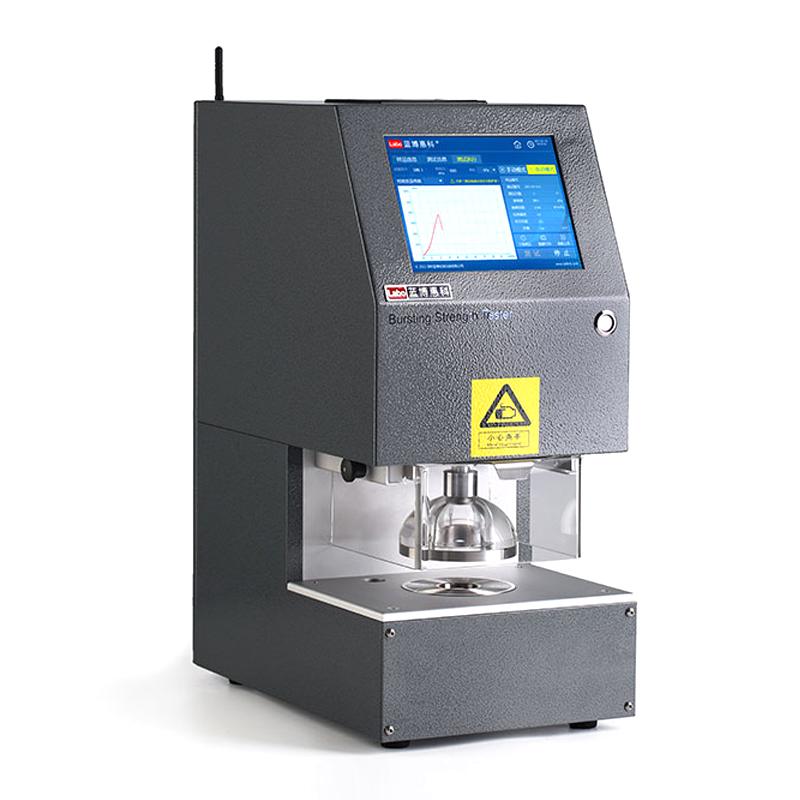

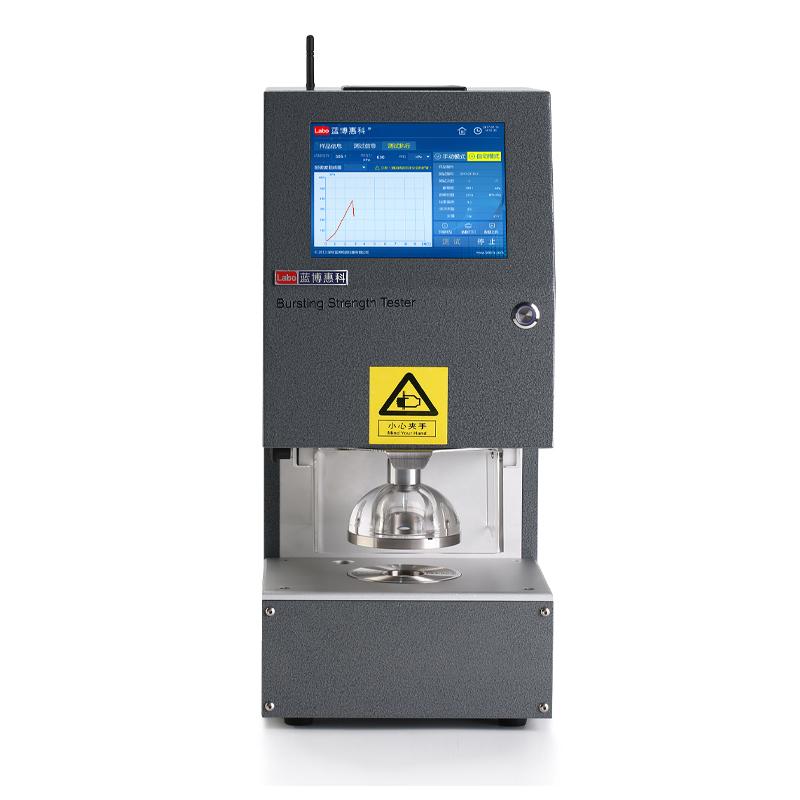

The Flake Burst Tester is a LABO brand model 16032 test equipment, mainly used to test the bursting performance of various Tobacco flakes, Corrugated Boards, cardboard, Spinning & weaving products and high Burst Strength materials. The instrument consists of a built-in measurement and control system and an LCD touch screen to display Burst Strength Linear dispersion and test results.
Features
1. Effective detection and data processing system: Rambo independent independent research and development, high intelligence system architecture, fully automated detection, no manual intervention, reduce errors, improve efficiency, data can be directly printed or uploaded to Labo-DMS through WIFI, RS232.
Labo-DMS system: support WIFI or RS232 upload, multiple instruments online detection and transmission, shared computer and software, cost saving; report module can be edited to generate Word format; analysis report can calculate unqualified rate, anticipated material Operating Environment, Fluctuation analysis.
3. High Accuracy pressure sensor: Imported High Accuracy pressure sensor (American precision).
4. High Reliability: Pass the index verification before leaving the factory to ensure reliability, stability, safety and accuracy.
5. Pneumatic system and Safety protection device: Sample clamping force precise setting (Japan SMC pneumatic system).

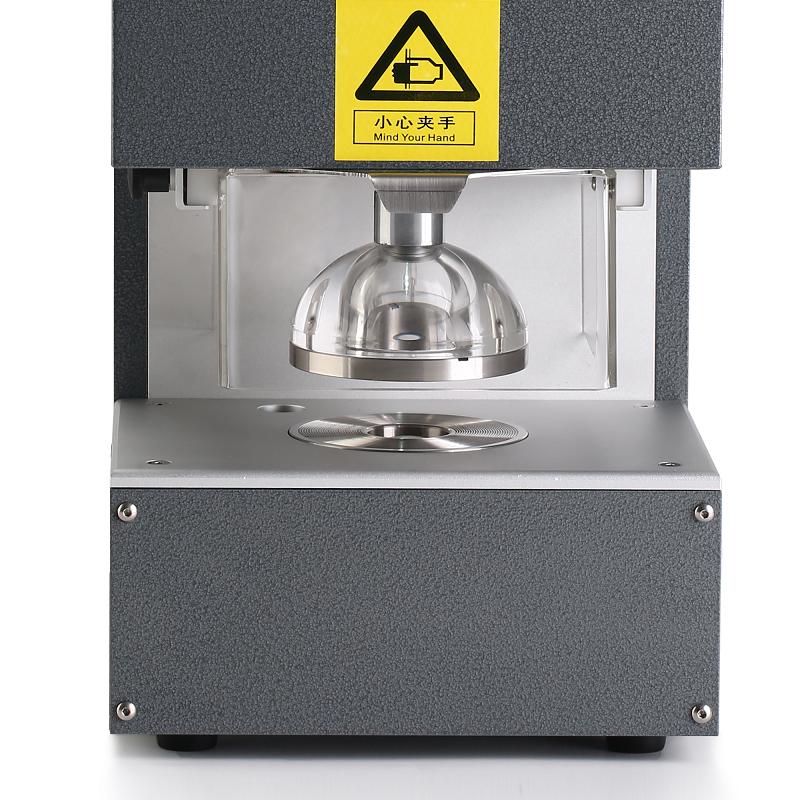

6. Organic Glass Safety Shield: Prevent damage and silicone oil splashing caused by hand putting into the chuck during the test.

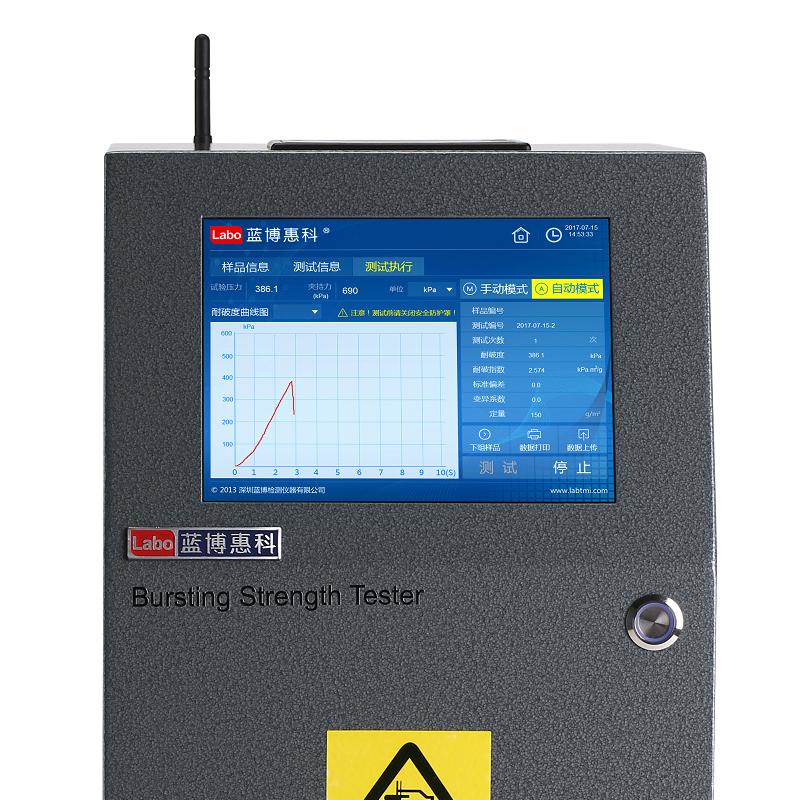

7.8-Inch large-screen LCD touch display measurement and control system, bilingual display in Chinese and English.
8. Sample automatic induction test (fully automatic), test results are calculated, printed and displayed Burst Strength Linear dispersion.
9. Sample information and test information can be input by yourself, and the test result output: WIFI or RS232.
Principle

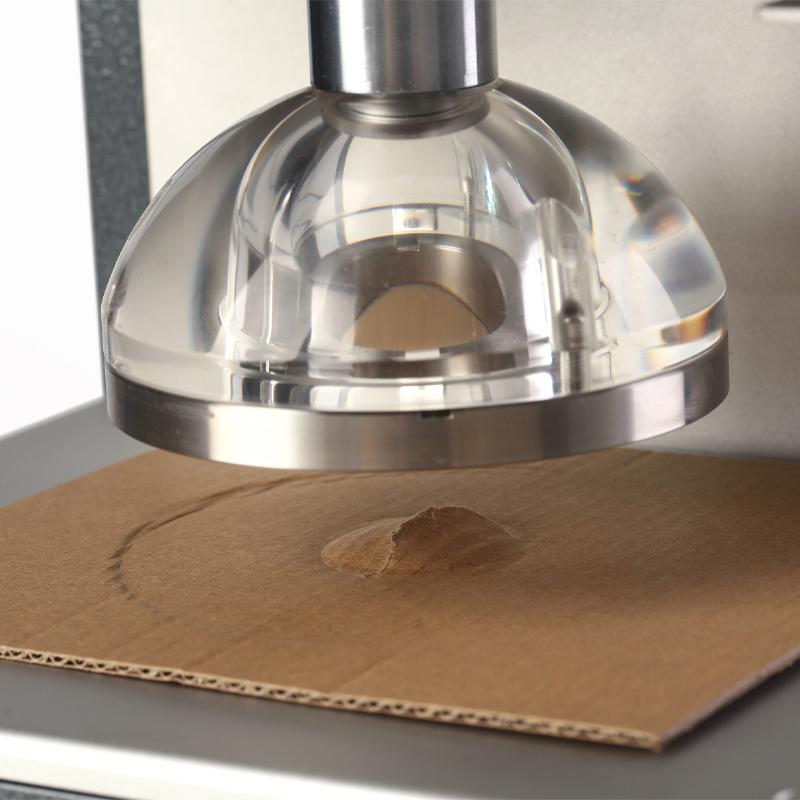

Burst Tester works according to the Mullen test principle: silicone oil is injected into the film through a piston, the film bulges deform the sample, the pressure increases, and the final sample breaks. The maximum pressure applied is the Burst Strength of the sample. The instrument is designed to meet the requirements of testing standards such as paper, Cardboard, Corrugated Board, aluminum foil, and Spinning & weaving products.
Applications
Tobacco Flakes, Corrugated Boards, Cardboard, Spinning & weaving Products, High Burst Strength Materials
Standards
GB/T1539、GB/T454、QB/T1057、ISO 2758、ASTM D774、JIS 8112、TAPPI T 403
Steps
1. Sample automatic sensing test (fully automatic).
2. Test results are calculated, printed and displayed Burst Strength Linear dispersion.
3. Sample information and test information can be entered by yourself.
4. Test result output: upload via WIFI or RS232.
Notice
• For materials with Burst Strength below 600kPa, 16031 model is recommended.
• Prevent silicone oil splashing when your hands are placed in the chuck during testing, causing personal injury and film rupture.
• Gas source pressure: (0.6~ 0.8) MPa, gas source user-provided.
• Power supply voltage: AC100-240V 50/60Hz 0.5A, should be reliably grounded.
