Overview

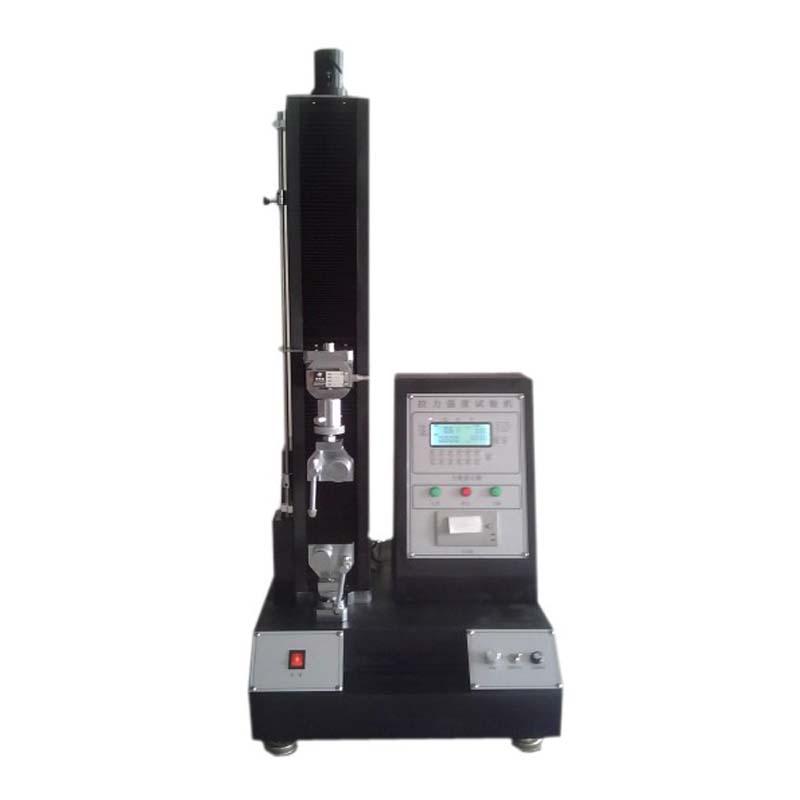

The FR-108 desktop Touchscreen Universal Testing Machine is an economical single-column electronic UTM with simple structure and easy operation, which can be used on a workbench. Using an electronic Control system, the motor is controlled by the governor to drive the ball screw to drive the Sensor to complete the tensile or compression test. The force value is displayed by the output of the Sensor, and the Test speed is displayed in real time. Especially suitable for production line quality control, suitable for Non-metallic and metal material testing within 1000N of load.
Features
1. Appearance design is beautiful, the surface adopts Aluminum profile and electrostatic spray map
2. Touchscreen LCD Linear dispersion display, can distinguish tension or pressure, the interface is clear and easy to read
3. Three Measurement Units N, Kgf, Lbf are optional and automatically interchanged
4. Touchscreen with backlight, ray of light insufficient environment available
5. Single measurement can read the bidirectional peak value of tension and pressure, support automatic and manual clearing
6. Travel limit and overload stop function
7. The desktop single column has an exquisite structure, and the sitting operation is easy and natural
Principle
The electronic Control system is used to control the rotation of the speed regulating motor through the governor, and then the ball screw pair is decelerated by the variable speed mechanical mechanism to drive the load sensor to rise and fall to complete the sample tensile or compression test. The force value is output by the Sensor feedback display, and the Test speed is displayed in real time.
Applications
Spinning & weaving, Rubber, Plastic, Synthetic Leather, Adhesive Tape, Adhesive Products, Plastic film, Composites, Electronics, Metal, Wire and cable, Hardware, Electronics, Encasement printing, Equipment, Auto Parts, Spinning & weaving Leather, Apparel and Footwear, Rubber and Plastic Products, Colleges and Universities, Scientific Research Laboratories, Commodity Inspection and Arbitration, Technical Supervision Department
Standards
Electronic multifunctional testing machine
Steps
1. Place the sample on the workbench
2. Set test parameters through Touchscreen
3. Start the test, and the equipment automatically completes the stretching or compression
4. Read the peak data of tension and compression
5. Automatic or manual clearing for the next test
Notice
• Power supply voltage of 15A to 220V
• Test load shall not exceed 1000N
• Travel limit check and overload protection function before use
• Avoid use in strong electromagnetic interference environments
• Periodically calibrated force measurement system
• Pay attention to the position of the emergency shutdown device during operation
