Overview

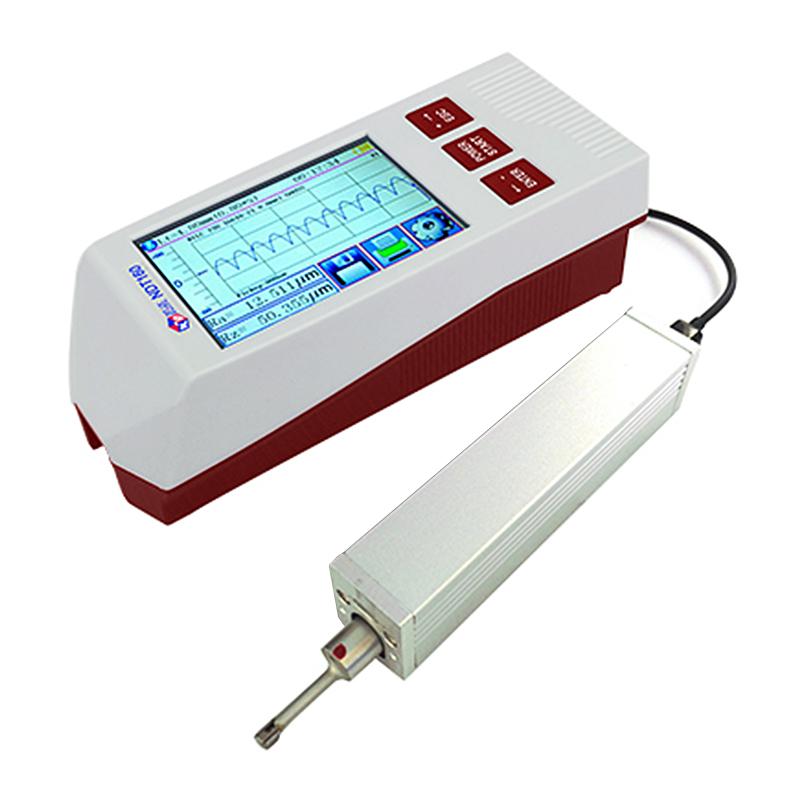

The KAIRDA NDT160 Roughness Gauge is a Handheld surface roughness measuring instrument for production site environments and mobile measurement needs. The instrument can measure the surface roughness of a variety of machined parts, calculate parameters according to selected conditions, and display all Measurement parameters and contour graphics on the display. It is easy to operate, fully functional, fast measurement, stable accuracy, easy to carry, and can measure international standard main parameters and strictly implement international standards.
Features
1. Host, driver, Sensor combined structure, mechatronics design, easy to use, small size, light weight
2. Support Bluetooth printing and mobile app wireless operation
3. Multi-Parameter measurement, including Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz (JIS), Rs, Rsk, Rsm, Rku, Rc, Ry, Rmax, Rmr, etc
4. Luxury instruments add RPc, Rk, Rpk, Rvk, Mr1, Mr2 and other parameters
Measurement range of 5.160μm, luxury up to 320μm
6.480 × 320 TFT color liquid crystal display, digital/graphic display, adjustable luminance, wide viewing angle
7. Adopt DSP chip for control and data processing, fast speed and low power consumption
8. The display is informative and intuitive, capable of displaying all parameters and graphics
9. Compatible with ISO, DIN, ANSI, JIS and other national standards
10. Built-in 3200mAh lithium battery and charging control circuit, high capacity, no Memory effecy
11. There is a remaining power indicator icon, prompting the user to charge in time.
12. The charging process indication can be displayed, and the operator can keep abreast of the charging degree
13. Continuous Operating Time greater than 50 hours
14. Data storage, can store 100 original data sources and waveforms
15. Real-time clock setting and display for easy data recording and storage
16. With power-saving functions such as automatic sleep and automatic shutdown
17. Reliable anti-motor dead circuit and software design
18. Display measurement information, menu prompt information, error information and switch machine and other prompt information
19. Ergonomic shell design, strong, compact, portable, Reliability
20. Multi-language options
21. Can connect computers and printers
22. All parameters can be printed or any parameters set by the user can be printed
23. Optical inspection Glass matrix for calibrated sample block, high accuracy, not easy to scratch, long service life
24. Optional Curved Sensor, Small Hole Sensor, Deep Slot Sensor, Very Small Hole Sensor, Measurement Platform, Sensor Sheath, Connector Rod, Height Ruler Bracket, Magnetic Dial Bracket and other Accessories
Principle
The Roughness Gauge uses a Displacement Differential Inductance Sensor for measurement. The Sensor stylus is a natural diamond, with a 90 taper angle and a 5 μm tip radius, and touches the workpiece surface with a force measurement of 4 mN. The instrument uses a DSP chip for control and data processing. According to the selected sampling length and filter type, the Sensor is driven to move at different speeds, the surface profile data is collected, and asperity parameters and graphics are calculated and displayed.
Steps
1. Choose the right Sensors and Accessories for your measurement needs
2. Turn it on and check the battery level, and charge it if necessary.
3. Measurement parameters and conditions, including sampling length, evaluation length, filter type, etc
4. Place the Sensor on the surface of the workpiece to be tested correctly
5. Start measurement, the instrument automatically collects data
6. Measurement parameters and profile graphics displayed on the monitor
7. Optionally store data or print results via Bluetooth connection
8. Shut down in time after the measurement is completed or let the instrument automatically enter the sleep mode
Notice
• Make sure the instrument has sufficient power before measurement and avoid using it in a low power state
• Select the appropriate Sensor type to adapt to different surface shapes, such as plane, outer circle, cone, inner hole, groove, curved surface, etc
• Special surface requires applicable Sensor for measurement
• Pay attention to working environmental conditions: Temperature -20 ℃~ 40 ℃, Humidity < 90% RH
• Pay attention to environmental conditions during storage and transportation: Temperature -40 ℃~ 60 ℃, Humidity < 90% RH
• Regularly calibrate the instrument with calibrated samples to ensure measurement accuracy
• Avoid violent collisions or scratches to the Sensor stylus
• Pay attention to the remaining power indication in time to avoid affecting the measurement due to insufficient power
• Clean Sensor and Instrument Surface After Use
• When not in use for a long time, it is recommended to store the instrument in a drying and cool place
