Overview

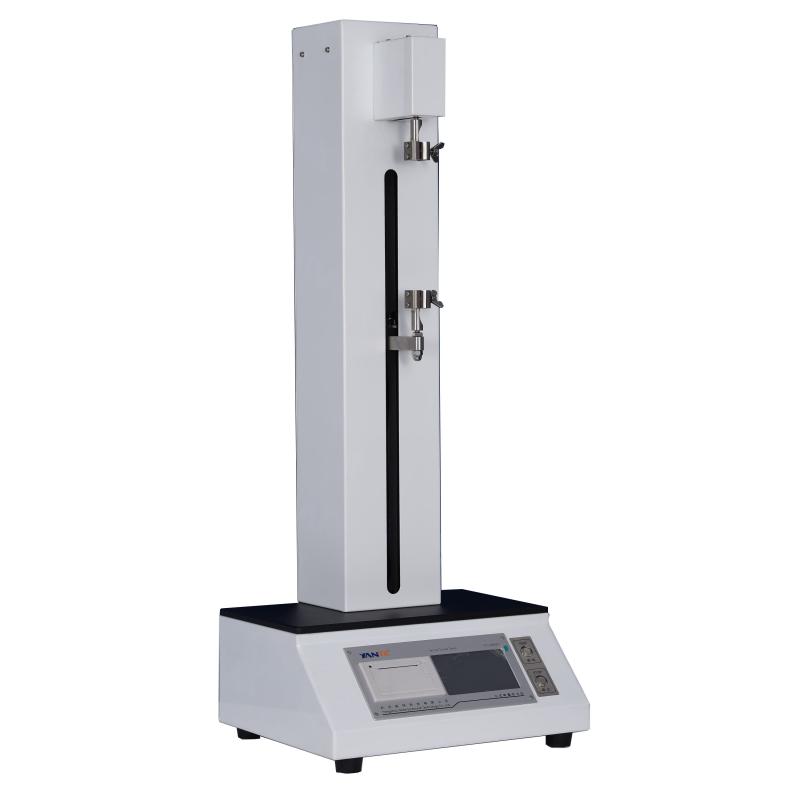

The YANTE YT-L1000 vertical computerized tensile tester is a professional equipment for measuring the Tensile Strength of objects. It is mainly used in the papermaking, Plastic film, chemical fiber, aluminum foil production and other industries, as well as in the production and commodity inspection departments. The instrument can measure Tension, Tensile Strength, Elongation, Break Length, Tensile Energy Absorption, Tensile Index, Tensile Energy Absorption Index and Adhesive Tape Peel Strength.
Features
1. The transmission mechanism adopts ball screw and 3 guide shafts to ensure smooth and accurate transmission.
2. Adopt stepper motor (servo motor), with low noise and accurate control.
3. Equipped with 5-inch TFT true color LCD touch screen and Chinese menu, real-time display of stretching time, load tension and tensile curve.
4. The main board adopts new technology and 32-bit ARM processor to improve processing speed, accurate and fast data calculation, and ensure real-time measurement data.
5. With automatic reset, data memory, overload protection and fault self-diagnosis functions.
6. Variable sample size and stretching speed, support common standard sizes and custom settings.
7. Measurement range, optional configuration (0-30N/0-100N/0-300N/0-1000N), suitable for a variety of material testing.
8. Built-in thermal printing movement, no inks and color ribbon requirements, no noise, fast printing speed.
9. Equipped with a standard RS232 interface, it can be connected to microcomputer software for communication (separately purchased).
Principle
The instrument is driven by a stepper motor (servo motor) through a ball screw and a guide shaft drive system to achieve smooth and accurate stretching motion. During the test, real-time load tension and stretching time data are collected, and parameters such as anti-tension and elongation are quickly calculated through a 32-bit ARM processor, and tensile curves are displayed on the Touchscreen to ensure measurement accuracy and real-time.
Applications
Paper, Cardboard, Aluminum Foil, Aluminum Plastic Tape, Plastic film, Miscellaneous Non-metallic Materials
Steps
1. Turn on the power supply and start the instrument.
2. Set the sample size and stretching speed through Touchscreen.
3. Install the sample between the chucks and adjust the spacing between the chucks.
4. Start tensile test, observe data and Linear dispersion in real time.
5. After the test is completed, the instrument automatically calculates and displays the results.
6. Use the built-in thermal printer to print the data, or export it through the RS232 interface.
Notice
• Ambient Temperature should be maintained at 10~ 35 ℃, relative humidity below 85%.
• Power supply voltage is AC (100~ 240) V, (50/60) Hz to ensure stable power supply.
• The sample width standard is 15mm, and the replacement of 25mm or 50mm chuck needs to be booked in advance.
• Avoid overload use, the instrument has overload protection function.
• Regularly check transmission components and electrical systems to ensure normal operation.
• When using the RS232 interface for communication, additional supporting software is required.
