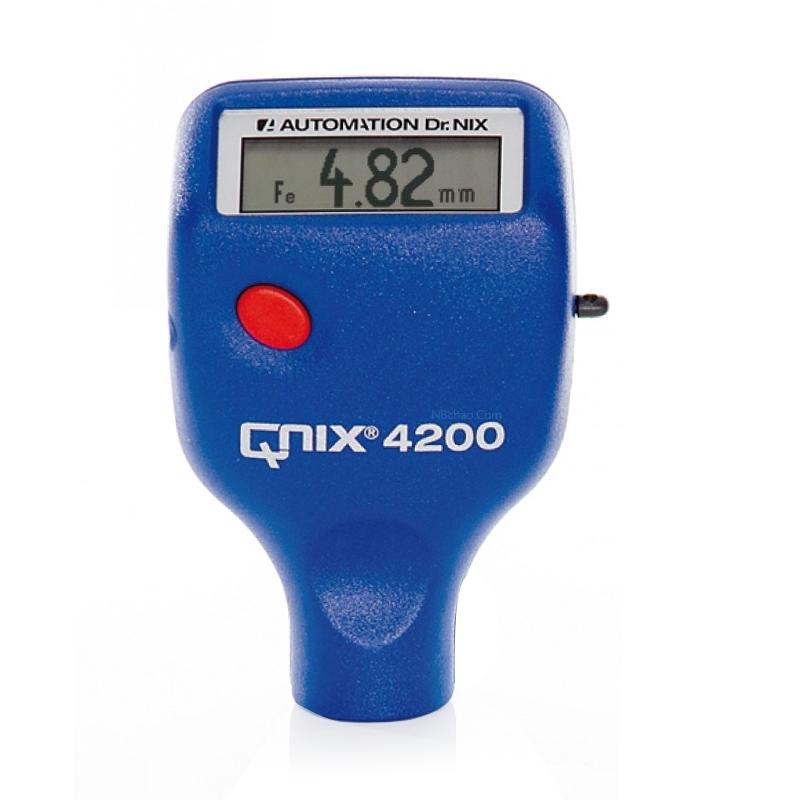

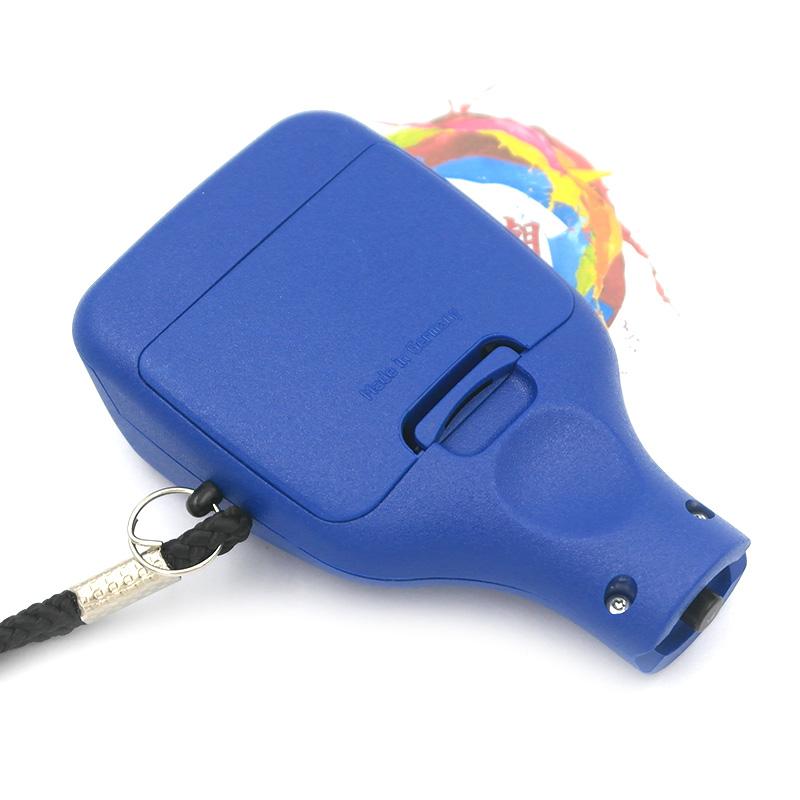

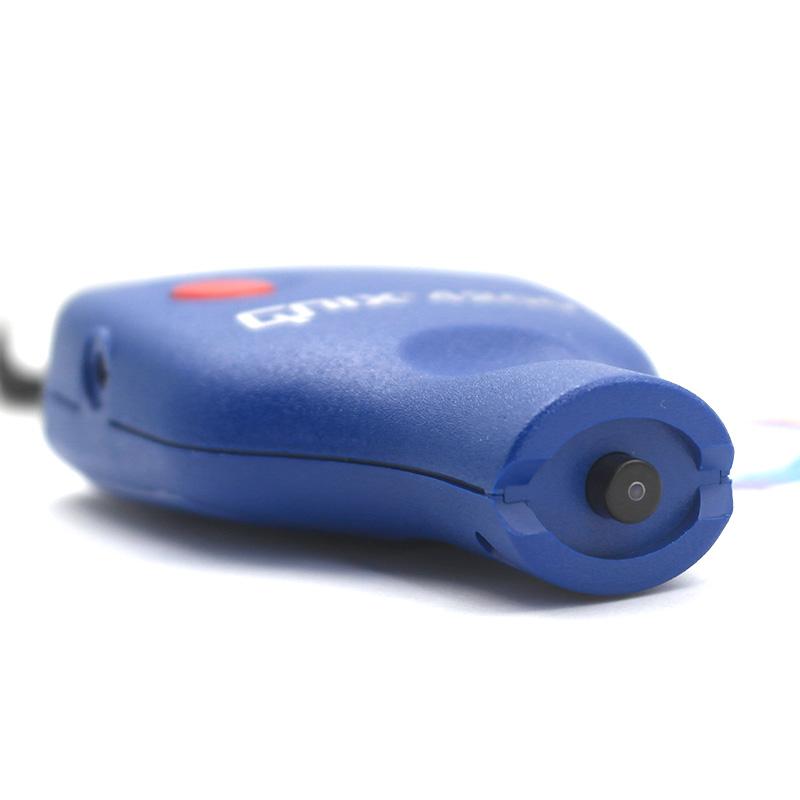

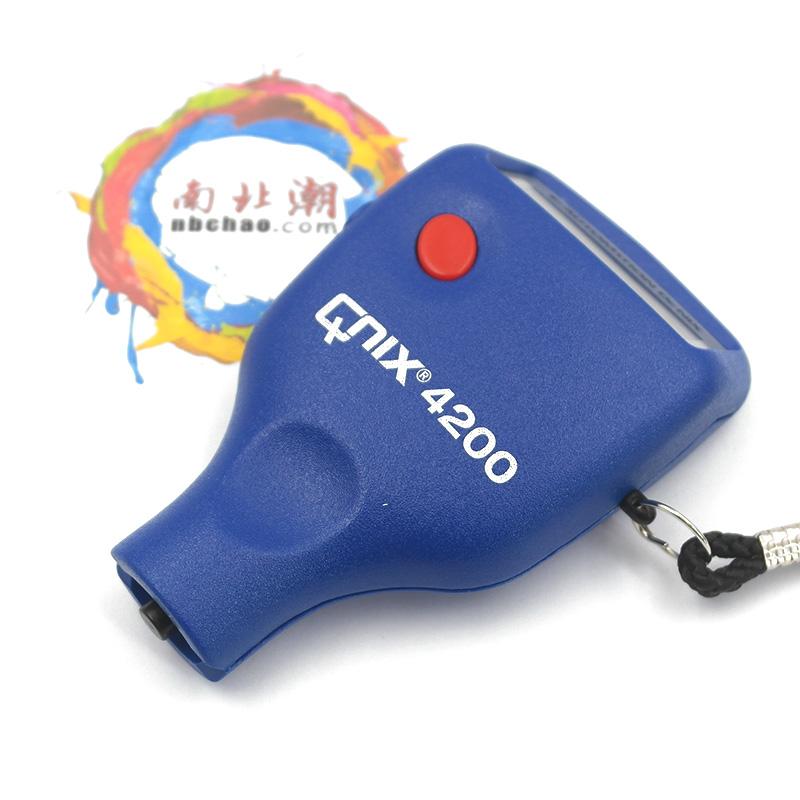

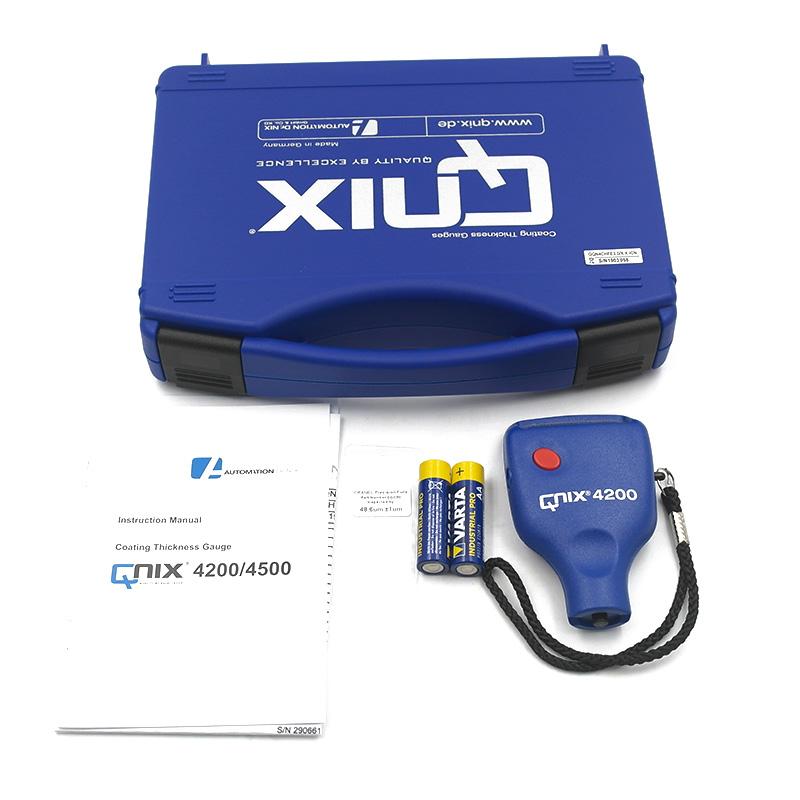

QNix4200/5 Coating thickness Gauge magnetic thickness Gauge 0~ 5000μm

Name: QNix4200/5 Coating thickness Gauge magnetic thickness Gauge 0~ 5000μm
Brand: Qnix
SKU: NB016665
Price: 1153.0 USD
Availability: InStock

$ 1153.00Ex works

Hall Sensor to ensure measurement Stability, Ruby wear Probe extended service life, with temperature compensation function, Measurement range 0~ 5000μm, minimum measurement diaMeter 25mm.

Model

QNix4200/5

Get Quote

Category : Coating Thickness Gauge

Brand : Qnix

SKU : NB016665

Service :The delivery and service By NBCLab.Com

Overview

Germany QNix4200 magnetic Coating thickness gauge is a standard version of one-piece Coating thickness gauge, using iron-based Probe, Measurement range is 0~ 5000μm, minimum measurement diameter is 25mm, with temperature compensation function. Widely used in paint and automotive painting field.

Features

1. Simple and fast measurement 2. No need to calibrate 3. Automatic switch machine 4. Large range FE: 0-5000um NFE: 0-3000um 5. Dual-use Probe, cost-effective 6. Hall Sensor makes measurement more stable 7. Sound synchronization during measurement 8. Ruby wear-resistant head, long life 9. Backlit LED display for clearer readings 10, automatic identification measurement matrix 11, split Probe to meet different measurement environments

Principle

Coating thickness measurement using magnetic Induction principle.

Applications

Paints, car paintings

Standards

DIN EN ISO 2808、ISO 2178、ASTM B 499、ASTM D 7091

Steps

1. Turn on the power supply of the device 2. Probe placed on the surface of the coating to be tested 3. Read the measurement results on the display screen 4, equipment supports automatic identification of substrate and temperature compensation function

Notice

• Operating temperature range 0~ 50 ℃ • The minimum measurement surface diameter is 25mm • The thinnest substrate thickness is 0.2mm (F) • Powered by 2 AA batteries • Storage temperature is -10~ 60 ℃ • Minimum radius of curvature: convex 5mm, concave 25mm

Measurement mode
magnetic Induction
Measurement Range
Fe：0~5000μm
Display accuracy
0~999μm：0.1μm；≥1000μm：1μm
margin of error
±(3%+2μm)
unit display
µm/mil
minimum measurement surface
Φ 25mm
minimum radius of curvature
Convex: 5mm; Concave: 25mm
minimum substrate thickness
Fe：0.2mm
display screen
liquid crystal display
Operating temperature
0~50℃
Storage temperature
-10~60℃
Meet the standard
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091
power supply
2 * 1.5V AA battery
Dimension
100*60*27mm
weight
105g
