Overview

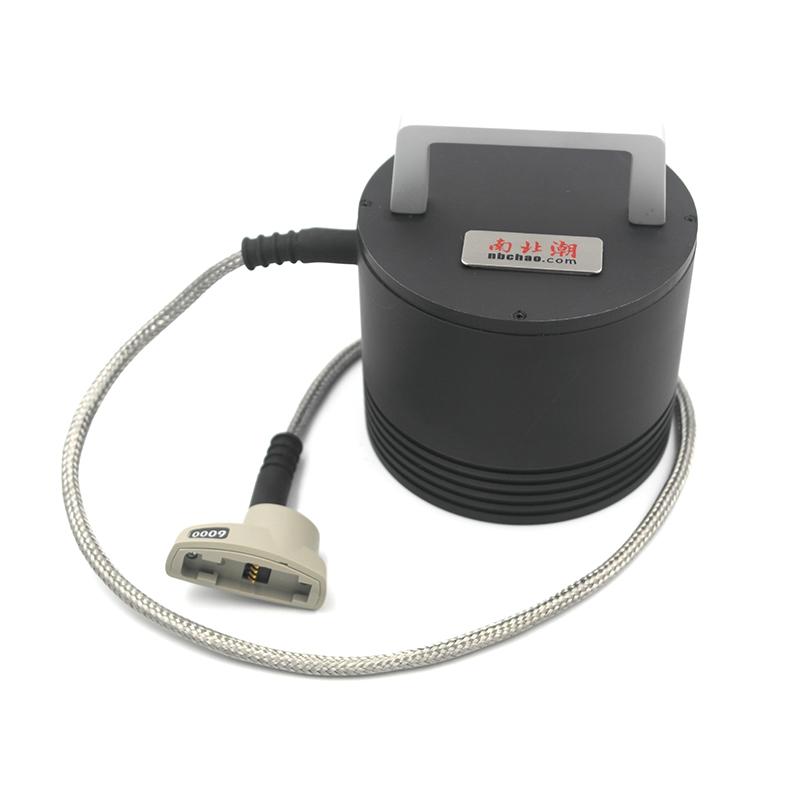

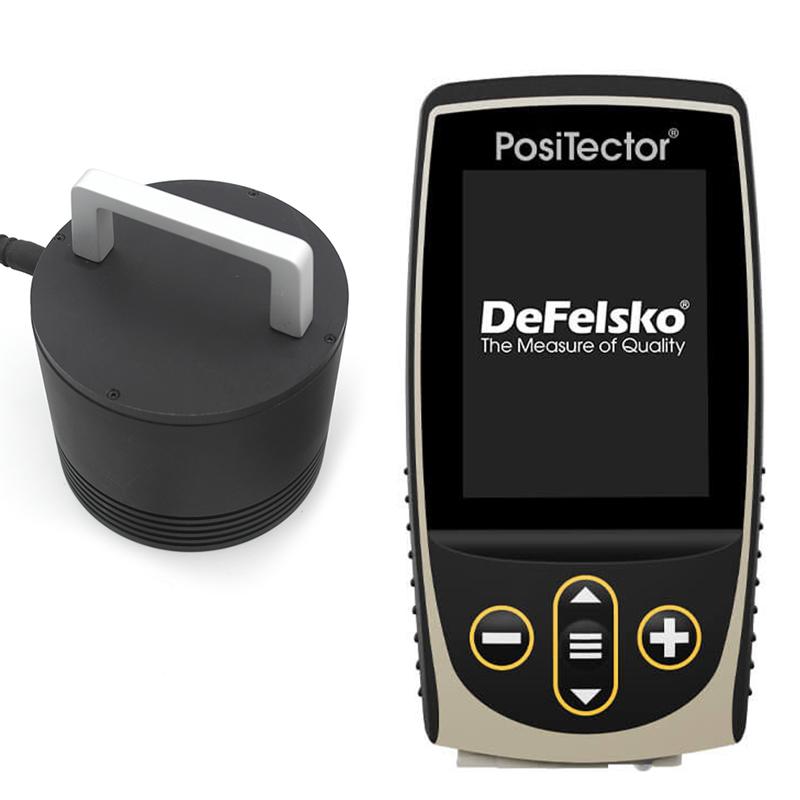

The Defelsko PosiTector 6000 FNGS3 Coating thickness gauge is the Defelsko Advanced Coating thickness gauge for the measurement of nonmagnetic coatings of ferrous metals. Measurement range is 0 to 1500 microns. The instrument is designed with a 90 ° Probe for narrow measurement occasions. It is equipped with a USB interface to connect to a PC to manage data. It has a color LCD screen to display measurement data and graphics in real time.
Features
1. 90 ° Probe design for narrow measurement
2. Equipped with USB and Bluetooth interfaces, supports PC data management
3.2.8-Inch Color Touchscreen Display, Real-time Graphical Display
4. High-speed measurement, up to 180 + readings per minute
5. IP65 Protection Rating, strong durability
6. Data storage for 250,000 Measured values and 1,000 packets
7. Support Chinese and English system languages
8. Equipped with PosiSoft software suite
9. Provide calibrated certificate
Principle
Using magnetic Induction and eddy Current principle for measurement, the thickness of nonmagnetic coating on ferrous metal substrate was detected by Probe.
Applications
Coating thickness measurement of ferrous metals nonmagnetic
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 * AAA alkaline battery
2. Power on and select the system language
3. Probe measurement
4. View measurement data and statistics through Touchscreen
5. Use USB or Bluetooth to connect to a PC to manage data
6. Data analysis using PosiSoft software
Notice
• Measurement range: 0~ 1500 microns
• Minimum measurement surface: 83 * 83mm
• Thinnest substrate: 2.5mm
• Range of error: +/- 3%
Powered by 3 * AAA alkaline batteries
• weight: 137g (without battery)
• Dimension: 127 * 66 * 25.4mm
