Overview

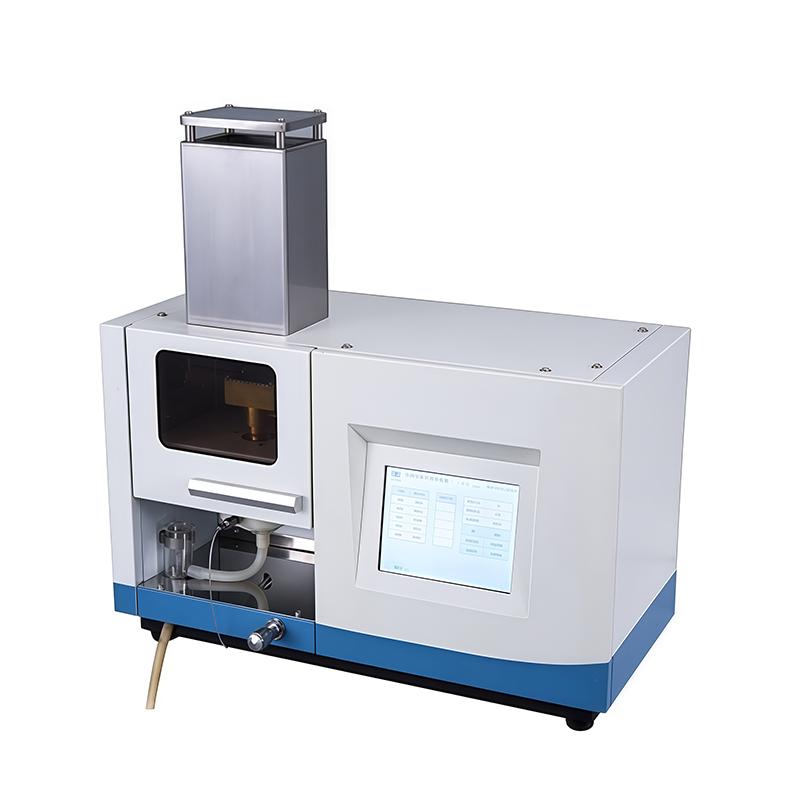

The YUE FENG FSP6643 flame spectrophotometer is a precision instrument with concave Holographic grating design. It has the characteristics of light spectrum purity, accuracy and high Sensitivity. The instrument supports direct reading measurement with any combination of five elements. It is equipped with a 5.6-inch color Touchscreen. The interface is graphical and the operation process is streamlined to ensure efficient and convenient measurement.
Features
1. Concave Holographic grating design is adopted for the first time in the industry. Light spectrum is pure and accurate, with narrow passband, high Sensitivity and better linearity.
2. Five elements can be selected in any combination while direct reading measurement, only software selection, flexible and convenient.
3. Similar to the atomic absorption design, it is magnificent, small and delicate.
4. Imported Photocells, photovoltaic cells receive element signals, stable and reliable performance.
5. With an internal standard channel, it is corrected with a signal that does not contain measurement elements, and the measurement is synchronized with the elements. The internal standard correction is designed to be optional and can be freely selected according to the situation.
6. Adopt 5.6-inch color 640 × 480 display screen and supporting Touchscreen, interface graphics, measurement flow, abundant information, easy access, and harmonious human-machine integration.
7. Adopt automatic ignition, including flame monitoring, with flameout protection and alarm to ensure safety.
8. Switching power supply, light weight, small size, low heat generation, small impact of external power supply, energy saving and environmental protection.
Principle
The flame spectrophotometer is based on 1200 concave Holographic grating for spectroscopy, using imported Photocells, photovoltaic cells to receive element signals to achieve pure and accurate measurement of Light spectrum. Linear dispersion calibration is carried out by Linear dispersion fitting method, and internal standard channel correction is supported to ensure the Stability and accuracy of measurement results.
Steps
1. Turn on the instrument power and start the system.
2. Select measurement elements and parameters through a 5.6-inch color Touchscreen.
3. Automatically ignite and monitor the flame status.
4. Sample measurement, the instrument automatically reads and displays the data.
5. Use the USB port to connect the printer to output data.
Notice
• Ensure that the Ambient Temperature is used within the range of 10~ 35 ° C.
• Check the flame monitoring function before use to ensure that the flameout protection and alarm are normal.
• Regularly calibrate instruments to maintain measurement accuracy.
• Avoid external power fluctuations affecting instrument performance.
