Overview

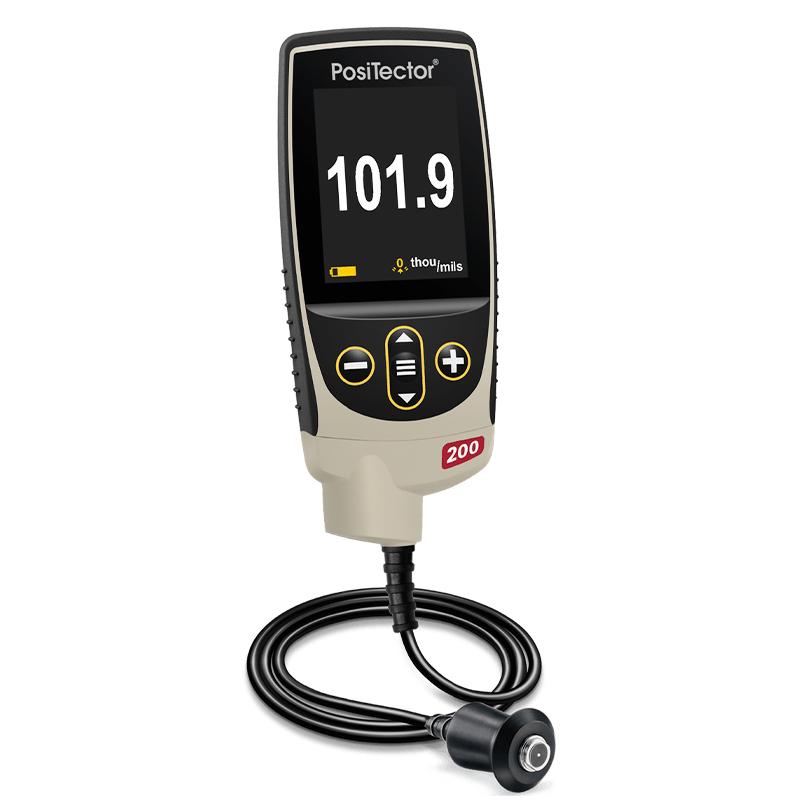

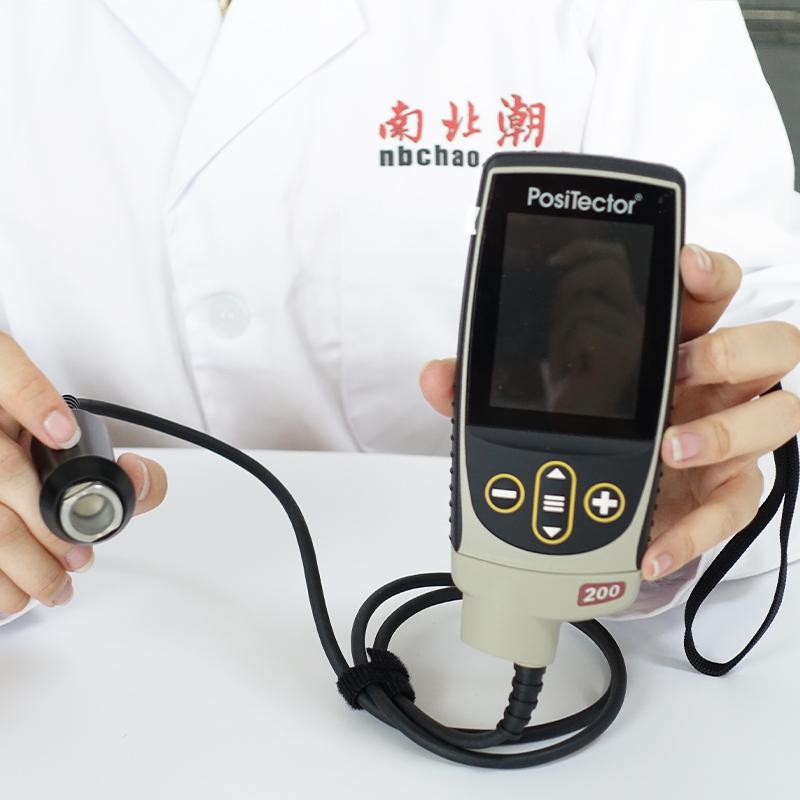

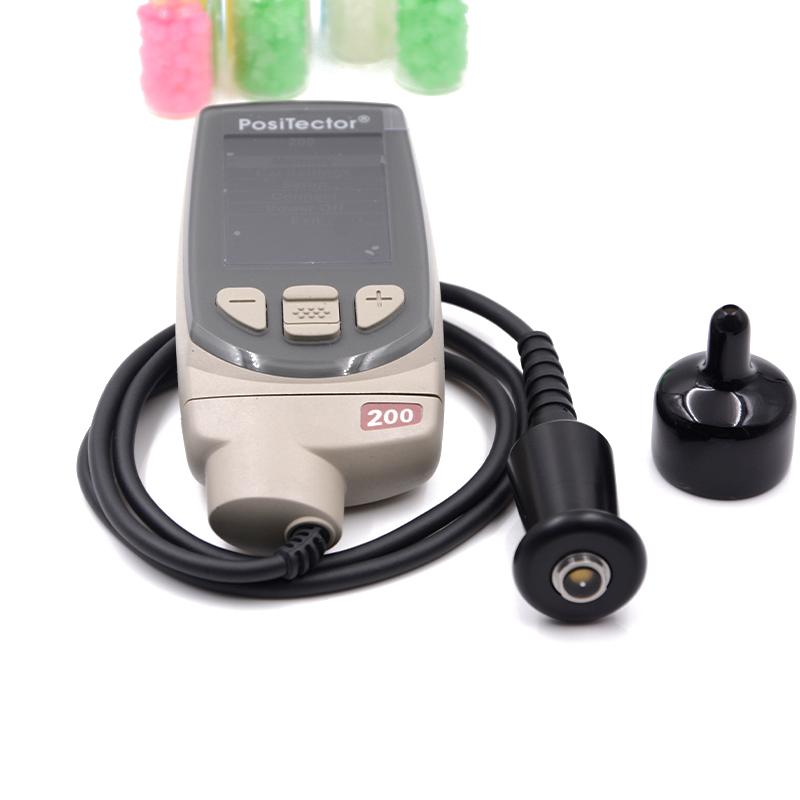

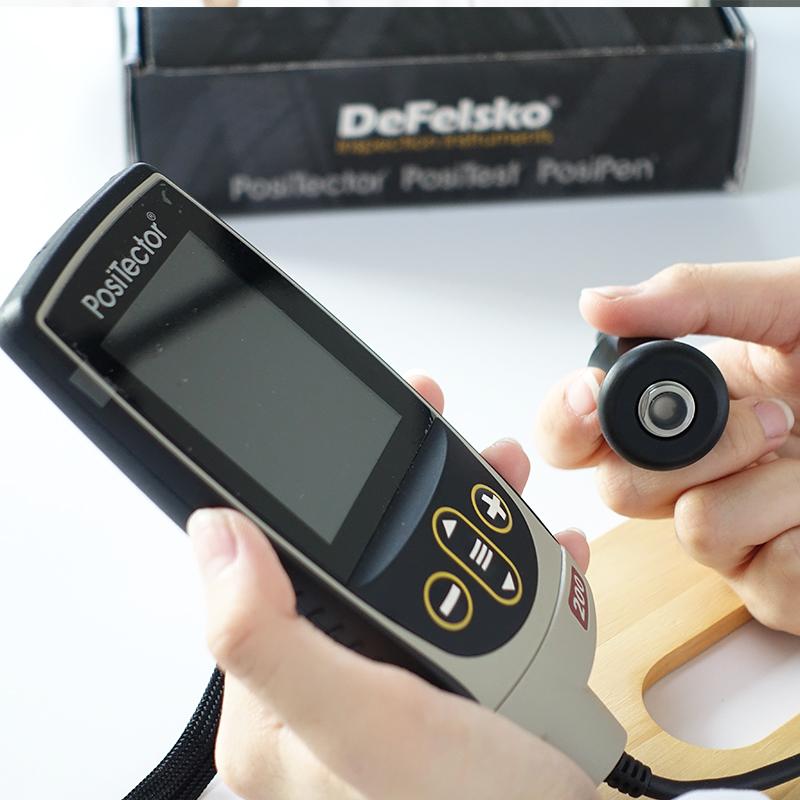

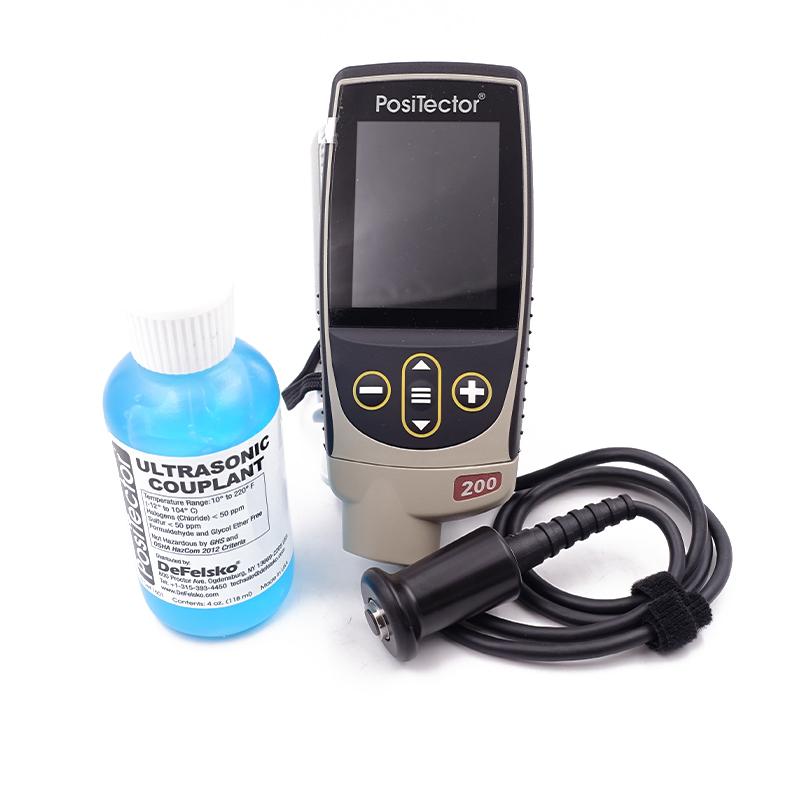

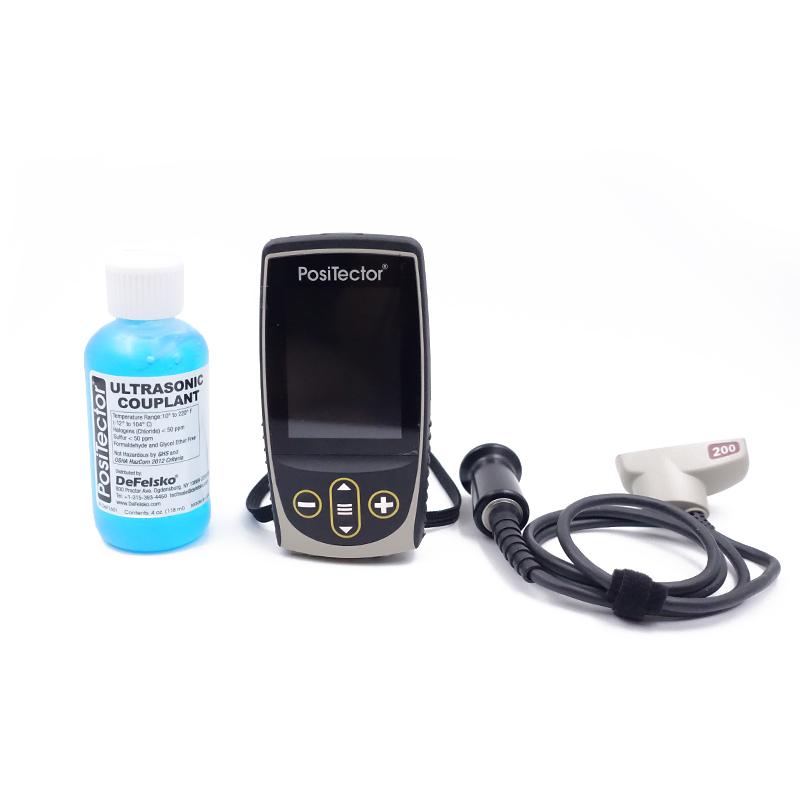

The PosiTector 200 B1 is the Defelsko brand ultrasonic Coating thickness gauge for Coating thickness measurement on Non-metallic substrates. The product uses proven ultrasonic technology to nondestructive measurement of Coating thickness on wood, concrete, plastic and other substrates. The advanced model can measure up to 3 layers of coating systems.
Features
1. Technology mature: using proven ultrasound technology, compliant with ASTM D6132 and ISO 2808 standards
2. Easy measurement: most applications do not need to be calibrated, with enhanced one-handed menu navigation
3. Good protection: weatherproof design, resistant to solvents, acids, oils, water and dust
4. High compatibility: using PosiTector interchangeable platform, Probe can be connected to a single meter body
5. Effective connection: Supports USB, WiFi and Bluetooth connections, compatible with PosiSoft PC, Mac and smartphone software
6. Accurate and Reliable: Provides calibrated certificates traceable to NIST or PTB, Response Sensors ensure fast and accurate readings
7. Powerful: with statistical mode, screen capture, flip display, multi-language support and other practical functions
Principle
The PosiTector 200 B1 uses the Ultrasonic Measurement principle to nondestructive detect Coating thickness by transmitting and receiving ultrasonic signals. The Response Sensor provides fast and accurate readings, and proven ultrasound technology meets relevant international standards.
Applications
Wood, plastic and other polymer coatings, concrete, fiberglass and other coatings
Standards
ASTM D6132、ISO 2808
Steps
1. Prepare for measurement - no need to calibrate for most applications
2. Operate with enhanced one-handed menu navigation
3. Factory settings can be restored immediately through the RESET function
4. Use the sealing USB port to connect to the PC for data transfer
5. View the average value of measurement data, Standard Deviation and other statistical information through statistical mode
Notice
• The instrument body and Probe enjoy a two-year warranty
• Powered by alkaline or rechargeable batteries
• High contrast ratio backlit display for bright or dark environments
• Flip display function for front-up viewing
Software updates over the network ensure that instruments are kept up to date
Each stored measurement is marked with a date and time
