YONGLIDA QCJ-120A Film Impact Tester, Film impact resistance Tester 120cm Impact height

Name: YONGLIDA QCJ-120A Film Impact Tester, Film impact resistance Tester 120cm Impact height
Brand: YongLiDa
SKU: NB018167
Price: 359.0 USD
Availability: InStock

$ 359.00Ex works

Impact height 120 cm, drop weight mass 1000g, punch diaMeter Φ 16mm, Impact depth 2.5mm, no secondary rebound phenomenon, to ensure the accuracy of the test.

Model

Get Quote

Category : Film Impact Tester

Brand : YongLiDa

SKU : NB018167

Service :The delivery and service By NBCLab.Com

Overview

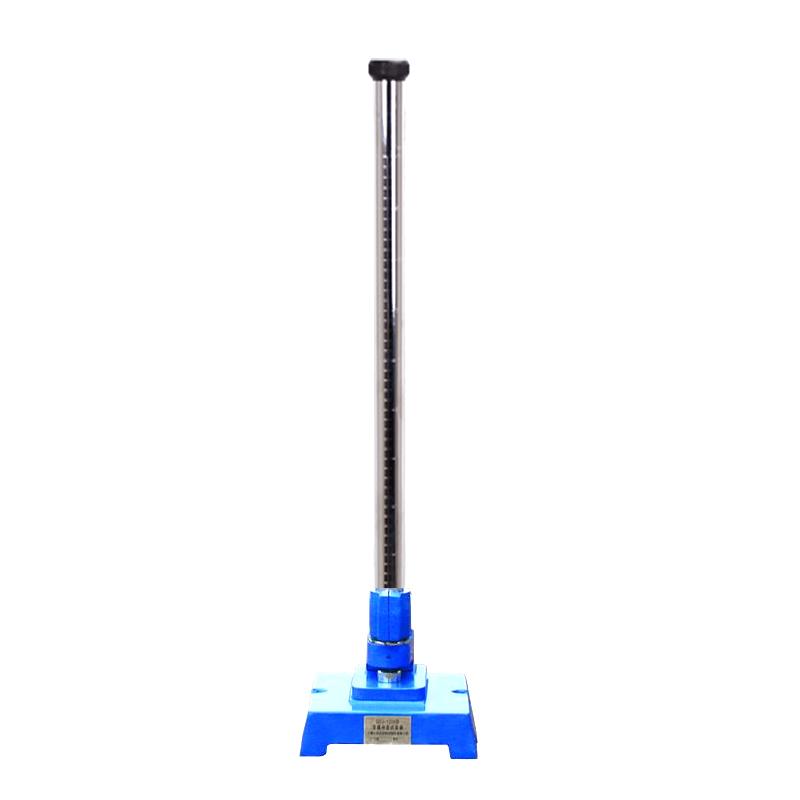

The QCJ-120A film Impact device is a YONGLIDA brand product, which is used to test the impact resistance of the paint film. It is expressed as the maximum height of 120 cm when a fixed mass of heavy hammer falls on the test plate without causing damage to the paint film. There is no secondary rebound phenomenon after the impact head of this instrument impacts the test plate.

Features

1. Impact height 120cm, Division 1cm, high accuracy 2. Drop weight mass 1000g, Impact head diameter φ 16mm, Impact depth 2.5mm 3. The aperture of the die base is φ 15mm, and the radius of curvature is R2.5~ 3mm. 4. No secondary rebound after Impact

Principle

Impact test plates with a fixed mass of weight falling freely from different heights were used to determine the maximum impact height of the paint film without damage to evaluate the impact performance of the paint film.

Applications

Film impact resistance test

Standards

GB/T 5237.4-2000、GB/T 1732-93、ASTM D2794-92

Notice

• Check whether the instrument scale is accurate before use • Ensure that the weight mass meets the standard requirements • Immediate observation of paint film condition after impact test • Keep the instrument clean to avoid affecting Test accuracy

Impact height
120 cm
Division
1 cm
Drop weight mass
1000 g
Punch diameter
Φ16mm
Impact depth
2.5mm
die base aperture
Φ15mm
radius of curvature
R2.5~3mm
Meet the standard
GB/T 5237.4-2000

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
