PUSHEN BY-500g Pencil Hardness Tester coating Hardness Tester

Name: PUSHEN BY-500g Pencil Hardness Tester coating Hardness Tester
Brand: Pushen
SKU: NB018194
Price: 160.0 USD
Availability: InStock

$ 160.00Ex works

The 45 ° fixed angle design is adopted to ensure that the cylindrical pencil lead maintains a constant angle and pressure, the load is 500g, the error is +/- 10g, and the coating Hardness level is determined by the minimum Hardness value pencil trace.

Model

Get Quote

Category : Pencil Hardness Tester

Brand : Pushen

SKU : NB018194

Service :The delivery and service By NBCLab.Com

Overview

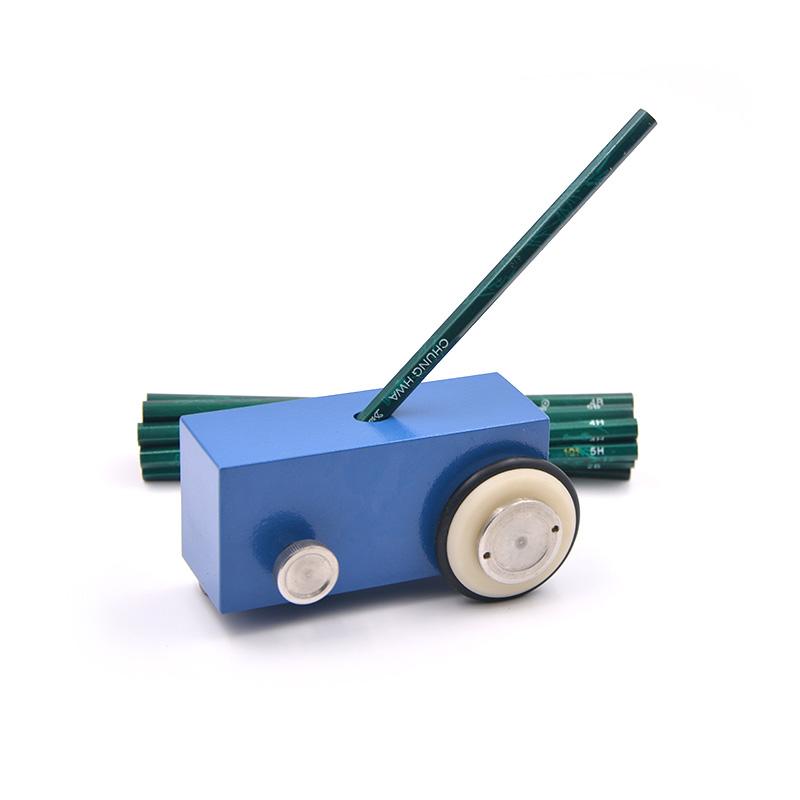

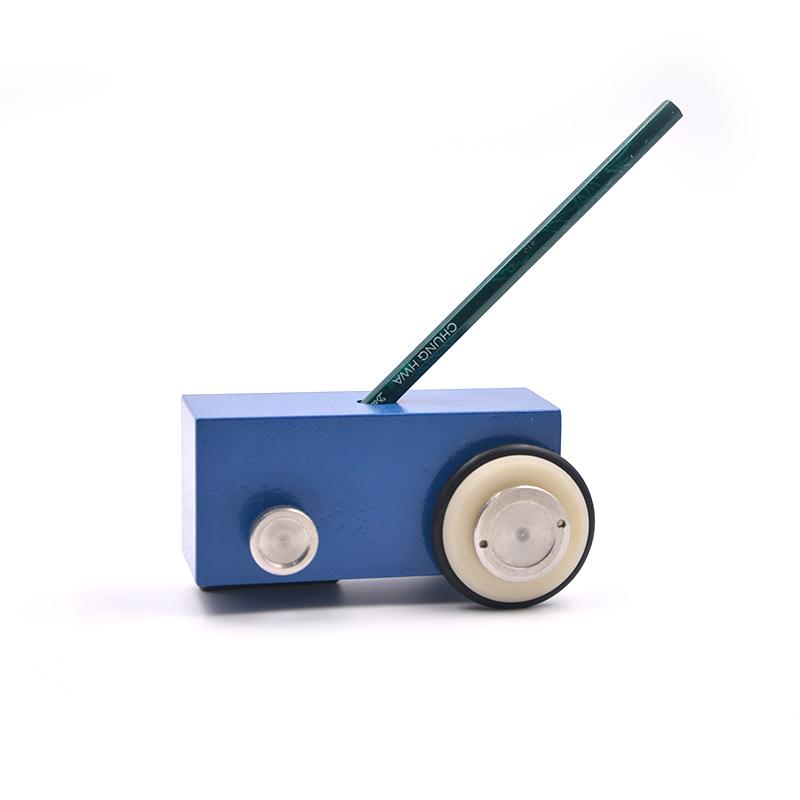

The Pencil hardness tester BY-500g is a PUSHEN brand test instrument used to evaluate coating Hardness with graphite pencils with different Hardness values. The precision design ensures that the cylindrical pencil lead is maintained at a constant 45 ° angle and fixed pressure. The coating Hardness grade is determined by the minimum Hardness value pencil leaving a mark on the coating.

Features

1. Precision design ensures that the pencil lead maintains a fixed angle of 45 ° and constant pressure 2. The load error is controlled within the range of +/- 10g 3. Adopt a trolley structure for easy operation and implementation 4. Hardness grade of coatings can be accurately determined according to different Hardness pencils

Principle

Insert the sharpened pencil into the inclined hole of the trolley to fix it, keep the trolley horizontal and place it on the sample. Push forward at a speed of 0.5mm/s, so that the nib scratches the surface of the film, and determine the Hardness level of the coating by the traces left by pencils of different Hardness on the coating. The specific determination method is carried out according to the relevant standards.

Standards

GB/T 6739、ISO 15184

Steps

1. Insert the sharpened pencil into the oblique hole of the trolley 2. Tighten the fixing screws to keep the trolley basically level 3. Place the trolley on the preparatory specimen 4. Hold the center of the wheel with two fingers 5. Push forward at a speed of 0.5mm/s 6. Scratch the surface of the film with the nib 7. Hardness of the film is determined according to the pencil of different Hardness

nib load
500g
load error
±10g
Pencil Specifications
6B-HB-6H (13 pcs)
matrix Size
130*75*60mm
Machine weight
2.6Kg
Meet the standard
GB/T 6739、ISO 15184

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
