Overview

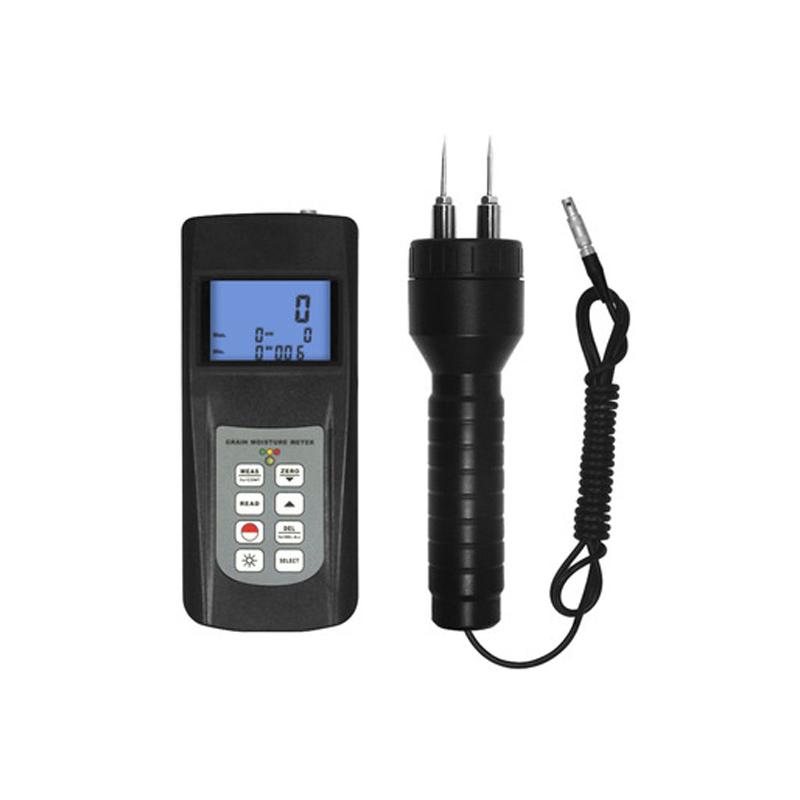

The LANDTEK MC-7828P moisture meter (practical) is a Portable device for the measurement of moisture in nonconductive substances. Moisture content is detected by measurement conductivity and is suitable for moisture analysis of a variety of materials.
Features
1. Detect moisture by measurement of conductivity between two styluses.
2. Display mode with LCD digital display and LED light emitting tube status indication.
3. Support statistical functions, can calculate average, MAX Maximum and MIN Minimum.
It can store 240 sets of data.
5. Provide USB data cable output and RS-232 data cable output to communicate with PC.
6. Optional Bluetooth Bluetooth data output.
Principle
The moisture meter indirectly measures the Moisture content of the measured object by measuring the conductivity between two styluses. Moisture content is calculated by the change in conductivity.
Applications
Wood, bamboo products, woodware, cotton, paper, asphalt, construction, soil
Steps
1. Install 4 AA batteries.
2. Select the appropriate measurement code.
3. Insert the probe into the object under test.
4. Read the LCD display or LED indicator status.
5. Use the data output function to communicate with the PC.
Notice
* Applies to nonconductive substances only.
* Ambient Temperature should be between 0 and 50 ℃.
* Environmental humidity should be less than 85% RH.
Make sure the battery is installed correctly before use.
* Avoid damage when the probe is inserted.
Determine the moisture status according to the LED indicator: the green light is safe, the yellow light is critical, and the red light is humid.
