Overview

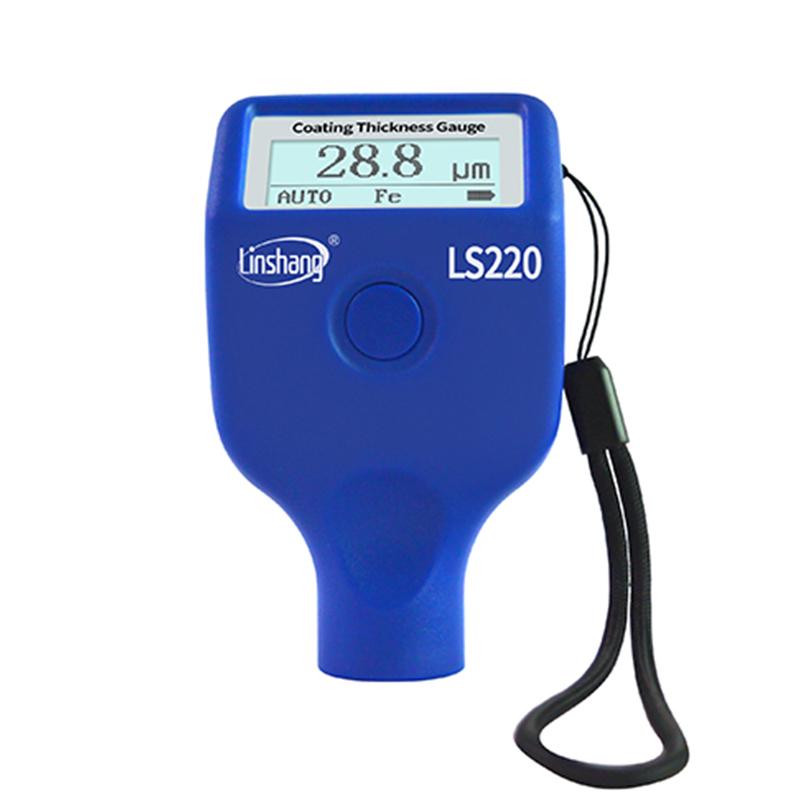

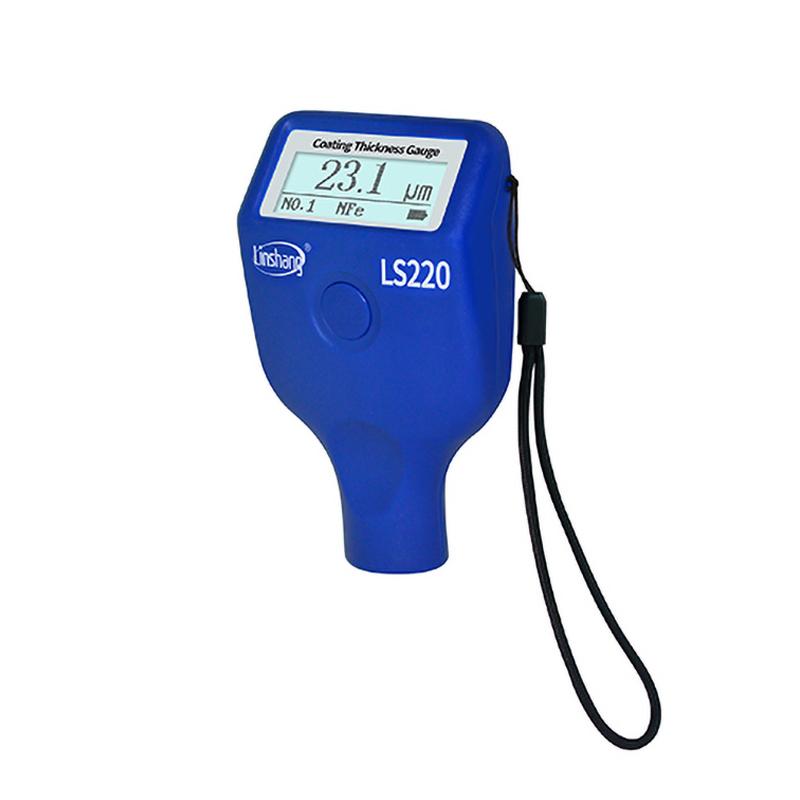

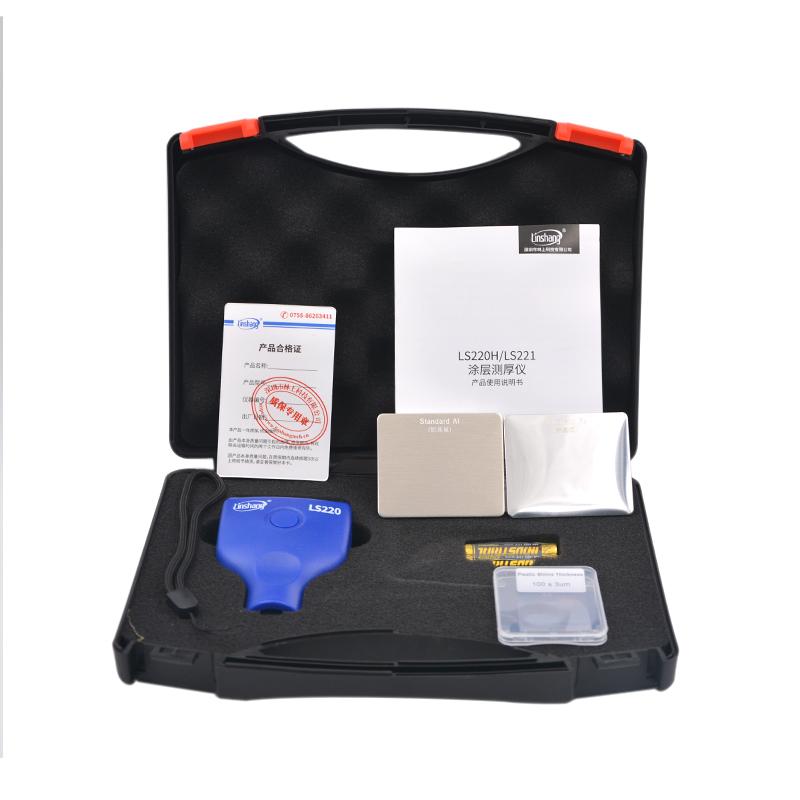

LS220H Coating thickness gauge is a professional instrument for detecting the surface coating thickness of materials, suitable for commodity inspection, manufacturers and other scenarios. The instrument adopts magnetic measurement method and eddy current measurement method to detect the nonmagnetic coating thickness on ferromagnetic metal substrates and the nonconductive coating thickness on nonmagnetic metal substrates, and has the function of automatically identifying the substrate.
Features
1. Fast measurement, immediate test, simple and convenient operation, only 0.5s to complete a test

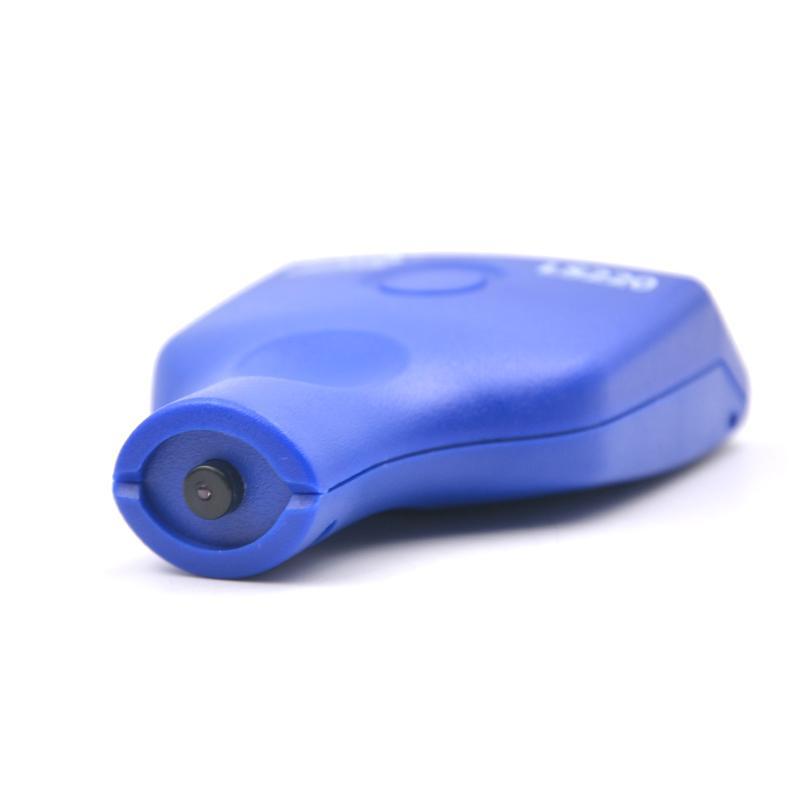

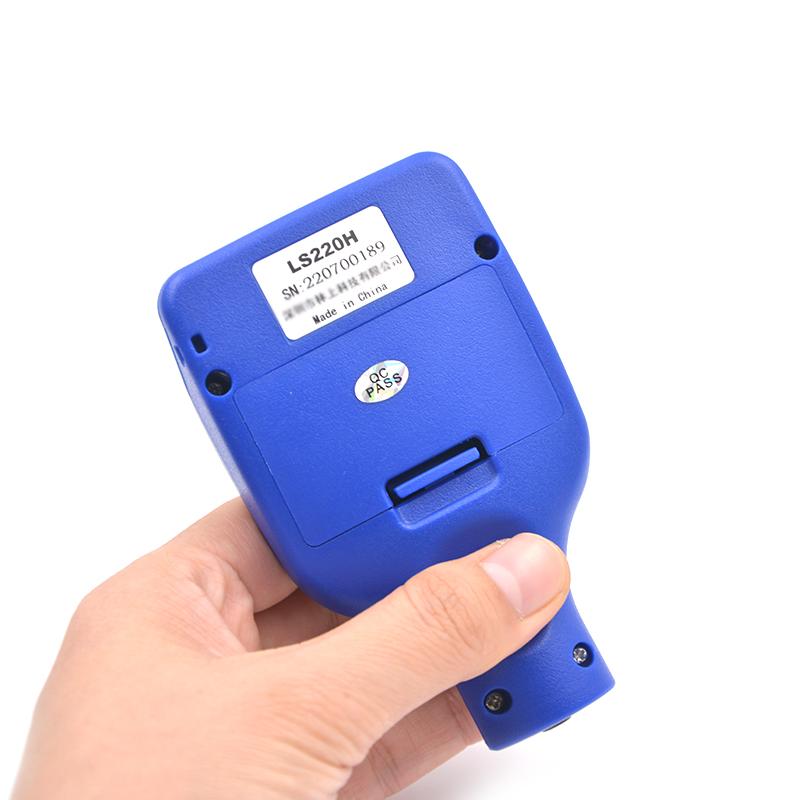

2. Iron-aluminum dual-use Probe, using Hall effect and eddy Current effect, can measure the nonmagnetic film thickness on magnetic metal substrates such as steel, and the nonconductive film thickness on nonmagnetic metal substrates such as copper and aluminum, and can automatically identify the measurement substrate and prompt to switch the measurement mode
3. Meet a number of national standards to ensure passing the National Measurement Institute test
4. With temperature compensation function, the test data is stable, and the accuracy is not affected by temperature
5. No need for cumbersome calibrating, just simple zero adjustment, the test is more accurate after zero adjustment
Principle
The instrument uses magnetic measurement method and eddy current measurement method to detect the coating thickness through Hall effect and eddy Current effect. The magnetic method is used for the measurement of nonmagnetic coating thickness on ferromagnetic metal substrates, and the eddy current method is used for the measurement of nonconductive coating thickness on nonmagnetic metal substrates.
Applications
Commodity inspection, manufacturer
Standards
GB/T 4956-2003 Film thickness measurement of nonmagnetic coatings on magnetic substrates - magnetic method, GB/T 4957-2003 Film thickness measurement of nonconductive coatings on nonmagnetic substrates - eddy current method, DIN EN ISO 2808 Determination of film thickness of coatings and varnishes, JJG-818-2005 Magnetic, eddy Current type Thickness measurement instrument verification
Steps
1. Perform a simple zeroing operation
2. Place the Probe on the surface to be tested
3. Instant pressure and measurement, the instrument automatically recognizes the substrate and displays the measurement results
Notice
• Zero operation is required before measurement to ensure accuracy
• Note that the minimum requirement for the measurement surface is φ 25mm
Film thickness requirements: ferromagnetic substrate 0.2mm, nonmagnetic substrate 0.05mm
• operation temperature range is 0 ℃ -50 ℃, storage temperature range is -20 ℃ -60 ℃
• Powered by 2 1.5V AAA alkaline batteries
