Overview

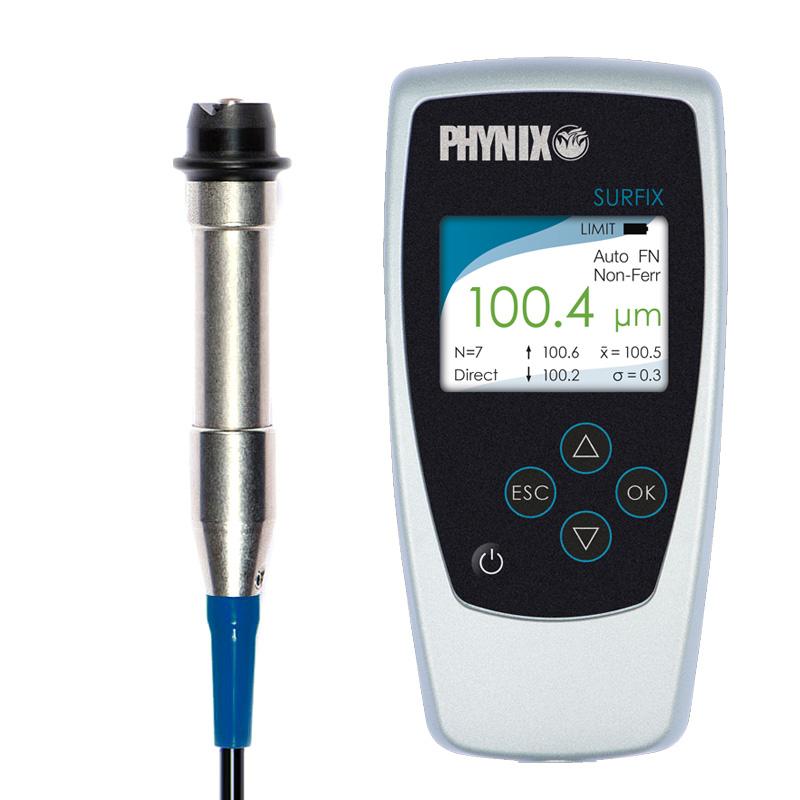

The PHYNIX Surfix SX-F1.5 Coating thickness gauge is a professional measurement coating thickness device with a colourful graphical display that supports multilingual operation (including English, German, French, Italian, Spanish, Turkish, Czech and Chinese). The device has built-in memory to store up to 2,000 measurements, is connected to a computer via a USB 2.0 interface, and is accompanied by the PHYNIX.connect data transfer program to transfer measurements to Excel. The Surfix SX model can connect to all Probes in the PHYNIX Probe program for maximum flexibility, while the Surfix EX model is equipped with a fixed standard Probe for well-defined measurement tasks and is more cost-effective.
Features
1. High resolution color graphics display
2. USB interface
3. Automatic identification of basic materials
4. Data storage can store up to 2,000 measurements
5. Online statistics function
6. Intuitive menu guidance
7. High temperature surface measurement up to 150 ° C or 300 ° C (optional)
8. Manufacturer Test Certificate
9.2 year warranty
10. Innovative and user-friendly measurement technology
Principle
The Coating thickness gauge uses the magnetic Induction measurement principle to detect coating thickness with Probe. The device automatically identifies the base material and provides accurate Film thickness readings with a resolution of 0.1μm.
Applications
Eletroplating industry, painting industry, automotive industry, chemical industry, aeronautical engineering, shipbuilding industry, research laboratories and universities, workshops, consultants and appraisers
Standards
DIN、ISO、ASTM、BS
Steps
1. Connect the computer through the USB 2.0 interface
2. Use the PHYNIX.connect program to transfer measurements to Excel
3. Follow the menu instructions
4. Automatic identification of base materials for measurement
Notice
• Minimum measurement surface is 10x10mm
• Minimum radius of curvature: convex 5mm, concave 50mm
• Thinnest substrate: iron-based 0.5mm, non-iron-based 0.05mm
• operating temperature: 0 ° C to + 50 ° C
• Protection Rating: IP52
• Probe contact temperature: standard - 15 ℃~ + 60 ℃; optional high temperature foot - 15 ℃~ + 150 ℃ or 300 ℃
• Minimum headroom height: 85mm
• Workpiece calibrating accuracy: +/- 3.0µm or 3% (whichever is greater)
• Foil calibrating accuracy: +/- 1μm or 1%
