Overview
The QNix 9500 Coating thickness gauge is a rugged, user-friendly High Accuracy measuring instrument designed for quality control during industrial corrosion protection, lame plating and surface preparation. The product is characterized by compliance with standards and technical parameters, and is equipped with newly developed computer software for efficient document management and test report generation. Each device is manufactured in Germany.
Features
1. High Accuracy measurement ensures effective mass results: High Accuracy measurement in the whole range, high repeatability of measurement results, Probe internal temperature compensation, to ensure the measurement accuracy on curved surfaces and small workpieces, easy calibration on rough, smooth and curved substrates

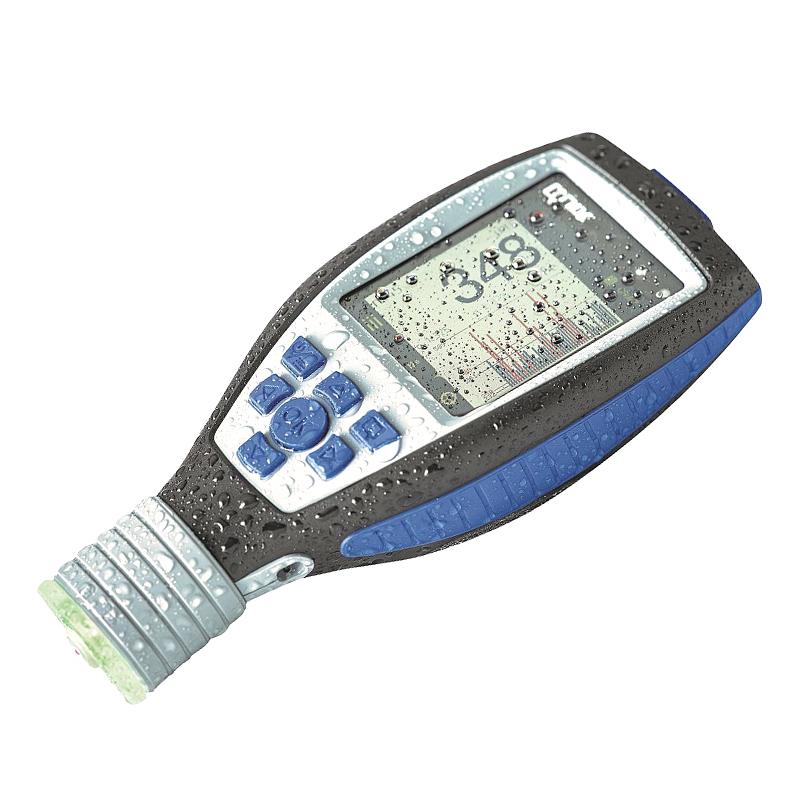

2. Solid and durable protection for long-term use under harsh conditions: containing fiberglass, composed of 5 components in accordance with IP64, waterproof and light-proof, three-layer shock protection, LCD window glass scratch-proof, chemical-proof (H6 level), operating temperature -20 ℃ -70 ℃, stainless steel with dust-proof film Probe

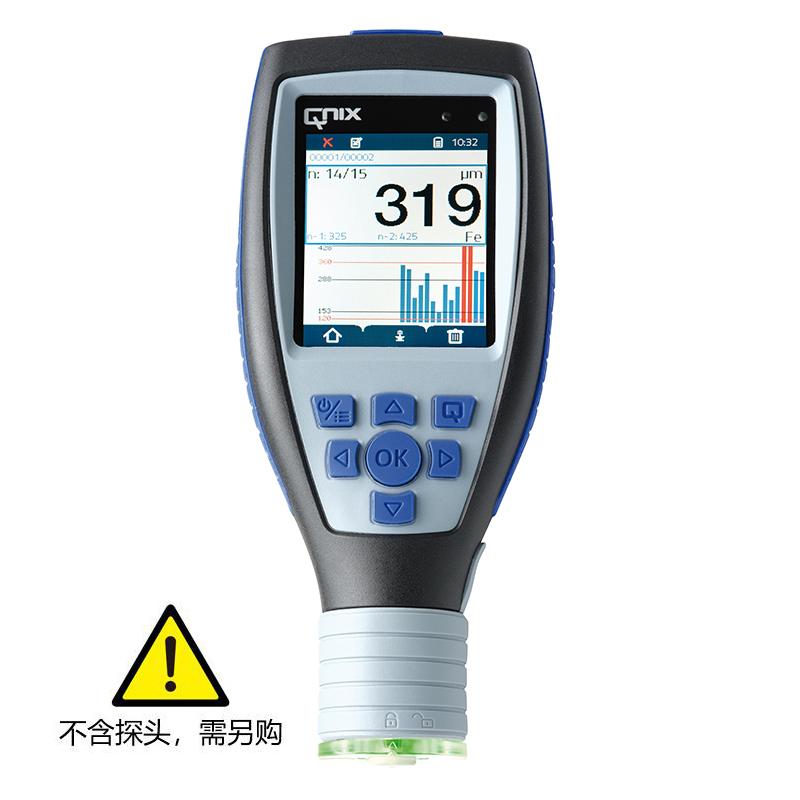

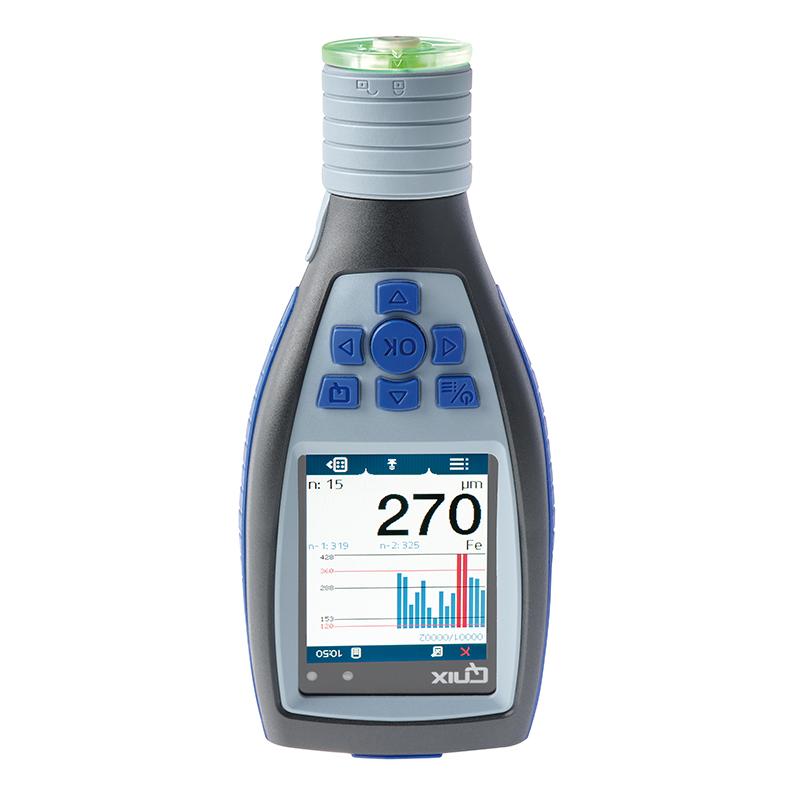

3. Using ergonomic design to save time and can be used quickly and continuously without fatigue: over-limit indication, LED lamp displayed directly on LCD and Probe, highlight 24-inch LCD, can be viewed at 70 ° angle, can automatically or manually adjust the LCD luminance in sunlight to a good effect display, large size touch button and low weight medium, flip display 0 °, 90 °, 180 °, 270 °

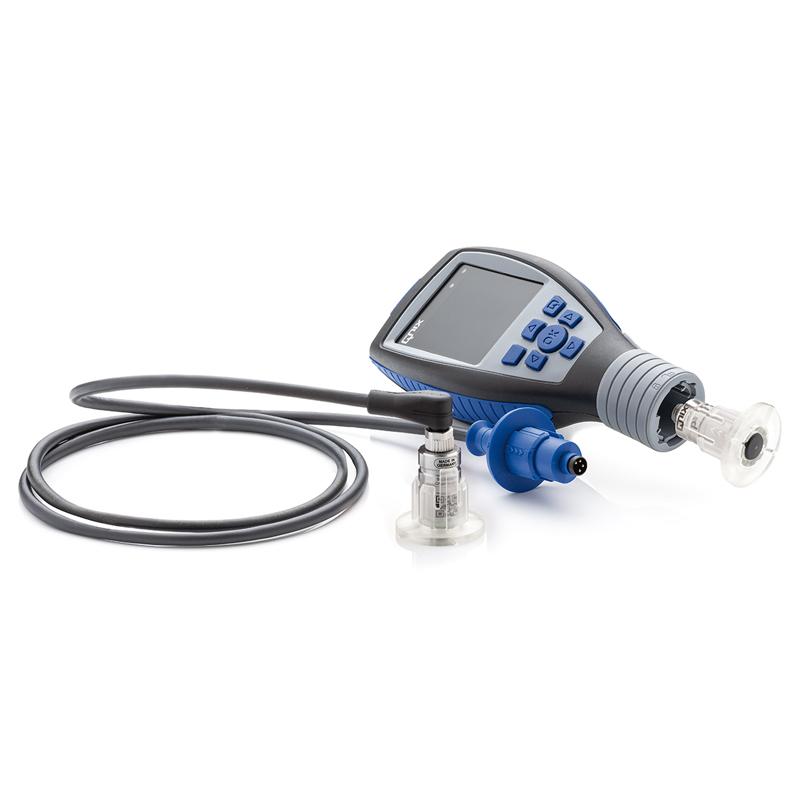

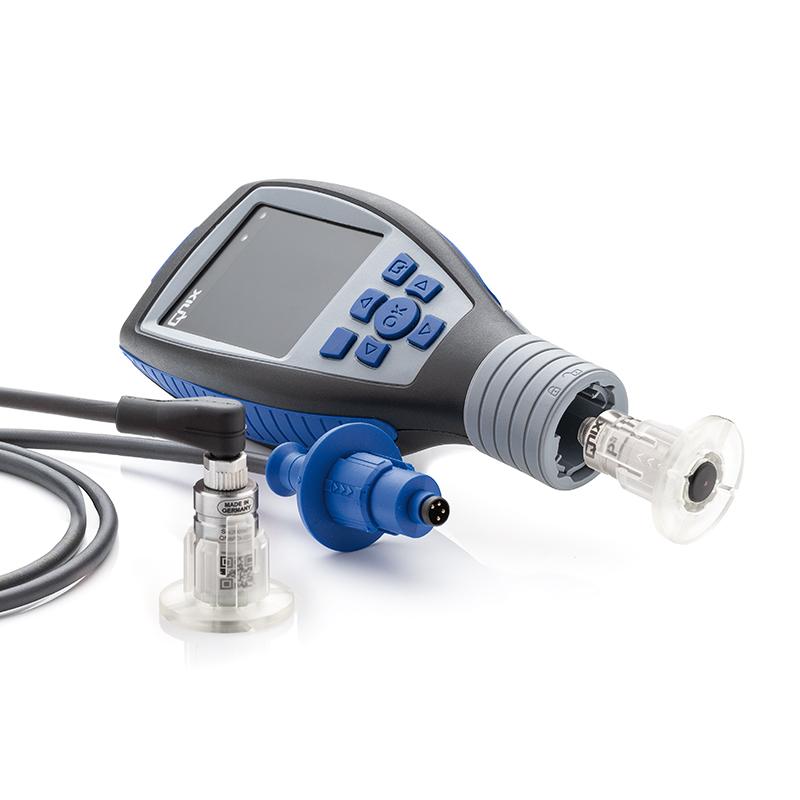

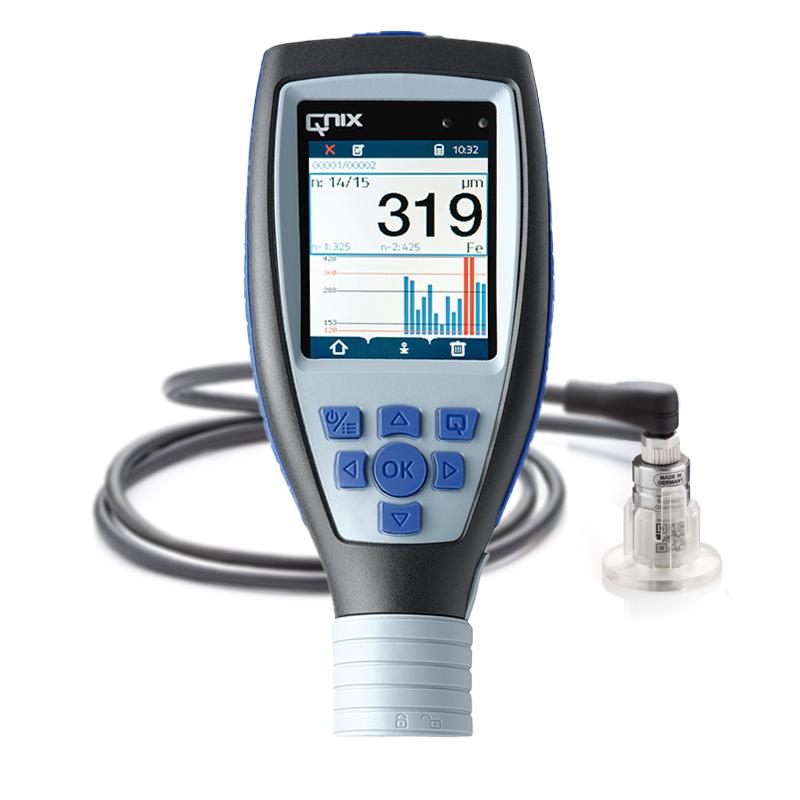

4. Flexibility and scalability: The host can be adapted to Fe (iron-based), NFe (non-iron-based), Fe/NFe (iron-based/non-iron-based) dual-purpose Probe, the host can be adapted to other types of Probe, both integrated Probe and split Probe, fast and convenient plug-and-play replacement Probe, fast adaptation to meet different needs
5. Easy-to-understand user-friendly interface, intuitive operation saves time and money: simple calibration for standard use, host and computer software are guided by intuitive menus, three-step reports, custom buttons, fast and direct single operation, standard pre-configuration
Principle
The QNix 9500 Coating thickness gauge uses magnetic Induction and eddy Current measurement principles, depending on the type of Probe connected. The instrument supports multiple calibrate modes including zero calibrate, 1 point calibrate, and 2 point calibrate, as well as multiple measurement modes such as manual matrix selection, automatic matrix selection, dual matrix combination measurement, and continuous measurement.
Applications
Industrial corrosion protection, lame plating, surface preparation
Standards
DIN EN ISO 2808、DIN 50981、DIN 50984、ISO 2178、BS 5411 (3 & 11)、BS 3900-C5、ASTM B 499、ISO 2360、ASTM D 1400、ASTM D 1186、ASTM D 7091
Steps
1. Connection Adaptation Probe (Iron-based, Non-Iron-based or Dual-use Probe)
2. To calibrate: select zero calibrate, 1 point calibrate or 2 point calibrate mode
3. Select the measurement mode: manually select the matrix, automatically select the matrix, double-matrix combined measurement or continuous measurement
4. Start measurement, the instrument automatically displays Film thickness reading
5. Connect the computer through the USB interface and use the software to generate a test report
Notice
• Ensure that the Probe type matches the matrix material (iron-based, non-iron-based, or dual-purpose)
• Confirm substrate surface condition (rough, smooth or curved) before calibrating and measurement
• Avoid use in environments beyond the operation temperature range (-20 ° C to 70 ° C)
• Regularly check the battery status to ensure measurement accuracy
• Make sure the plug and play operation is correct when replacing the Probe
• Clean Probe dust film after use to maintain accuracy
