Overview

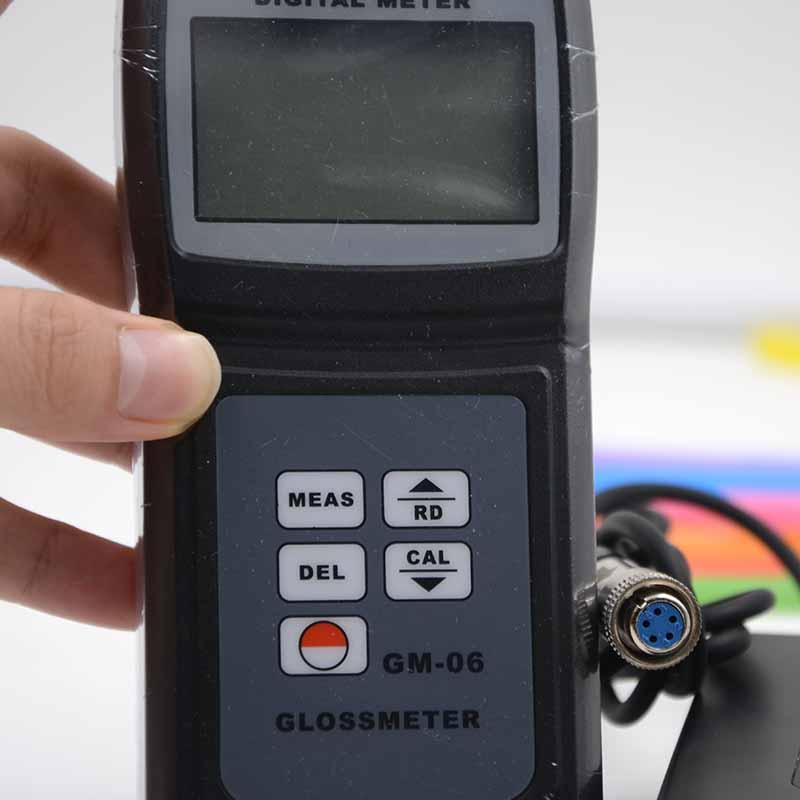

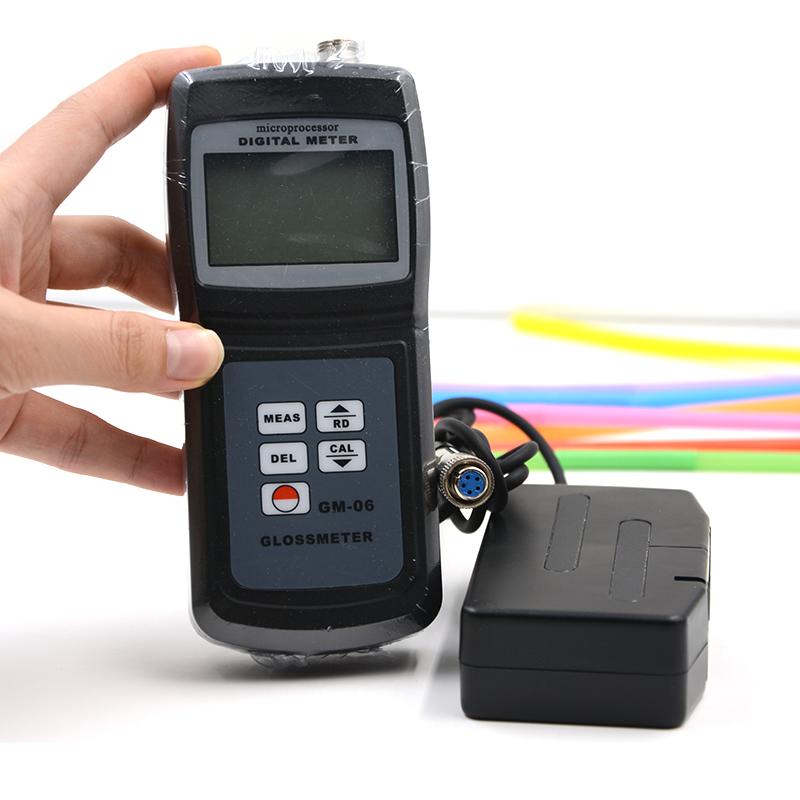

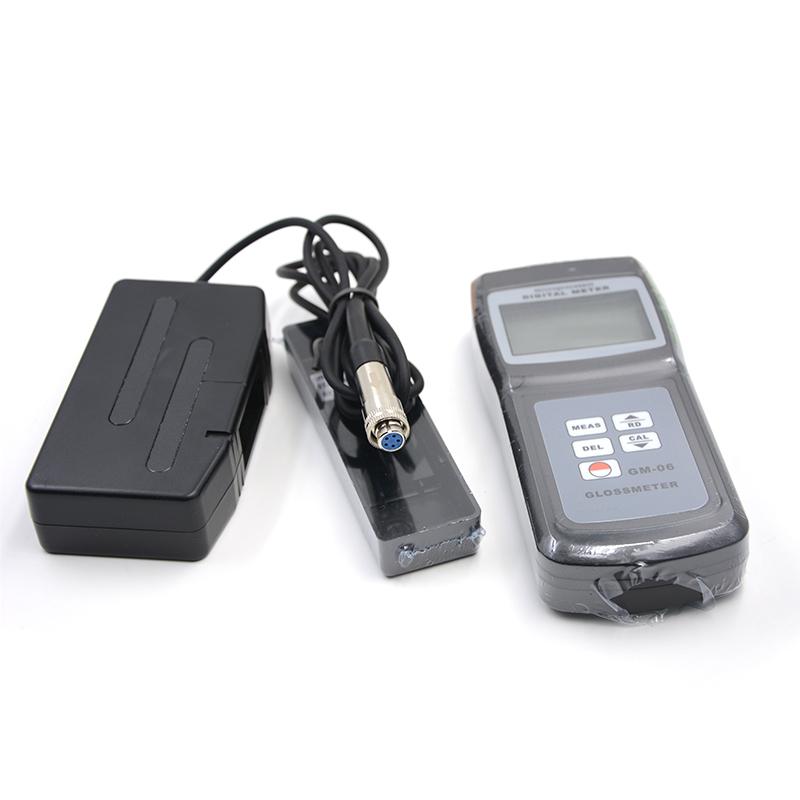

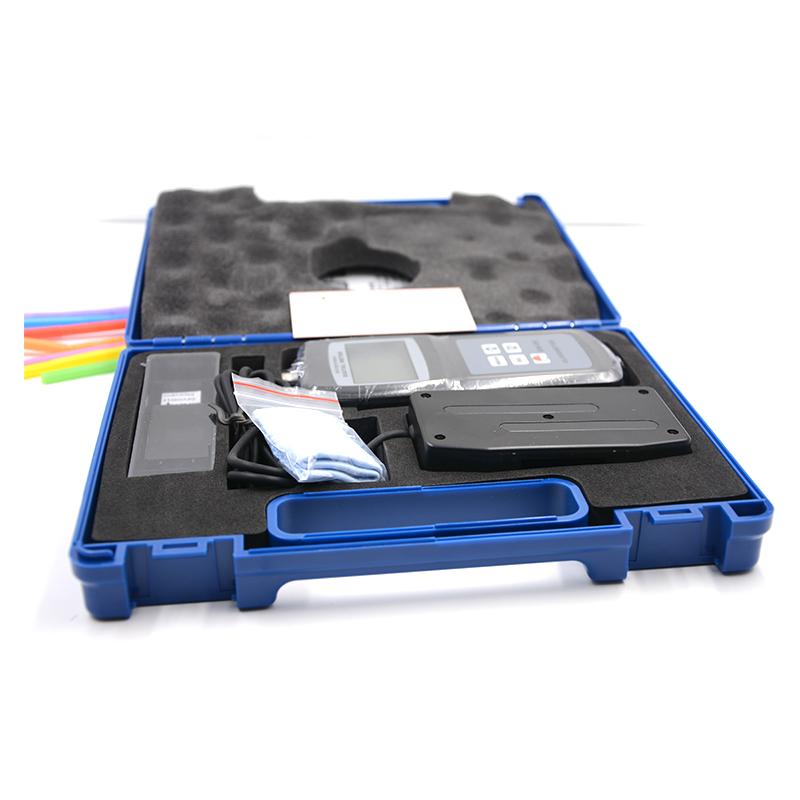

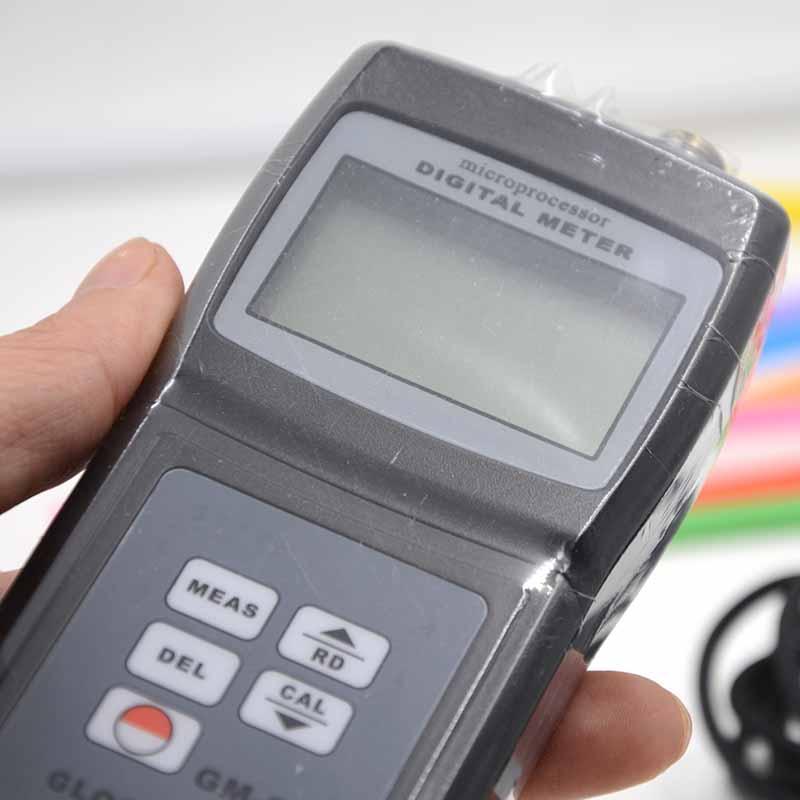

The LANDTEK GM-06 glossmeter is a precision and lightweight Portable measuring instrument for quality control and inspection of various surface Glossiness. It is intelligently designed to support Automatic calibration and fast measurement, and can communicate with a PC via USB, RS-232 or Bluetooth.
Features
1. Precision and lightweight shape, easy to carry
2. Automatic calibration without manual adjustment
3. Intelligent design, fast measurement
4. Accurate measurement, Repeatability
254 sets of data can be stored
6. Backlit display, easy to use in dark rays of light environment
7. Use "USB data cable output" and "RS-232 data cable output" to communicate with PC
8. Provide Bluetooth data output selection
Principle
The Glossmeter GM-06 emits rays of light to the measured surface through 60 ° Measurement Angles, and calculates the Glossiness value according to the reflected light intensity. Measurement range is 0~ 200GU. The instrument uses intelligent processing to ensure measurement accuracy and Repeatability, and supports Data storage and output.
Applications
Maintenance of floors, quality control of surface cleaning, gloss measurement of stones and tiles, inspection of paint sprays, quality control of paints, inks and polished metal surfaces, protective layers of paints, wax films, automotive body paints, inspection of plastic molds, detergents, scrubbers, masonry, evaluation of building exteriors
Standards
ASTM D523、ASTM D1455、ASTM C346、ASTM C584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB 8807
Steps
1. Install 4 AA batteries
2. Turn on the instrument and the backlit display will light up.
3. Automatic calibration without manual adjustment
4. Align the measurement port with the measured surface for measurement
5. Read the Glossiness value on the display
6. Data is automatically stored and can be output to PC via USB, RS-232 or Bluetooth
Notice
* Operating temperature range is 0~ 40 ℃, avoid using in environments beyond this range
* The relative humidity should be less than 85% RH to prevent the instrument from getting wet
* Measuring Area is an elliptical shape with a size of 7 * 14mm to ensure alignment with the measured area
* The instrument weight is 190g (excluding battery), pay attention to handle with care when carrying
* Turn off the power in time after use to save battery power
